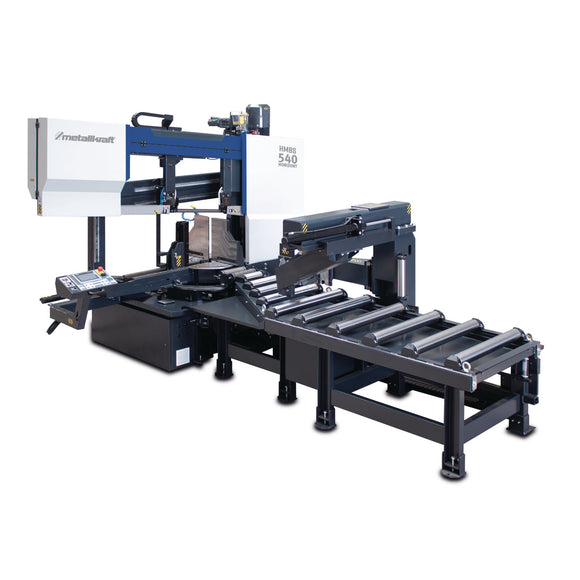

Horizontal metal band saw HMBS.
- Two-column guided horizontal saw for sawing solid bars and bar profiles
- Siemens S7- control system with wide range of functions and operation via large 7" touch display

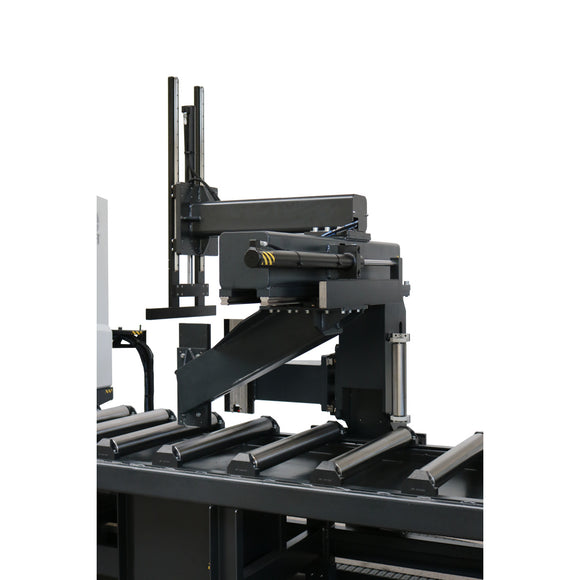

- With mm material transporter as standard -> frequency-controlled feed via circulating spindle and servomotor
- Material library with preset sawing parameters and characteristic curves
- Cutting movement via rotating spindle and servo motor
- With ARP (automatic cutting feed control) -> Automatic saw blade feed depending on the material resistance. Feed speed is constantly adapted to the current cutting load. ARP enables shorter work processes and a longer service life for the saw bands.
- Automatic positioning after entering the desired angle
- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency inverter
- For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- .
