Swivel bending machine MBM 1250

€4.907,70 EUR (€3.990,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3770125 Barcode: 4036351040781

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Sold Out
WhatsApp
Description Features Delivery contents Shipping
Swivel bending machine MBM.
  • Revolutionary simple, very fast and comfortable operation
  • Compact and space-saving
  • With practical shelves for all individual segments and bending rails
  • Ideal for bending aluminum, copper, steel, stainless steel, etc.
  • Precise bend angle adjustment up to 170 °
  • Powerful electromagnetic system for optimum bending results
  • The clamping across the entire width guarantees a clean bend
  • Very high bending capacity
  • The main pressure is on the upper cheek, not on the machine
  • The unique centerless hinges ensure precise power transmission at the bending point
  • Backgauge, segmented upper jaw and foot pedal are standard

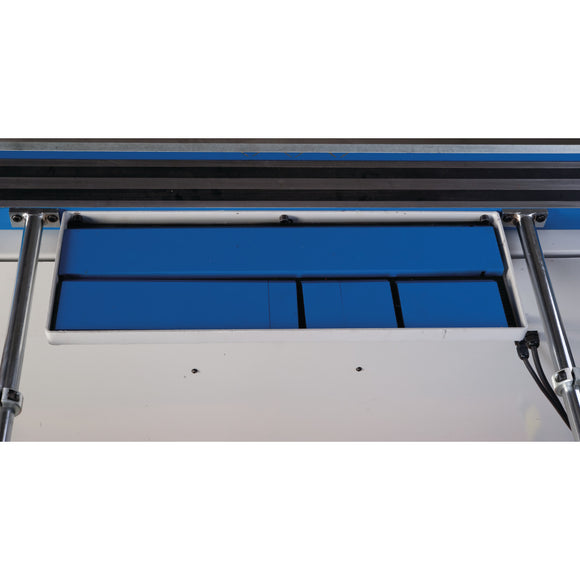

With practical shelves for all individual segments and bending rails


Extremely fast and easy operation - in just a few steps you can turn your sheets into the desired shape without great effort


Step 1:

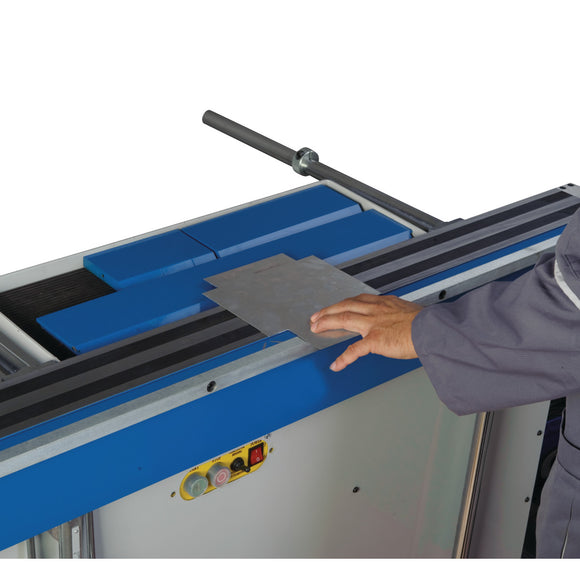

  • Place the workpiece on the magnetic conductors and adjust using the bending edge

Step 2:

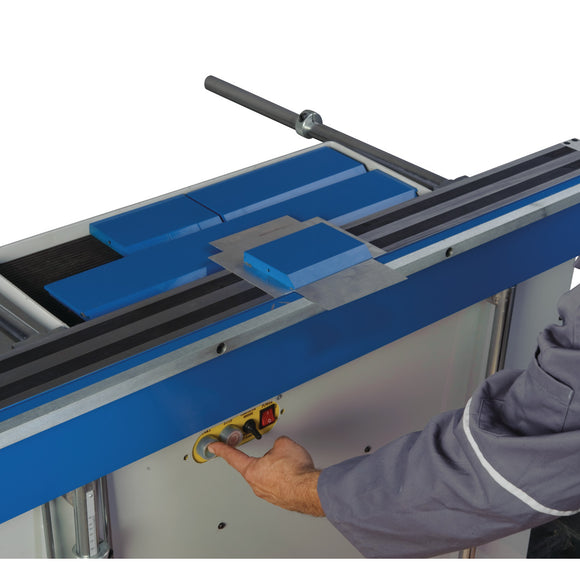

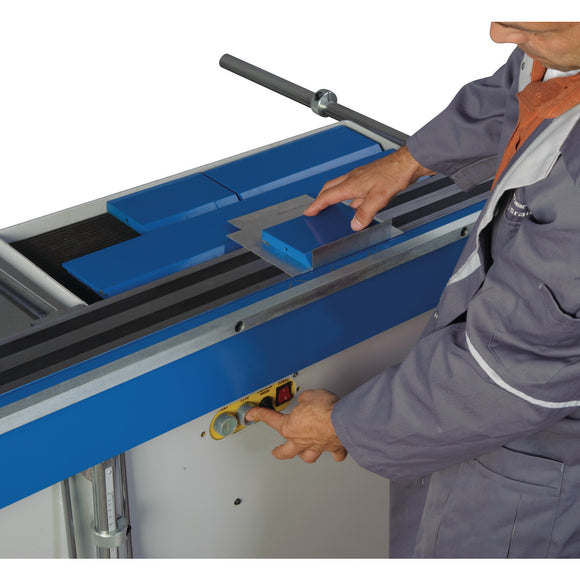

  • Choose the right bending segment, place it on the workpiece and activate the magnet

Step 3:

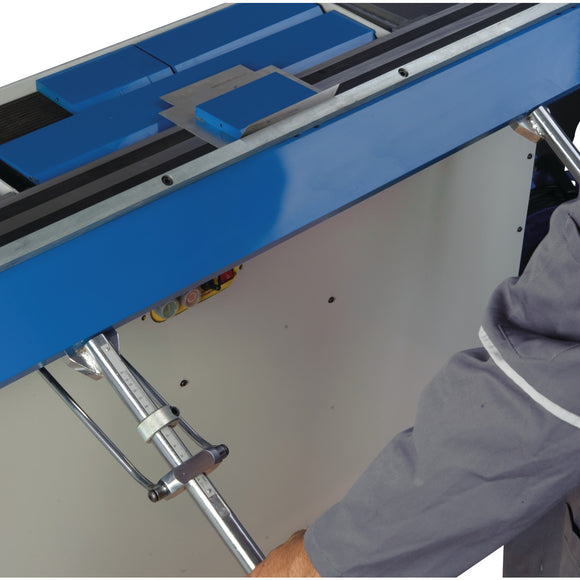

  • At the bend stop you can set the exact bending angle. Perform the bending process

The conversion for further bending operations is done in a few steps.



Note: Do not use the machine with pacemakers




    .
    • Bending capacity (700 N/mm²) 1.0 mm
    • Bending capacity (aluminium) 1.6 mm
    • Bending capacity 400 N/mm² 1.6 / 1.2 mm
    • Bending capacity 700 N/mm² with cheek widening at max. working width 0.9 mm
    • Bending capacity aluminium with cheek widening at max. working width 1.2 mm
    • Bending capacity capacity copper, zinc, brass with cheek widening at max. working width 1.2 mm
    • Bending capacity copper, zinc, brass 1.6 mm
    • Bending motor output 70 kW
    • Frequency 50 Hz
    • Height 390 mm
    • Holding pressure 6 t
    • Length 1500 mm
    • Max. working width 1250 mm
    • Net weight 150 kg
    • Segmentation 25-40-50-70-140-280-700-1250 mm
    • Supply voltage 230 V
    • Width 410 mm
    • Folding angle stop
    • Widening bending cheek
    • back gauge
    • Sharp bending rail
    • Scharfbie rail narrow
    • segmented upper cheek
    • slotted bending rail
    • 7 bending segments: 25 - 40 - 50 - 70 - 140 - 280 - 700 - 1250 mm
    • pedal

    Shipping to Ireland & UK.

    To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

    Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

    €10 is via DPD and the €60 is via pallet express.

    Free shipping on all online orders over €100.00

    You can also pick up an item for free from our Longford store.

    All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

    We expect delivery to be within 2 to 5 working days thereafter.

    Standard Delivery will be by Courier service for orders up to 30kg in weight.
