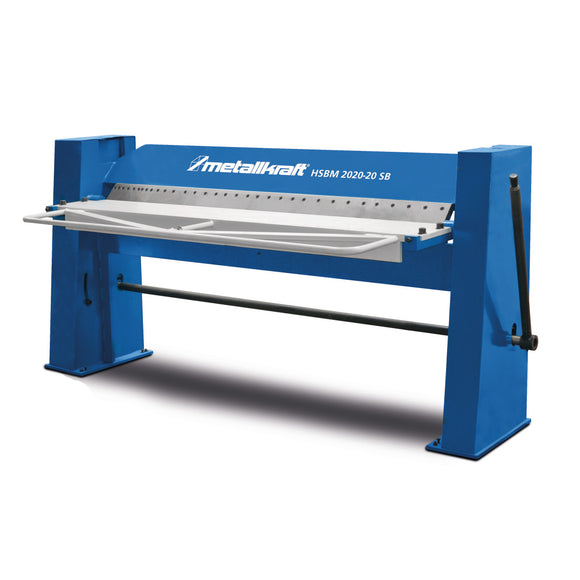

Manual swing bending machine HSBM 2020-20 SB media thumbnails
Manual swing bending machine HSBM 2020-20 SB-1
Manual swing bending machine HSBM 2020-20 SB-2

Manual swing bending machine HSBM 2020-20 SB

€7.195,50 EUR (€5.850,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3772920 Barcode: 4036351057598

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

Manual swing bending machine HSBM SB.
  • Easy handling
  • segmented upper tools
  • Swivel bending function with secure clamping of the workpiece by preloading the upper beam
  • heavy, compact welded construction
  • For easy bending with exact adjustment of the bending angle by means of a stop with scale
  • particularly low maintenance

segment breakdown


  • --400

Note on technical data:


Sheet thickness max. : Performance data based on material with tensile strength 400N / mm²; Bending capacity VA: factor 0. 75; Bending capacity Alu: factor 1,2; Hardened top tools are required to bend stainless steel



.
  • Bending capacity (700 N/mm²) 1.25 mm
  • Bending capacity (aluminium) 2.4 mm
  • Bending capacity 400 N/mm² 2.0 mm
  • Height 1500 mm
  • Length 2500 mm
  • Max. bending angle 135 °
  • Max. passageway between top + bottom beam 120 mm
  • Max. working width 2020 mm
  • Net weight 1020 kg
  • Width 710 mm
