Press brake WPK 1250-32-1
Press brake WPK 1250-32-2
Press brake WPK 1250-32-3
Press brake WPK 1250-32-4
Press brake WPK 1250-32-5
Press brake WPK 1250-32-6
Press brake WPK 1250-32-7

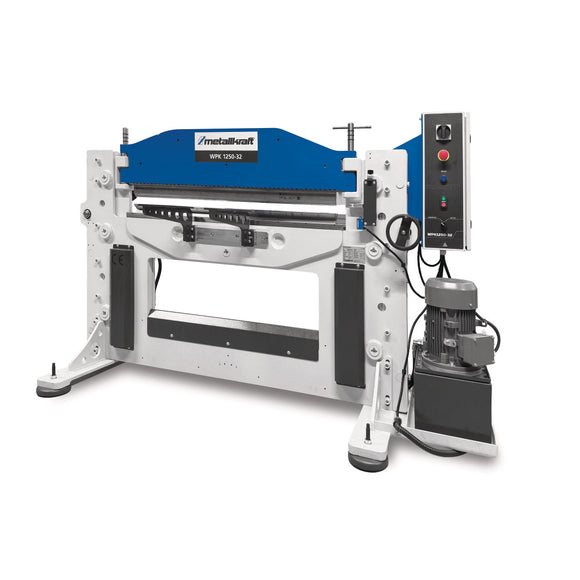

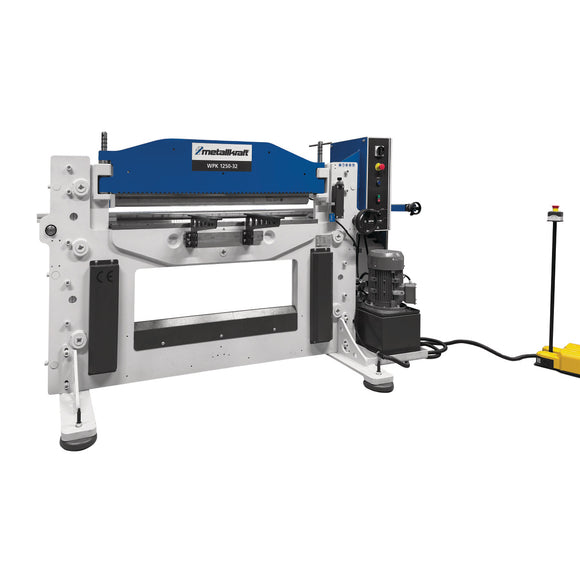

Press brake WPK 1250-32

€21.523,77 EUR (€17.499,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3778125 Barcode: 4036351302179

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Press brake WPK.
  • Hydraulic press drive via two cylinders
  • Equal working pressure
  • Exchangeable punches and bending prisms
  • Setting of the parameters press force, length of bends and speed during operation
  • Closed workpieces can be bent at a certain angle to give them the desired shape can be processed by opening the upper bar
  • Adjustment of the backgauge via handwheel with counter
  • Tools must be ordered separately depending on the application and don't come with the machine


.
  • Bending length 1250 mm
  • Bending speed 9 mm/s
  • Daylight 80 mm
  • Distance between columns 200 mm
  • Frequency 50 Hz
  • Height 1410 mm
  • Length 2300 mm
  • Motor power 3 kW
  • Net weight 1400 kg
  • Number backgauge fingers 2 St
  • Number of support arms 2 St
  • Oil tank capacity 35 l
  • Pressing force 32 t
  • Retraction 11 mm/s
  • Stroke 130 mm
  • Supply voltage 400 V
  • Table height 855 mm
  • Table width 1280 mm
  • Width 1305 mm
  • X axis stroke 655 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Multi-V-Die 85° / B=60mm geteilt V=16/22/35/50mm / L=415mmm sekt.

Multi-V-Die 85° / B=60mm geteilt V=16/22/35/50mm / L=415mmm sekt.

Metallkraft

Enquire
Multi-V-Die 85° / B=60mm V=16/22/35/50mm / L=835mmm

Multi-V-Die 85° / B=60mm V=16/22/35/50mm / L=835mmm

Metallkraft

Enquire
Punch LG 85° H=66.6mm / R0.8 / L=415mm

Punch LG 85° H=66.6mm / R0.8 / L=415mm

Metallkraft

€109,00 EUR
Enquire

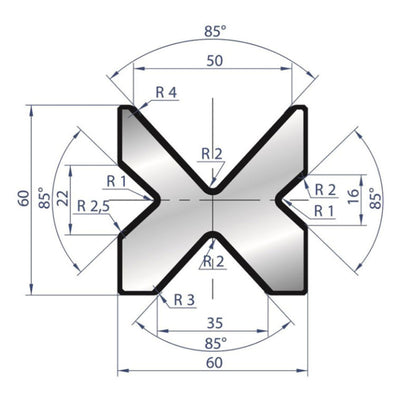

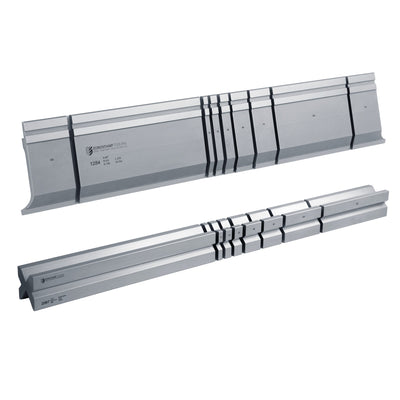

Starter tool kit for WPK 1250-32 Starter tool kit for WPK 1250-32 - 0
