Semi-motoric swivel bending machine MSBM 2020-25 S media thumbnails
Semi-motoric swivel bending machine MSBM 2020-25 S-1
Semi-motoric swivel bending machine MSBM 2020-25 S-2
Semi-motoric swivel bending machine MSBM 2020-25 S-3
Semi-motoric swivel bending machine MSBM 2020-25 S-4

Semi-motoric swivel bending machine MSBM 2020-25 S

€22.496,70 EUR (€18.290,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3779041 Barcode: 4036351046691

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out

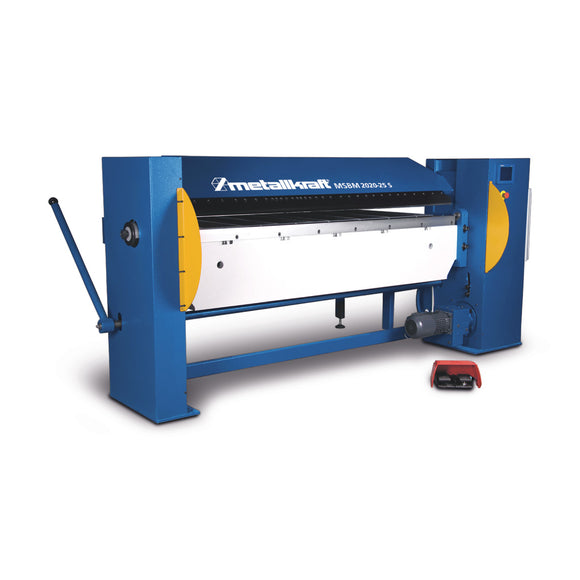

Semi-motoric swivel bending machine MSBM S.
  • Semi-motor version - manual operation of the upper cheek, bending process motorised
  • Designed for professional use
  • With foot operation
  • heavy, compact weldment
  • With continuous sharp bending rail

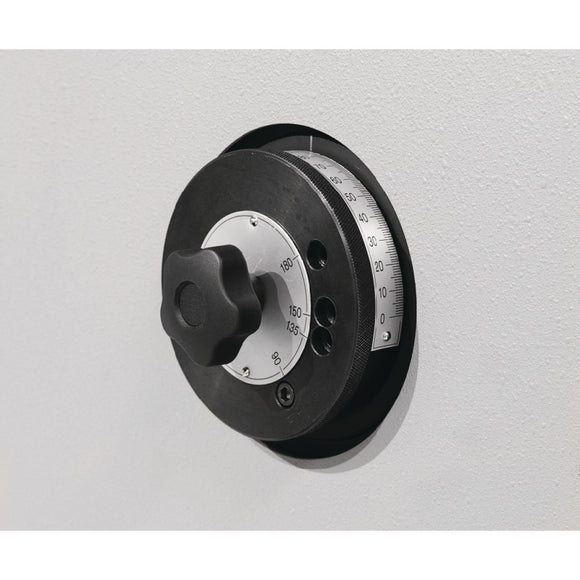

  • Standard with manual adjustment of the bending angle by means of nonius ring
  • Particularly low-maintenance
  • S-models with segmented top tools
  • SH models with high, segmented goat foot tools
  • Hardening of standard tools available on request: sharp bending rail and bending strip hardened, segmented tools and bending strip hardened, segmented goat foot tools and bending strip hardened
  • Further swivel bending machines available on request

Quality

.
  • Bending capacity (700 N/mm²) 1.75 mm
  • Bending capacity (aluminium) 3 mm
  • Bending capacity 400 N/mm² 2.5 mm
  • Bending motor output 1.1 kW
  • Frequency 50 Hz
  • Height 1290 mm
  • Length 2975 mm
  • Max. passageway between top + bottom beam 140 mm
  • Max. working width 2020 mm
  • Net weight 1450 kg
  • Supply voltage 400 V
  • Width 560 mm
