Motorized swing bending machine MSBM 2020-15 PRO SH-1
Motorized swing bending machine MSBM 2020-15 PRO SH-2
Motorized swing bending machine MSBM 2020-15 PRO SH-3
Motorized swing bending machine MSBM 2020-15 PRO SH-4

Motorized swing bending machine MSBM 2020-15 PRO SH

€24.046,50 EUR (€19.550,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3779081 Barcode: 4036351046813

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

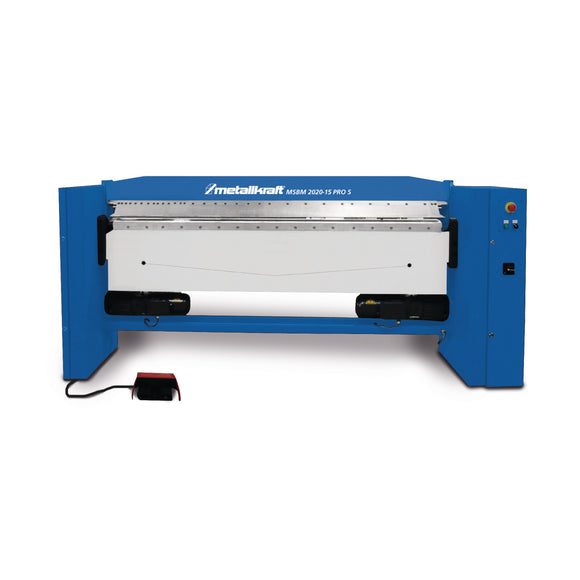

Motorized swing bending machine MSBM PRO SH.
  • Foot operated
  • Heavy, compact welded construction
  • Powerful drive by Lenzemotors
  • With continuous sharp bending bar
  • In series with manual adjustment of the bending angle
  • Especially low-maintenance
  • The workpiece is clamped by a motorized mechanism
  • S-models with segmented upper tools
  • SH-models with high, segmented casting foot tools
Available on request
  • Other models
  • Standard tools hardened
  • Hardened sharp bending bar and bending bar
  • Segmented tools and hardened bending bar
  • Segmented casting foot tools and bending bar hardened


.
  • Beam motor intput 0.37 kW
  • Bending capacity (aluminium) 1.8 mm
  • Bending capacity 400 N/mm² 1.5 mm
  • Bending motor input 0.75 kW
  • Explanation bending capacity 400 N/mm² Bending capacity VA: factor 0.65; bending capacity aluminum: factor 1.4; optional tool required for bending VA
  • Height 1100 mm
  • Length 2650 mm
  • Max. passageway between top + bottom beam 60 mm
  • Max. working width 2020 mm
  • Net weight 1050 kg
  • Width 700 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
