Motorized swing bending machine MSBM 2020-80 PRO

€81.856,50 EUR (€66.550,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3779400 Barcode: 4036351057673

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Motorized swing bending machine MSBM PRO.
  • Very heavy and robust welded construction
  • Dynamic drive of the bending beam by means of two frequency-controlled motors with gears
  • Over cheek clamping via trapezoidal thread
  • High-quality Lenze motors
  • Continuous sharp bending rail
  • Tools suitable for bending stainless steel

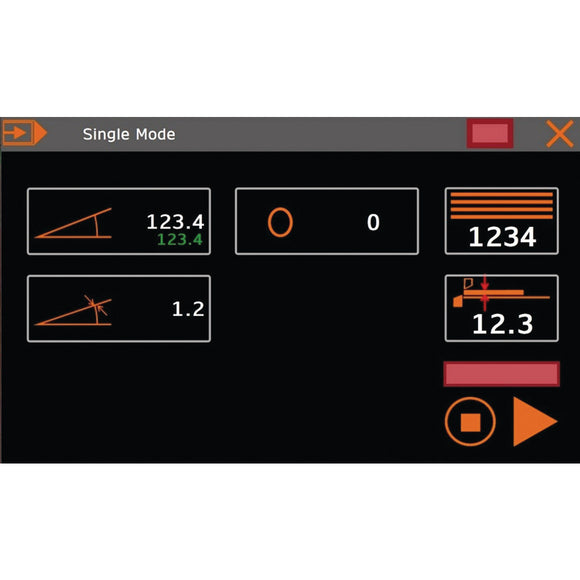

  • Bending angle adjustment via touchscreen NC control system
  • Sheet thickness adjustment manually at the bending beam
  • Manual crowning device of the bending beam
  • Operation via double foot pedal with emergency stop function
  • Clean motor-driven machine without hydraulics
  • SH models with segmented, high goat foot tools
  • DUO models with continuous sharp-bending rail and high, segmented goat foot tools
Quality

.
  • Beam motor output 4.0 kW
  • Bending capacity (700 N/mm²) 6 mm
  • Bending capacity (aluminium) 9.6 mm
  • Bending capacity 400 N/mm² 8.0 mm
  • Bending motor output 4.0 kW
  • Height 1750 mm
  • Length 3480 mm
  • Max. passageway between top + bottom beam 350 mm
  • Max. working width 2020 mm
  • Net weight 5380 kg
  • Number of motors 2
  • Width 1500 mm
