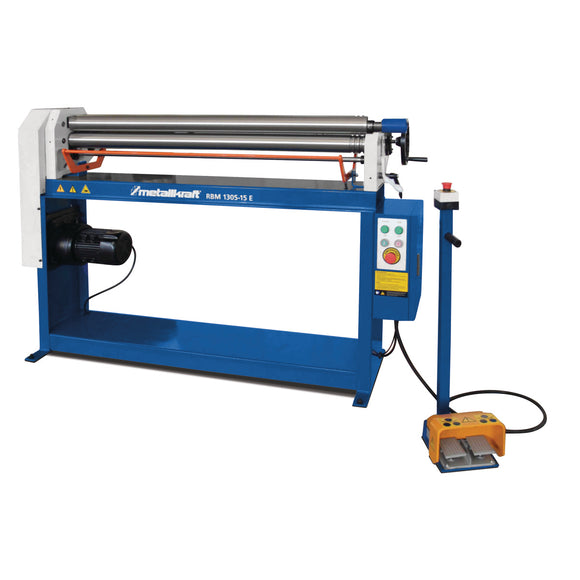

Motorized plate rolling machine RBM 1305-15 E-1
Motorized plate rolling machine RBM 1305-15 E-2
Motorized plate rolling machine RBM 1305-15 E-3

Motorized plate rolling machine RBM 1305-15 E

€3.442,77 EUR (€2.799,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3781305 Barcode: 4036351260066

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Motorized plate rolling machine RBM E.
  • For producing all round shaped parts such as pipes, cylinders, etc.
  • Roller drive via hand crank or motorized on E models
  • Heavy and stable cast iron construction
  • Asymmetric 3-roll system for easy pre-bending

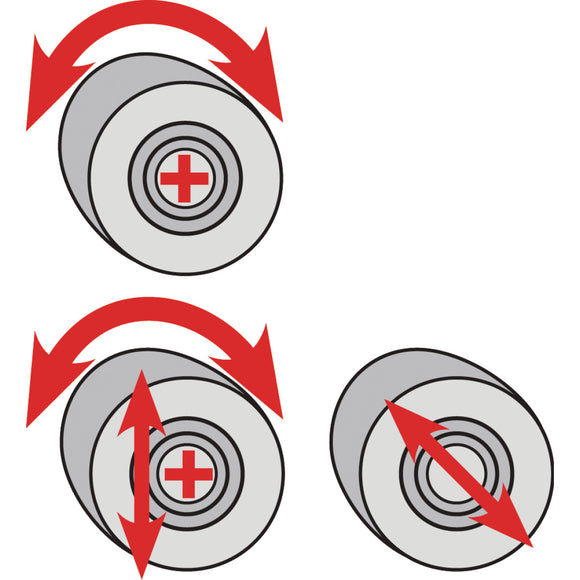

  • The upper roller is adjustable, thus easy removal of the finished workpiece
  • Swiveling top roller
  • Easily adjustable upper and lower roller
  • Possibility of conical bending
  • With safety devices
  • Standard wire insert groove on bottom and back roller
  • The foot control leaves both hands free for the material supply


.
  • Frequency 50 Hz
  • Height 1110 mm
  • Length 1650 mm
  • Max. bending performance aluminium 1.8 mm
  • Max. bending performance in stainless steel 1.1 mm
  • Max. bending performance in steel 400 N/mm²² 1.5 mm
  • Max. taper bending performance in aluminium 0.9 mm
  • Max. taper bending performance in stainless steel 0.6 mm
  • Max. taper bending performance in steel 400 N/mm² 0.8 mm
  • Max. working width 1270 mm
  • Min. bending diameter 110 mm
  • Motor power 0.75 kW
  • Net weight 318 kg
  • Protection class drive motor IP 44
  • Roller speed 4 m/min
  • Supply voltage 400 V
  • Top roller diameter 75 mm
  • Total current draw 2.5 A
  • Width 1020 mm
