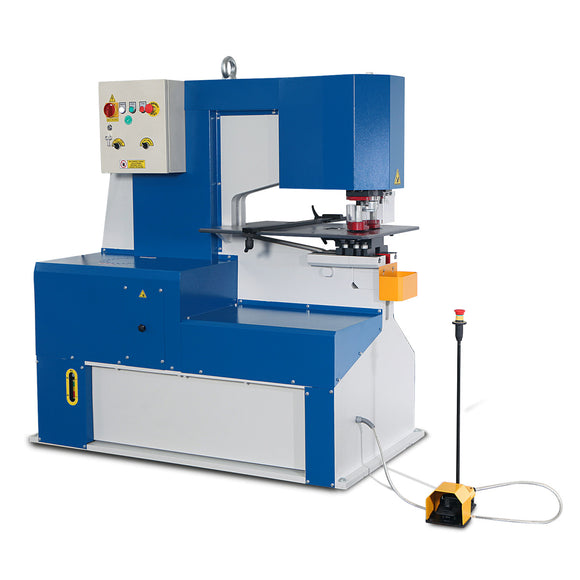

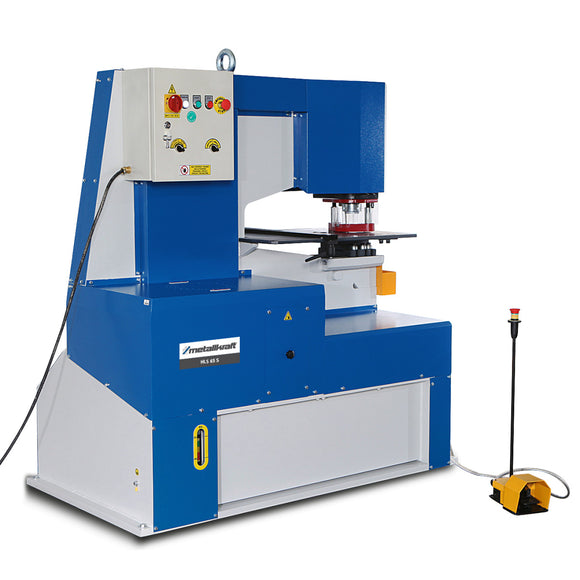

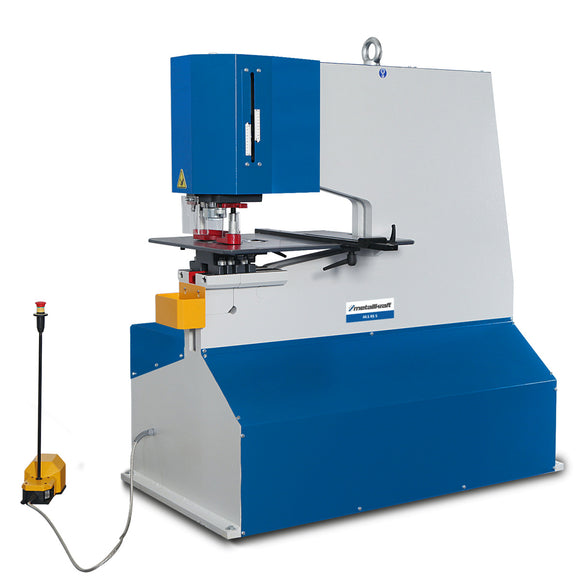

Hydraulic punch HLS 65 S

• Frequency 50 Hz
• Height 1800 mm
• Length 1600 mm
• Max. punching station diameter x sheet thickness (steel 400 N/mm²) 57 x 10 mm
• Motor power 5.5 kW
• Net weight 2440 kg
• Punching force 65 t
• Punching station diameter x max. sheet thickness (steel 400 N/mm²) 26 x 20 mm
• Punching station max. lift stroke 55 mm
• Punching station reach 625 mm
• Punching station stroke count 22 /min
• Punching station working height 950 mm
• Sheet metal bending max. width x thickness (accessory) 500 x 3 mm
• Supply voltage 400 V
• Width 900 mm

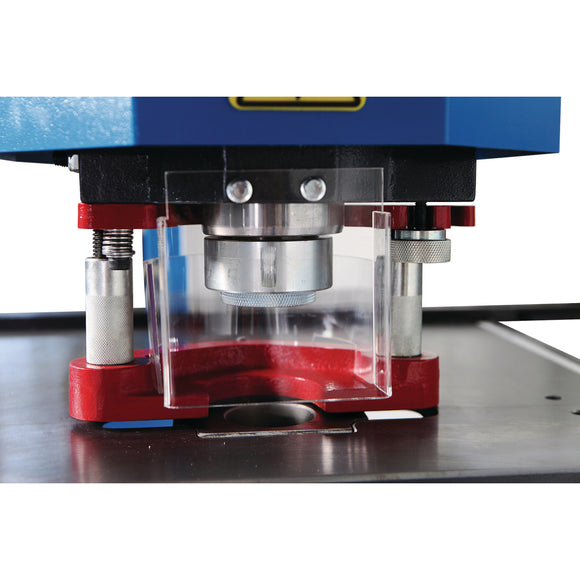

• Stamp holder with bayonet lock
• Stamp and Die Reductions No. 1, No. 2, No. 3, No. 30, No. 45 and No. 60

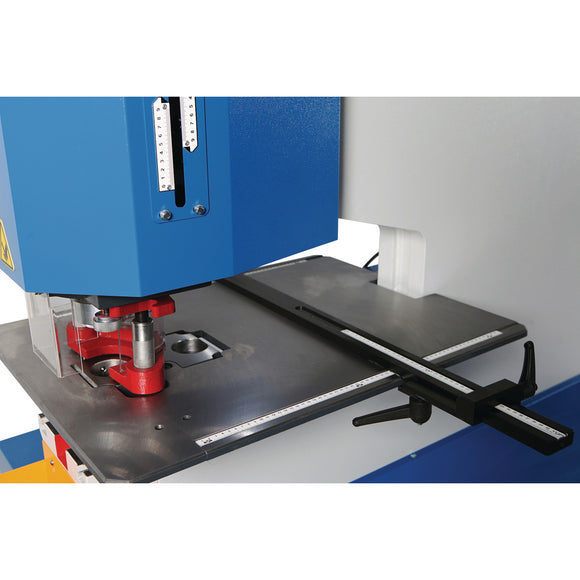

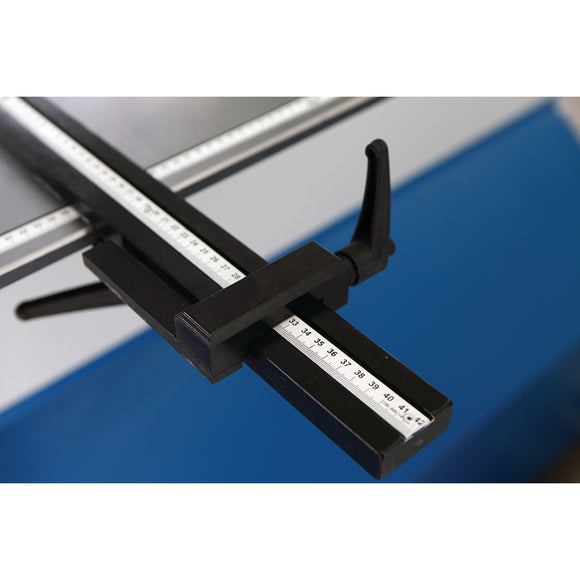

• Stop with scale
• pedal
• hook wrench
• hydraulic oil
