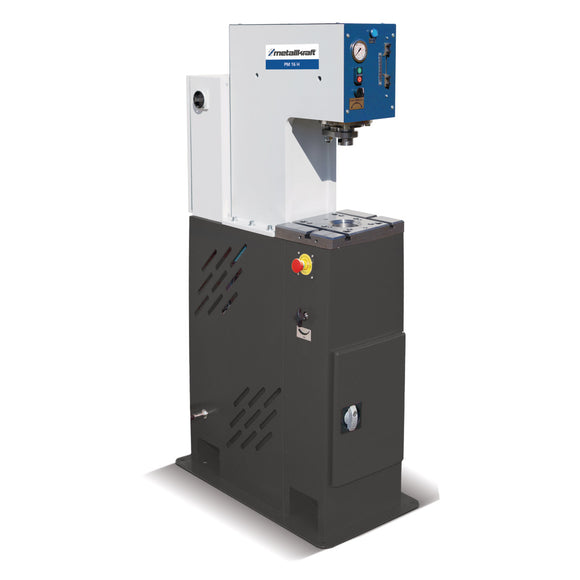

Punching machine PM 16 H

€9.752,67 EUR (€7.929,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3818316 Barcode: 4036351301745

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping
Punching machine PM 16 H.
  • Variable forward and return travel limitation by adjustable inductive limit switches
  • Use of a wide variety of tools possible due to the variable forward and return travel limitation
  • Simple attachment of tools and devices to the work table via M12 holes and T-slots
  • Interchangeable tables make it possiblemade it possible to machine workpieces of different sizes
  • actuation of the lifting cylinder via foot switch
  • pressure adjustment via hydraulic valve
  • Recess in the worktable for cutting waste
  • Storage possibility for punching and cutting tools in the substructure
  • .
  • Frequency 50 Hz
  • Height 1430 mm
  • Length 800 mm
  • Max. punching station diameter x sheet thickness (steel 400 N/mm²) 30 x 4 mm
  • Motor power 2,2 kW
  • Net weight 420 kg
  • Punching force 16 t
  • Punching station diameter x max. sheet thickness (steel 400 N/mm²) 12 x 10 mm
  • Punching station max. lift stroke 70 mm
  • Supply voltage 400 V
  • Width 450 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Punch and die for Ø 8.5 mm Punch and die for Ø 8.5 mm - 0

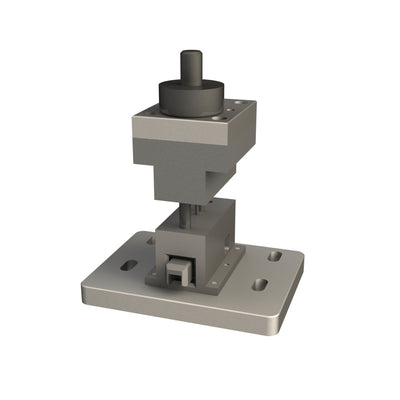

Punch and die for Ø 8.5 mm

Metallkraft

€202,95 EUR
Enquire
Workplace mat 3040 x 640 mm Workplace mat 3040 x 640 mm - 0

Workplace mat 3040 x 640 mm

Unicraft

€441,57 EUR
Enquire
Multi-V-Die 85° / B=60mm geteilt V=16/22/35/50mm / L=415mmm sekt.

Multi-V-Die 85° / B=60mm geteilt V=16/22/35/50mm / L=415mmm sekt.

Metallkraft

Enquire
Punch and die holder for edge bending Punch and die holder for edge bending - 0

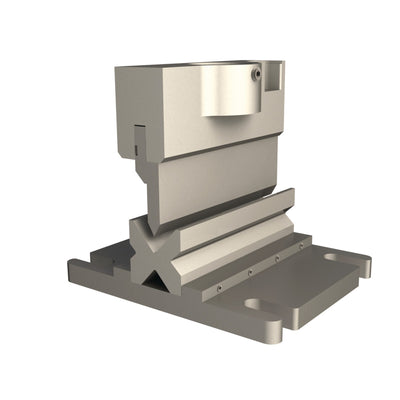

Punch and die holder for edge bending

Metallkraft

€768,75 EUR
Enquire
Punch tool for pipe notching Ø 42.4 mm / 1 1/4" Punch tool for pipe notching Ø 42.4 mm / 1 1/4" - 0

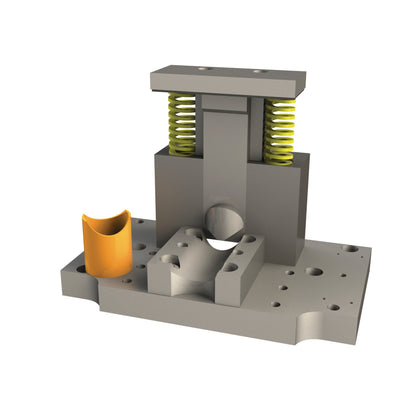

Punch tool for pipe notching Ø 42.4 mm / 1 1/4"
