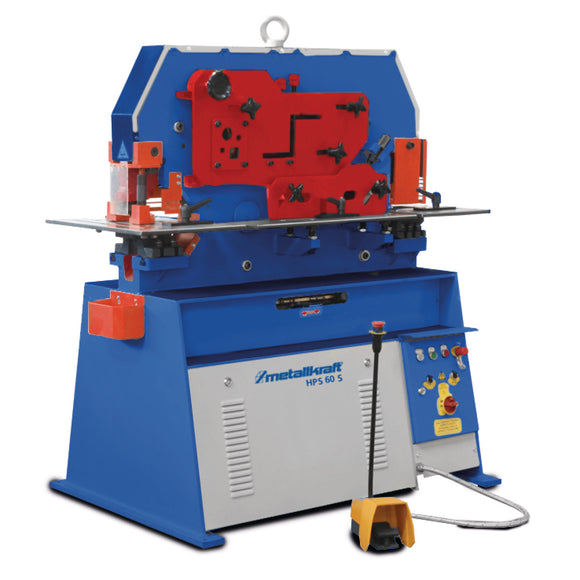

Hydraulic sectional steel shears / punching machine HPS 60 S

• Angled steel shears cutting capacity 45° L section 70 x 10 mm
• Angled steel shears cutting capacity 90° L section 120 x 120 x 12 mm
• Angled steel shears cutting capacity T section (accessory) 80 x 9 mm
• Angled steel shears working height 1155 mm
• Flat steel shears angled cut 45° max. leg length x max. thickness 80 x 10 mm
• Flat steel shears knife length 317 mm
• Flat steel shears material max. width x thickness 300 x 15 mm
• Flat steel shears material width x max. thickness 200 x 20 mm
• Flat steel shears working height 955 mm
• Frequency 50 Hz
• Height 1780 mm
• Length 1520 mm
• Max. notching depth 100 mm
• Max. notching width 42 mm
• Max. punching station diameter x sheet thickness (steel 400 N/mm²) 38 x 11 mm
• Motor power 4 kW
• Net weight 1440 kg
• Notching station max. material thickness 10 mm
• Punching force 60 t
• Punching station diameter x max. sheet thickness (steel 400 N/mm²) 28 x 15 mm
• Punching station max. lift stroke 60 mm
• Punching station reach 220 mm
• Punching station stroke count 25 /min
• Punching station working height 955 mm
• Steel bar shears capacity round material 40 mm
• Steel bar shears capacity square material 40 mm
• Supply voltage 400 V
• V notching tools (accessory) 100 x 100 x 10 mm
• Width 950 mm

• punching station
• Flat shear
• Angle Shear
• Section steel shears with round and square blade
• notching
• Stamp holder with bayonet lock
• Stamp and Die Reductions # 1, # 2, # 3, # 30, # 45, # 60
• Punch, flat steel scissors and notch with adjustable stops
• hook wrench
• pedal
• hydraulic oil
