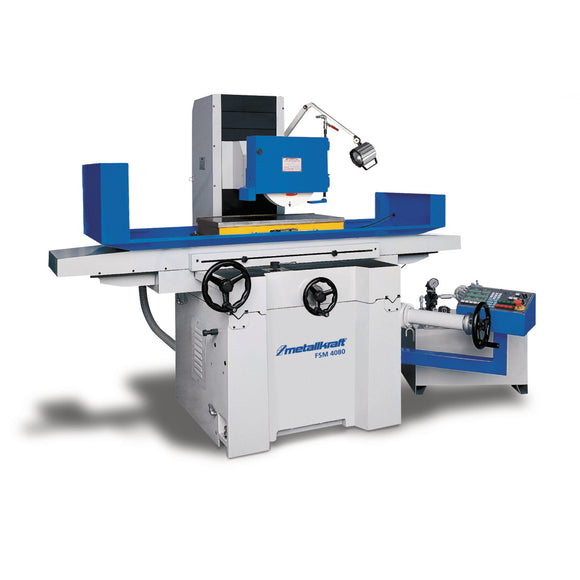

Precision surface grinding machine FSM 4080 Storage equipment

• Alignment feet ✔

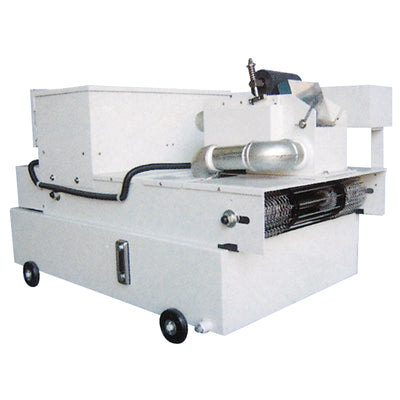

• Coolant device ✔
• Frequency 50 Hz
• Grinding disc drill hole 127 mm
• Grinding disc outer diameter 406 mm
• Grinding disc width 50 mm
• Height 1900 mm
• Hydraulic pump motor output 1,5 kW
• Length 3450 mm
• Max. clearance spindle to surface grinding table 550 mm
• Motor power 3.75 kW
• Net weight 3308 kg
• Parallel hone device ✔
• Spindle speed 1450 min¯¹
• Supply voltage 400 V
• Surface grinding table clamping surface length 800 mm
• Surface grinding table clamping surface width 400 mm
• Surface grinding table max. weight workpiece 400 kg
• Width 2050 mm
• Work light Halogen working light according to IP65
• x axis travel speed 5 – 25 m/min

• Grinding wheel flange
• Grinding wheel
• Balancing mandrour
• Operating tool
