Vertical metal bandsaw VMBS 2013 I E media thumbnails
Vertical metal bandsaw VMBS 2013 I E-1
Vertical metal bandsaw VMBS 2013 I E-2

Vertical metal bandsaw VMBS 2013 I E

€17.330,70 EUR (€14.090,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 3952014 Barcode: 4036351340751

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

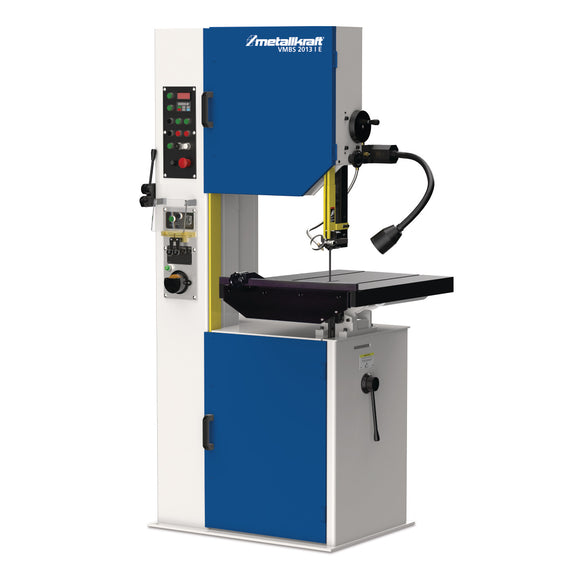

Vertical metal bandsaw VMBS I E.
  • Extremely stable construction, entire machine body made of steel
  • User-friendly operating concept
  • Speed infinitely variable via inverter - Greater ease of operation and no need to replace wearing parts such as V-belts
  • Combined micro-spray and blow-off device, for blowing off chips and lubricating the saw blade
  • Tiltable working table made of cast iron
  • Workplace lighting as standard
  • Equipped with motor brake
  • Belt tension and speed indicator
  • Integrated band welding unit with annealing, cutting and grinding device
  • Height adjustment of saw band guide by hand wheel
  • VMBS I E models with electric table feed


.
  • Frequency 50 Hz
  • Height 2030 mm
  • Length 1090 mm
  • Max. cutting height 330 mm
  • Max. saw band length 4040 mm
  • Max. table load 350 kg
  • Motor power 2.2 kW
  • Net weight 605 kg
  • Reach 508 mm
  • Saw band length 3950 mm
  • Saw band speed(s) 15 – 120; 190 – 1500 m/min
  • Saw band thickness 0,65 – 0,9 mm
  • Saw band welding device output 19 mm
  • Saw band width from to 13 – 27 mm
  • Sound pressure level 71.7 dB(A)
  • Supply voltage 400 V
  • Table length 600 mm
  • Table swivel range for mitre cuts 12 / 12 °
  • Table travel 300 mm
  • Table width 700 mm
  • Wheel diameter 515 mm
  • Width 780 mm
  • Working height 990 mm
  • Circle cutting device
  • Miter fence for angle cuts
  • Rip fence
  • Magnifying glass
