Hydraulic workshop press WPP 20-1
Hydraulic workshop press WPP 20-2
Hydraulic workshop press WPP 20-3
Hydraulic workshop press WPP 20-4

Hydraulic workshop press WPP 20

€1.560,87 EUR (€1.269,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 4001020 Barcode: 4036351045335

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

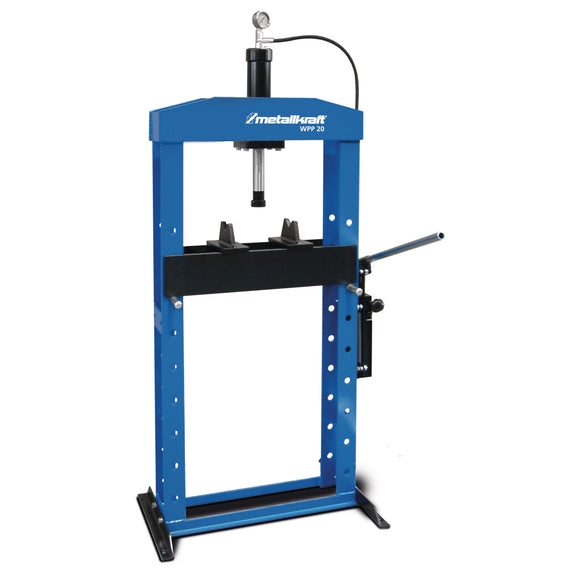

Hydraulic workshop press WPP 20.
  • For all repair and assembly work, e. : alignment of axles, beams, shafts, etc. ; pressing and pressing bearings, bolts and bushings; pressing and squeezing work; load tests and welding sample tests; and much more
  • Stable welded construction
  • Robust frame with perforation for the adjustment of the press table
  • Reliable, very precise hydraulic from European production
  • With chrome-plated cylinder pistons
  • Pressing pressure readable via manometer
  • With automatic return of the piston with safety valve to protect against overload
  • For processing flat material, pressing in bearings, bolts and the like, it is essential to use the optional perforated plates
  • Quality


.
  • Clear width 610 mm
  • Diameter piston head 56 mm
  • Diameter piston rod 45 mm
  • Frame depth 150 mm
  • Height 1900 mm
  • Length 950 mm
  • Max. installation height 1000 mm
  • Max. load on prism jaw 5 t
  • Net weight 140 kg
  • Piston stroke 160 mm
  • Piston travel 380 mm
  • Pressure force 20 t
  • Width 600 mm
  • 2-piece prism set for inserting round material

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Workplace mat 1840 x 640 mm Workplace mat 1840 x 640 mm - 0

Workplace mat 1840 x 640 mm

Unicraft

€244,77 EUR
Perforated plate LP-WPP15 / 20

Perforated plate LP-WPP15 / 20

Metallkraft

€113,04 EUR
Enquire
6-piece printing mandrel set with perforated plate WPP 20 6-piece printing mandrel set with perforated plate WPP 20 - 0

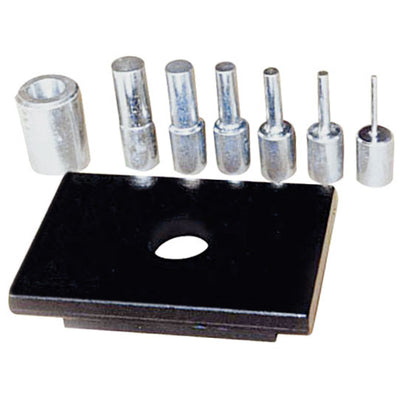

6-piece printing mandrel set with perforated plate WPP 20
