Fully hydraulic workshop press WPP 30 VH

• Clear height max. 863 mm
• Clear width 1066 mm
• Diameter cylinder 127 mm
• Diameter piston head 127 mm
• Diameter piston rod 63.5 mm
• Explanation pressure regulation Pressure regulation is only available for models with 50t pressure force or higher
• Frame depth 235 mm
• Frequency 50 Hz
• Height 1904 mm
• Hole spacing for table height adjustment 152 mm
• Length 1371 mm
• Length of piston nose 38.1 mm
• Lowering speed 6.1 mm/s
• Motor power 2,4 kW
• Motor speed 1440 min¯¹
• Net weight 727 kg
• Oil capacity (empty cylinder) 38 l
• Piston stroke 406 mm
• Piston travel 501 mm
• Press speed 6.1 mm/s
• Pressure force 30 t
• Return speed 8.2 mm/s
• Supply voltage 400 V
• Width 761 mm
• Width/depth of machine feet 761 mm

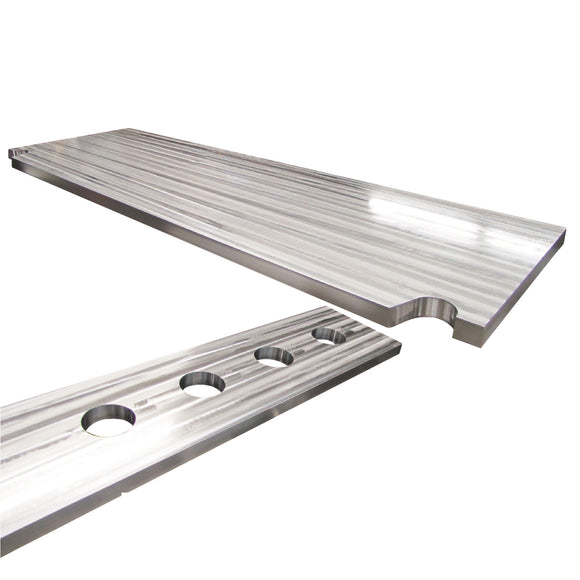

• Work table length 1066 mm
• Work table width 228 mm
