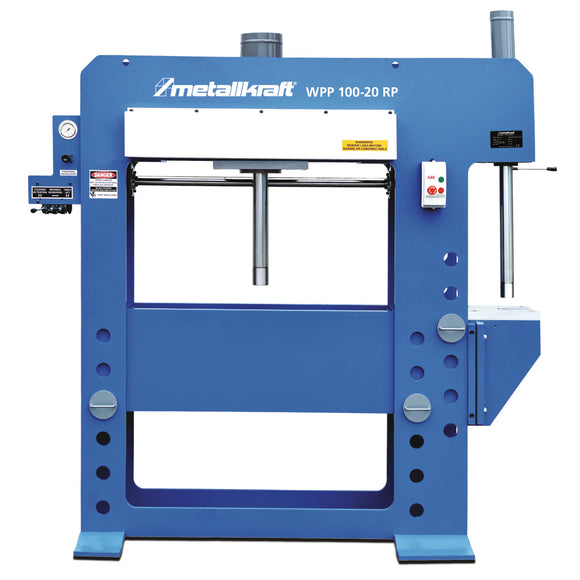

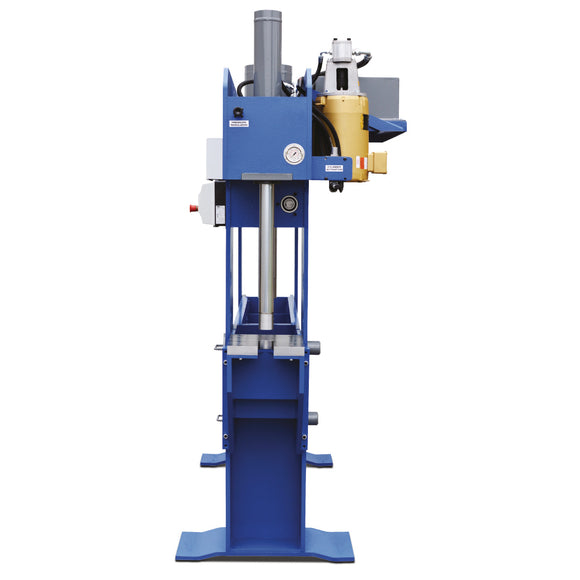

Fully hydraulic workshop press WPP 100-20 RP

• Clear height max. 964 mm
• Clear width 1218 mm
• Diameter cylinder 228 mm
• Diameter cylinder Broach 102 mm
• Diameter cylinder housing Broach 114 mm

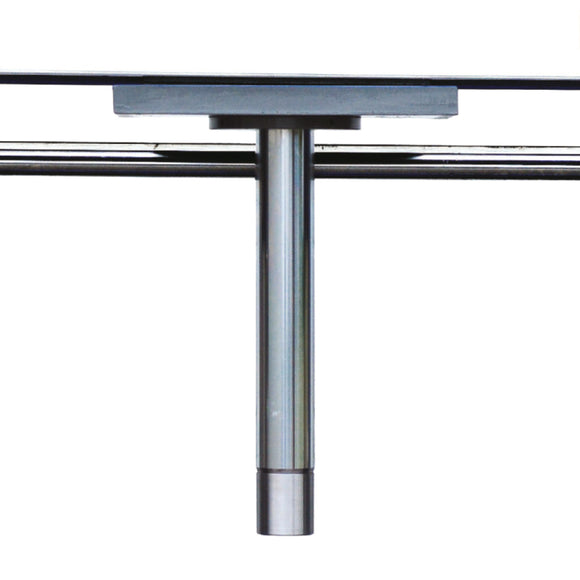

• Diameter piston rod 101.6 mm
• Diameter piston rod Broach 63.5 mm
• Frame depth 317 mm
• Frequency 50 Hz
• Height 2157 mm
• Hole spacing for table height adjustment 152 mm
• Hole spacing for table height adjustment Broach 152 mm
• Length 2081 mm
• Length of piston nose 63.5 mm
• Length of piston nose Broach 38.1 mm
• Lowering speed 6.7 mm/s
• Lowering speed Broach 10 mm/s

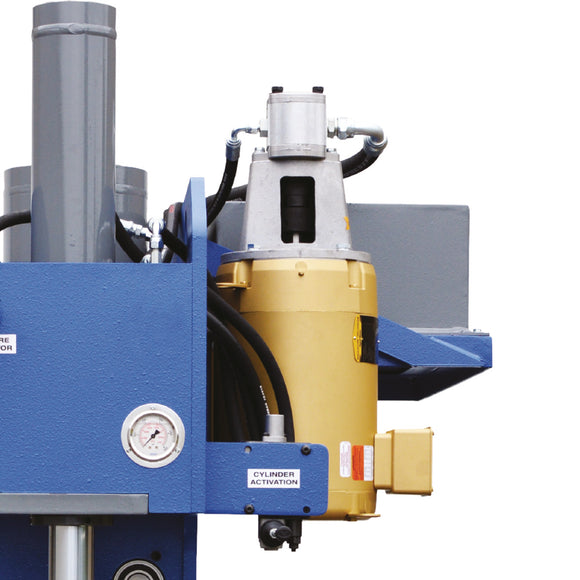

• Motor power 7,5 kW
• Motor speed 1465 min-1
• Net weight 1864 kg
• Oil capacity (empty cylinder) 56 l
• Piston stroke 406 mm
• Piston stroke Broach 508 mm
• Press speed 6.7 mm/s
• Press speed Broach 10 mm/s
• Pressure force 100 t
• Pressure force Broach 20 t
• Return speed 8.3 mm/s
• Return speed Broach 55.7 mm/s
• Supply voltage 400 V
• Width 812 mm
• Width/depth of machine feet 812 mm
• Work table length 1218 mm
• Work table length Broach 311 mm
• Work table width 311 mm
• Work table width Broach 330 mm
