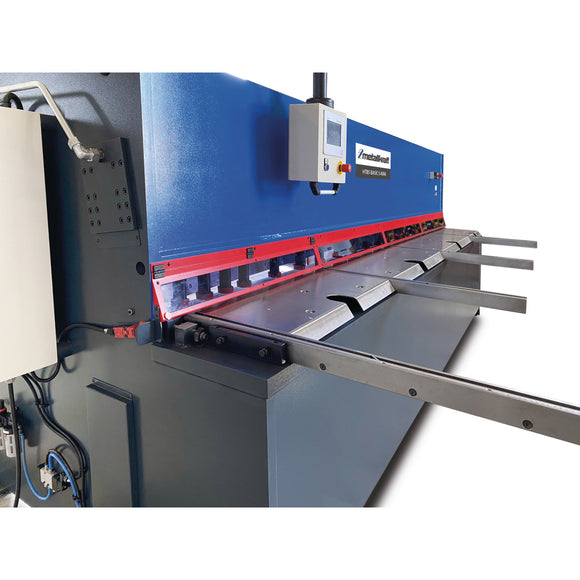

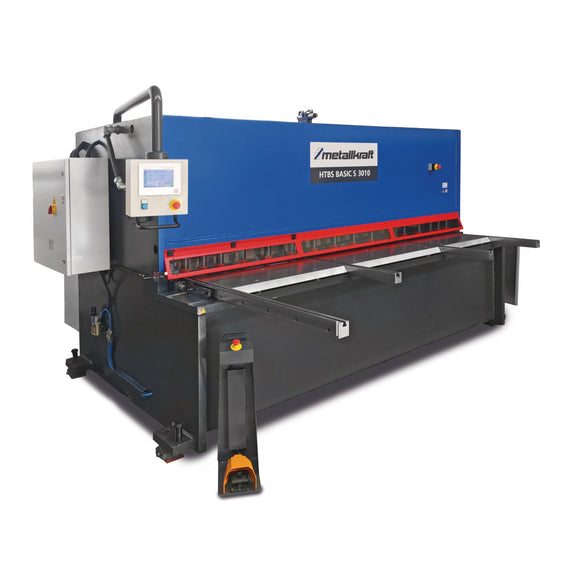

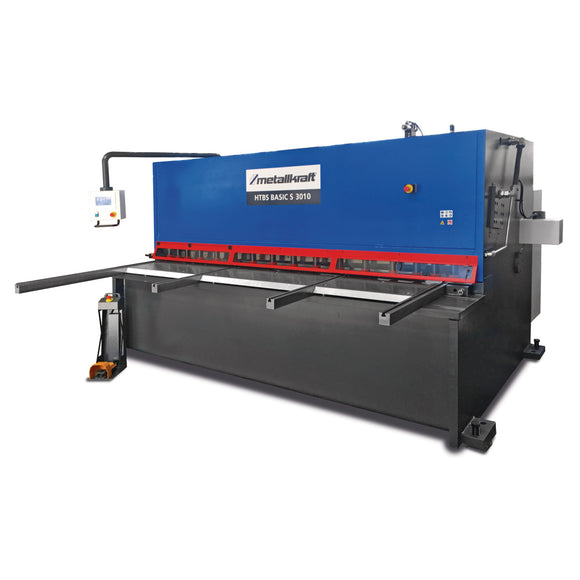

Hydraulic swing cut sheet metal shears HTBS BASIC S 3016

• Air consumption per cycle 30 l
• Cutting angle 2 °
• Cutting kerf adjustment max. 1,6 mm
• Cutting kerf adjustment min. 0,08 mm
• Cutting performance (400 N/mm²) 16 mm
• Cutting performance (700 N/mm²) 10 mm
• Frequency 50 Hz
• Height 2300 mm
• Length 4050 mm
• Max. strokes for full cutting length 10 /min

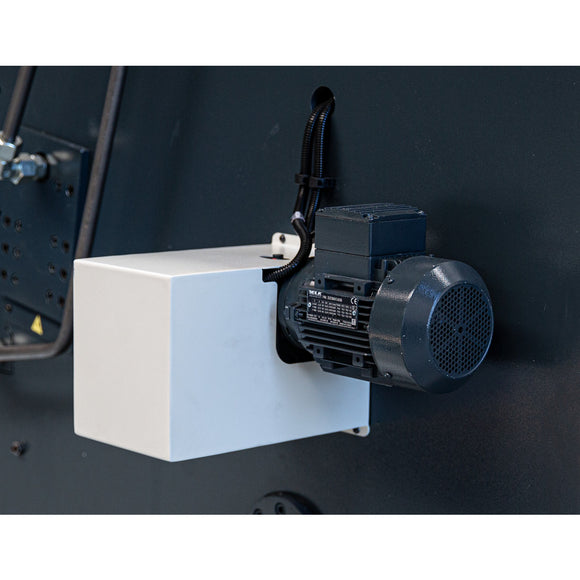

• Motor output rear stop 0,37 kW
• Motor power 37 kW
• Net weight 16100 kg
• Oil tank capacity 500 l
• Rear stop range 1000 mm
• Rear stop speed 120 mm/s
• Sheet support arms 2 St
• Side stop length 1500 mm
• Supply voltage 400 V
• Table depth 600 mm
• Table height 900 mm
• Table length 3500 mm
• Width 3650 mm
• Working width 3060 mm
