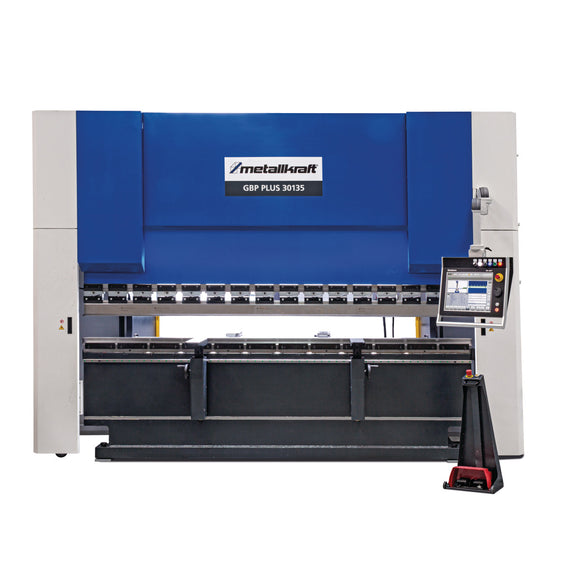

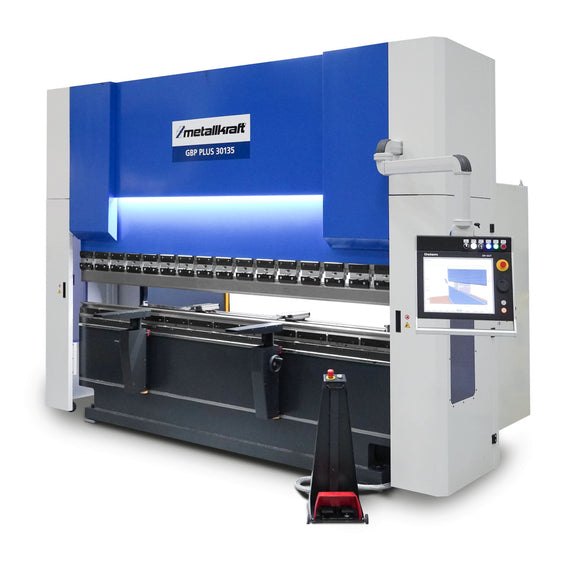

CNC-controlled, hydraulic press brake GBP PLUS.

Standard version:

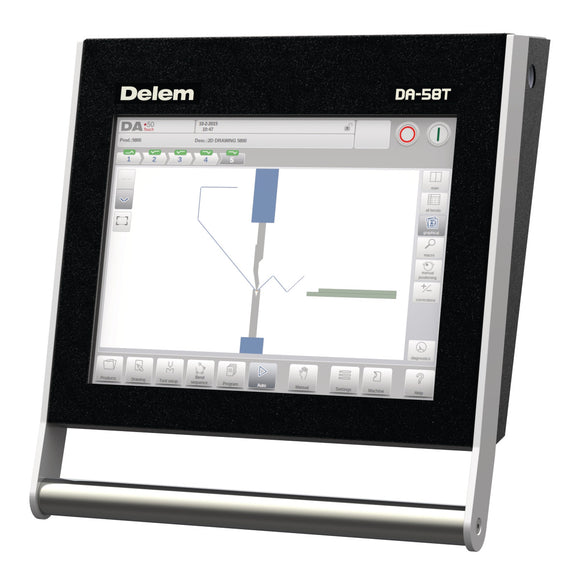

  • Graphical 2D CNC control DELEM DA-58T with offline software TL
  • Two linear encoders (GIVI) on Press bar for checking the desired position
  • High-quality linear encoders with an accuracy of 0.
  • Bending length 4100 mm
  • Bending speed from to 1 - 10 mm/s
  • Daylight 525 mm
  • Distance between columns 3600 mm
  • Frequency 50 Hz
  • Height 3450 mm
  • Length 5250 mm
  • Motor power 18,5 kW
  • Net weight 18500 kg
  • Number backgauge fingers 2 St
  • Number of support arms 2 St
  • Oil tank capacity 307 l
  • Pressing force 220 t
  • Rapid mode 140 mm/s
  • Retraction 100 mm/s
  • Stroke 275 mm
  • Supply voltage 400 V
  • Table height 930 mm
  • Table width 90 mm
  • Width 2150 mm
  • X axis speed 500 mm/s
  • X axis stroke from to 5 - 750 mm
