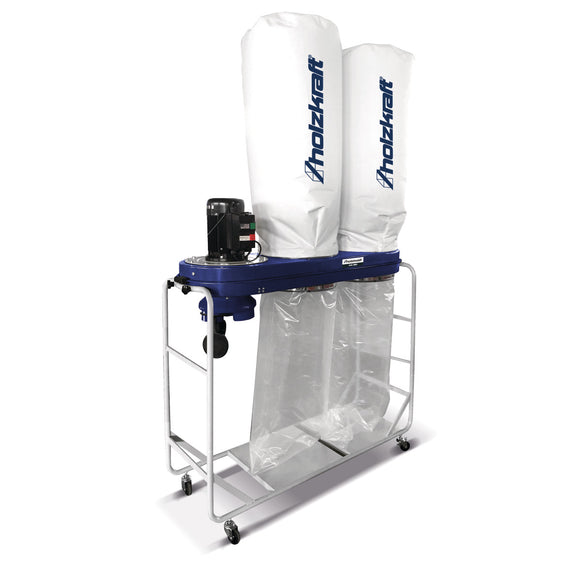

Chip extractor ASA 2803

• Chip collection volume 2 x 120 l
• Extraction duct inlet outside nominal width 203 mm
• Extraction duct outlet outside nominal width 1 x 100, 2 x 120 mm
• Filter surface area 2 x 1.92 m²
• Frequency 50 Hz
• Height 2100 mm
• Length 1500 mm
• Max. negative pressure 1900 Pa
• Max. sound pressure level 87.5 dB(A)
• Max. volume flow 2800 m³/h
• Motor input 2,2 kW
• Motor output 1.68 kW
• Motor speed 2950 min¯¹
• Net weight 53 kg
• Supply voltage 400 V
• Width 500 mm

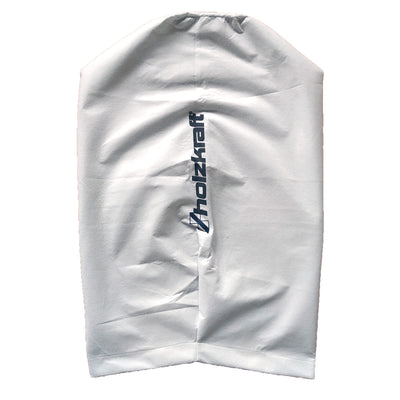

• Fine filter bag, two chip bags

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.
