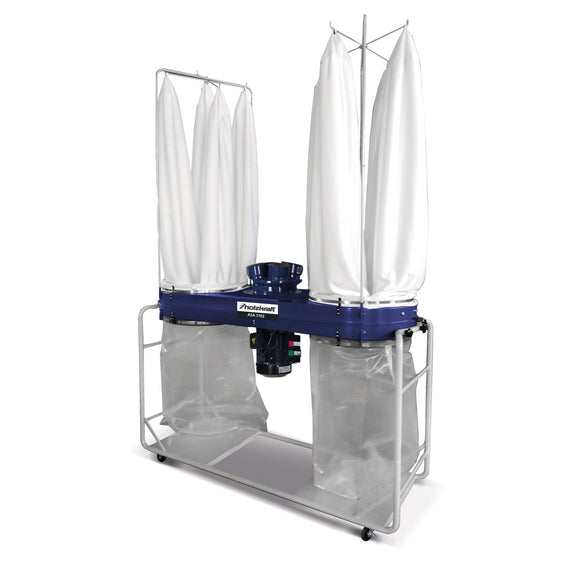

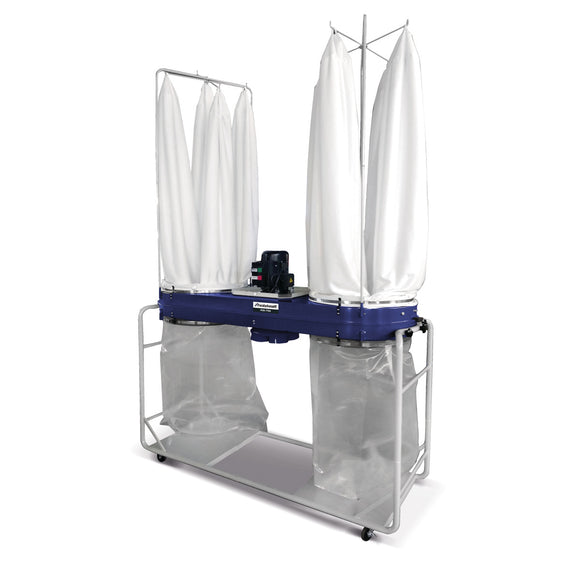

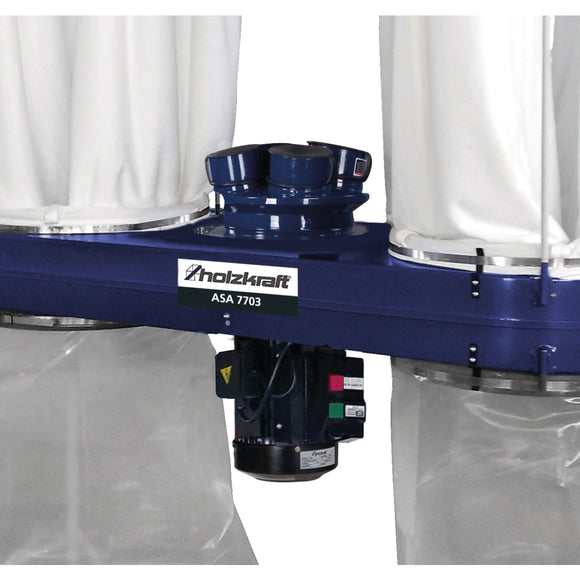

Chip extractor ASA 7703

• Chip collection volume 2 x 290 l
• Extraction duct inlet outside nominal width 260 mm
• Extraction duct outlet outside nominal width 3 x 120, 1 x 100 mm
• Filter surface area 2 x 5.98 m²
• Frequency 50 Hz
• Height 2800 mm
• Length 1900 mm
• Max. negative pressure 2800 Pa
• Max. sound pressure level 98.3 dB(A)
• Max. volume flow 7700 m³/h
• Motor input 4,8 kW
• Motor output 3.8 kW
• Motor speed 2950 min¯¹
• Net weight 88 kg
• Supply voltage 400 V
• Width 670 mm

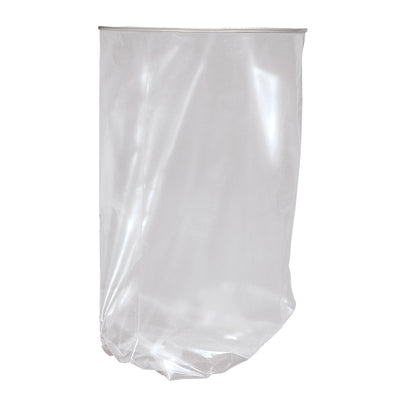

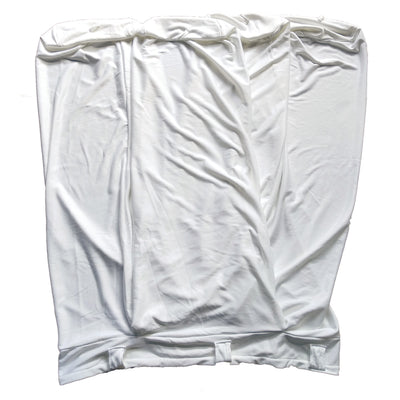

• Standard filter bag, two chip bags
