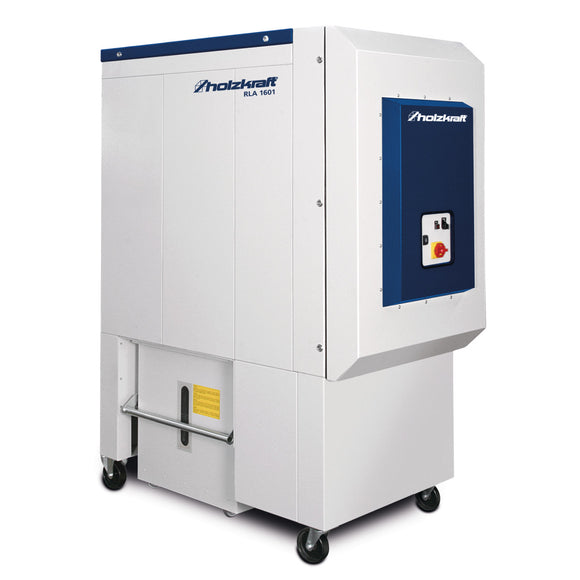

Pure air dust extractor RLA 1601 P

€10.576,77 EUR

Tax includedShipping calculated at checkout

SKU: 5131612 Barcode: 4036351172741

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Available on backorder ⓘ

Contact us about this product

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

Pure air dust extractor RLA P.
  • For use in workshops with a simultaneity factor of 1-2 machines, from RLA 2-3 machines (depending on the required volume flow) or as a decentralized extraction system to supplement an already existing stationary system.
  • For universal use with various materials - also suitable for dry aluminum chips!
  • 100% air recirculation without additional costs and constructional effort
  • Delivery ready for connection
  • High suction capacity
  • Low costs for pipe components and installation, especially when replacing old and no longer approved systems
  • Integrated pre-separation chamber to reduce the load and protect the filters
  • Compact dimensions, allowing the units to be installed in previously unused areas
  • Suction side can be ordered with orientation to the left or right, thus also possible use of workshop niches
  • Control system expandable by plug-in technology
  • For the installation in working rooms the regulations of the wood professional association GS-HM-03 are considered
  • From model RLA P

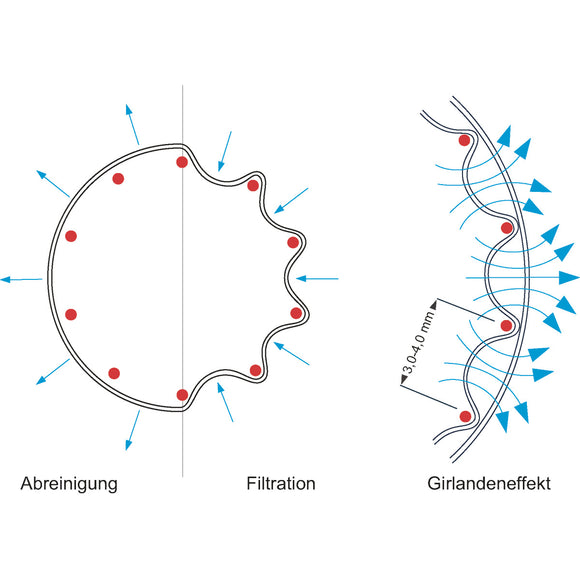

  • :Optimal filter cleaning after added time after switch-offwith

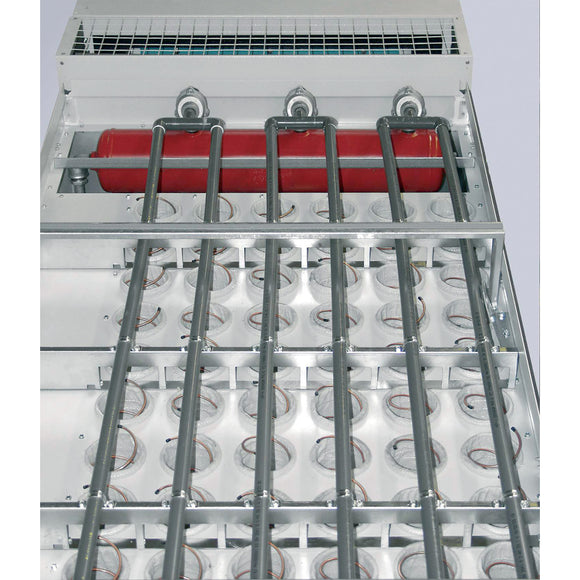

  • integrated, maintenance-free automatic extinguishing system tested according to GS-HM-03 with pressure membrane, for which no additional G1/4" compressed air and no direct water connection is required
  • .


.
  • Chip collection volume 165 l
  • Connector compressed air supply G 1/4 "
  • Extraction duct inlet outside nominal width 160 mm
  • Filter surface area 9.1 m²
  • Frequency 50 Hz
  • Height 2050 mm
  • Length 1716 mm
  • Max. sound pressure level 70 dB(A)
  • Max. volume flow 2000 m³/h
  • Motor power 2,2 kW
  • Net weight 340 kg
  • Rated volume flow 1448 m³/h
  • Residual dust content < 0.1 mg/m³
  • Suction motor efficiency class IE3
  • Supply voltage 400 V
  • Width 830 mm
