Pure air dust extractor RLA 160 M

€7.103,25 EUR

Tax includedShipping calculated at checkout

SKU: 5131621 Barcode: 4036351214489

14 Day
Return Policy
Warranty
12 months
Fast
Delivery

Available on backorder ⓘ

Contact us about this product

Paying with a business card? Please contact our manager, who will assist you with your purchase | +353 (0) 9064 32000

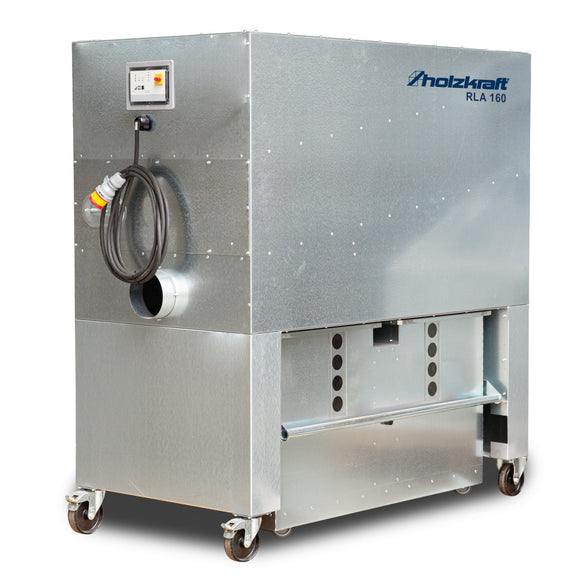

Pure air dust extractor RLA 160 M.
  • Dust tested to H3, residual dust content less than 0. 1 mg / m³
  • Suitable for vacuuming and separating dry wood and plastic chips
  • High extraction capacity with a small footprint
  • Maximum performance in this class
  • Very quiet
  • All models with a collision protection

Application
  • Designed for commercial use
  • For all woodworking machines with corresponding extraction nozzle diameter

High-quality, well thought-out construction
  • Robust and compact housing made of galvanized sheet steel
  • Extraction nozzle easily convertible from left to right, thus flexible use
  • Large inspection openings
  • Large-sized, mobile chip container with clamp and chip collecting bag
  • Dust remover at delivery already completely assembled, thus quick to use
  • All models mobile
  • For model RLA 210: Optimum chip distribution in the chip containers due to large filter surface

Description of the filter
  • Ultra compact with maximum filter surface
  • Filter material made of polyester fleece, aluminised, therefore with long service life
  • Standard anti-static filter tested and approved according to M-BIA category
  • The fan is connected downstream of the filter


.
  • Axis extraction port to floor 827 mm
  • Chip collection volume 2 x 165 l
  • Extraction duct inlet outside nominal width 160 mm
  • Filter surface area 9.21 m²
  • Frequency 50 Hz
  • Height 1653 mm
  • Length 1616 mm
  • Max. sound pressure level 73 dB(A)
  • Max. volume flow 2400 m³/h
  • Motor power 2,2 kW
  • Net weight 287 kg
  • Rated volume flow 1448 m³/h
  • Residual dust content < 0.1 mg/m³
  • Suction motor efficiency class IE3
  • Supply voltage 400 V
  • Width 830 mm
  • Metalllüfterrad
  • Inspection opening for cleaning the bypass filter
  • Connection cable 5 m with CEE plug 5-pole and phase inverter
  • Two fixed and two castors with parking brake
  • Pre-equipment for connection of machine recognition for up to 8 machines and slider controls
  • manual cleaning
