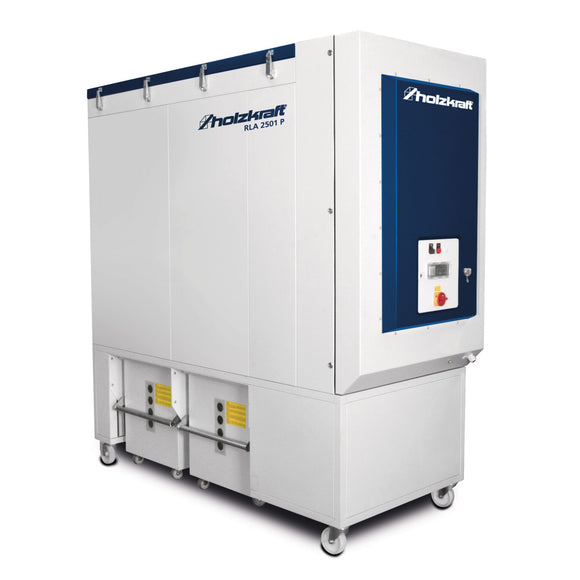

Pure air dust extractor RLA P.
  • For use in workshops with a simultaneity factor of 1-2 machines, from RLA 2-3 machines (depending on the required volume flow) or as a decentralized extraction unit to supplement an existing stationary system
  • For universal use with a wide range of materials - also suitable for dry aluminum chips!
  • 100% air recirculation without additional costs and construction work
  • Delivery ready for connection
  • High suction capacity
  • Low costs for pipe components and installation, especially when replacing old and no longer approved systems
  • Integrated pre-separation chamber to reduce the load and protect the filters
  • Compact dimensions, allowing the units to be installed in previously unused areas
  • Intake side can be ordered with orientation to the left or right, enabling the use of workshop niches
  • Control system can be expanded using plug-in technology
  • For installation in workrooms, the regulations of the wood trade association GS-HM-03 are taken into account

From model RLA P:

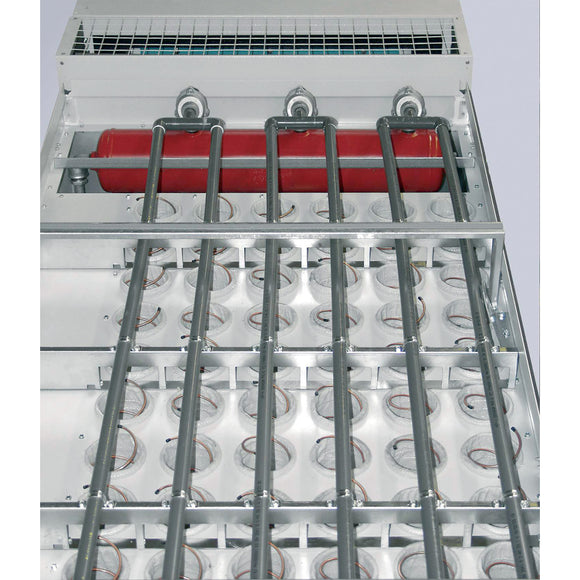

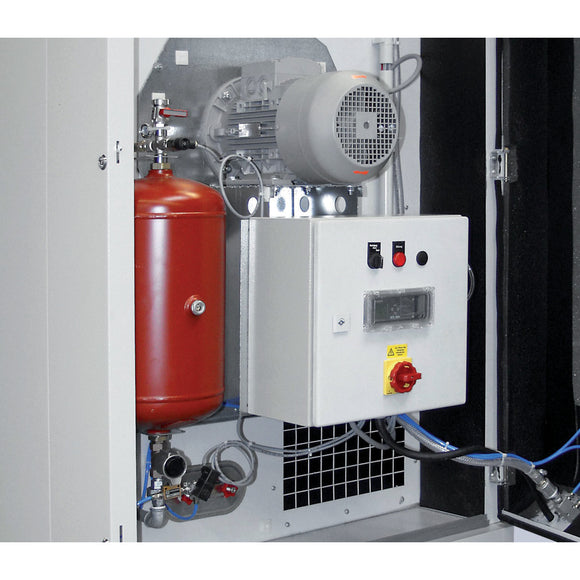

  • With integrated, maintenance-free automatic extinguishing system tested in accordance with GS-HM-03 with pressure membrane, for which no additional G1/4" compressed air or direct water connection is required.

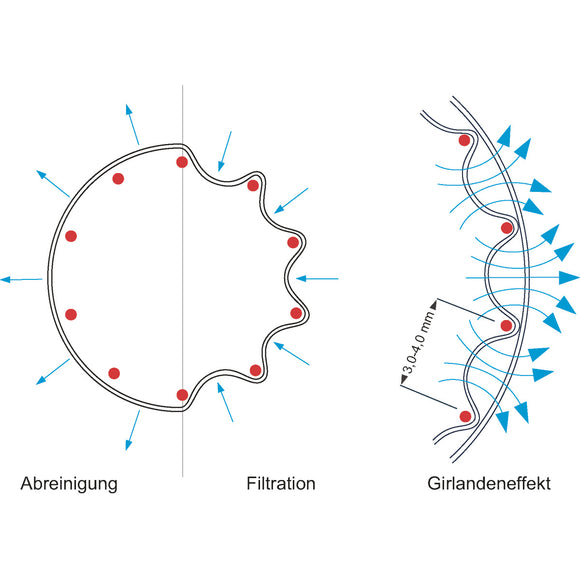

  • Optimum filter cleaning during operation (RLA 1601P-2001P) and at standstill after a minimum running time has been added up


.
  • Chip collection volume 2 x 165 l
  • Extraction duct inlet outside nominal width 250 mm
  • Filter surface area 22.4 m²
  • Frequency 50 Hz
  • Height 2351 mm
  • Length 2351 mm
  • Max. sound pressure level 71 dB(A)
  • Max. volume flow 4900 m³/h
  • Motor power 7.5 kW
  • Net weight 758 kg
  • Rated volume flow 3534 m³/h
  • Residual dust content < 0.1 mg/m³
  • Suction motor efficiency class IE3
  • Supply voltage 400 V
  • Width 1058 mm
