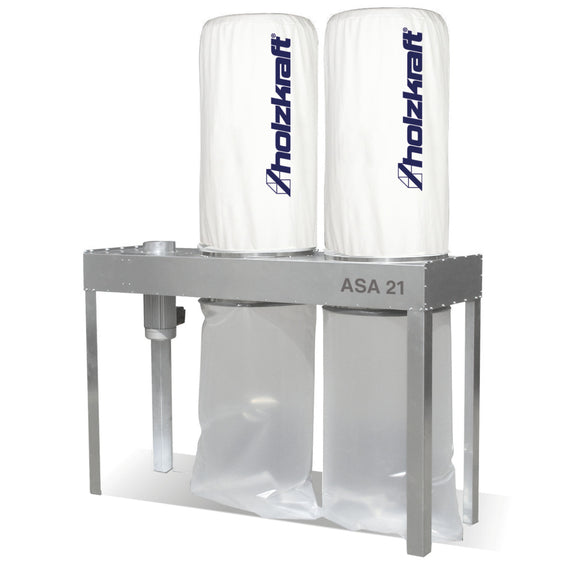

Rohluftabsauganlage ASA 21

• Back-up fuse max. 16 A inert
• Chip collection volume 2 x 175 l
• Connector plug CEE 16 A
• Extraction duct inlet outside nominal width 160 mm
• Filter surface area 2 x 2,2 m²
• Frequency 50 Hz
• Height 2115 mm
• Length 1817 mm
• Max. sound pressure level 83 dB(A)
• Max. volume flow 2300 m³/h
• Motor power 2,2 kW
• Net weight 74 kg
• Rated volume flow 1300 m³/h
• Suction motor efficiency class IE3
• Supply voltage 400 V
• Width 578 mm

• Plant body with mounted fan unit
• PVC Chip bag
• ASA 11 - ASA 21 suction unit with plastic impeller
• ASA 31 - ASA 61 Suction unit with metal impeller
• Star-delta switch from 5.5 kW motor (ASA 51 / ASA 61)
• support legs
