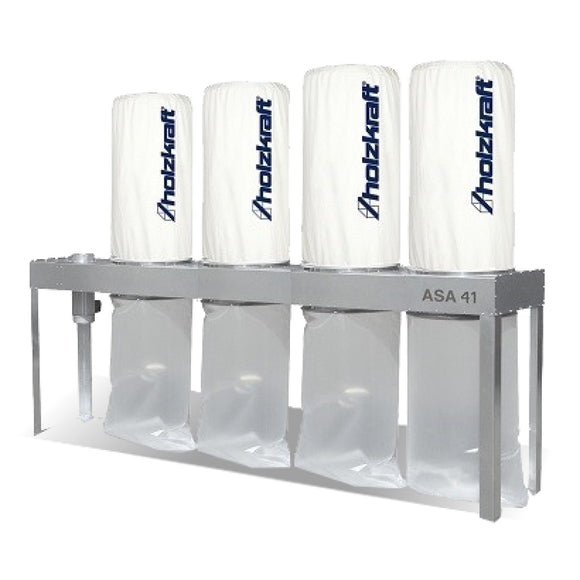

Rohluftabsauganlage ASA 41

• Back-up fuse max. 16 A inert
• Chip collection volume 4 x 175 l
• Connector plug CEE 16 A
• Extraction duct inlet outside nominal width 250 mm
• Filter surface area 4 x 3.5 m²
• Frequency 50 Hz
• Height 2754 mm
• Length 3416 mm
• Max. sound pressure level 81 dB(A)
• Max. volume flow 4300 m³/h
• Motor power 4,0 kW
• Net weight 182 kg
• Rated volume flow 3500 m³/h
• Suction motor efficiency class IE3
• Supply voltage 400 V
• Width 787 mm

• Plant body with mounted fan unit
• PVC Chip bag
• ASA 11 - ASA 21 suction unit with plastic impeller
• ASA 31 - ASA 61 Suction unit with metal impeller
• Star-delta switch from 5.5 kW motor (ASA 51 / ASA 61)
• support legs
