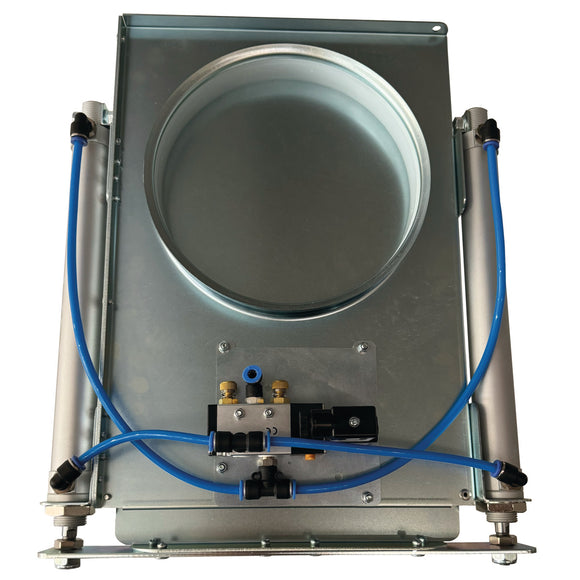

Pneumatic gate valve Ø100 24 V

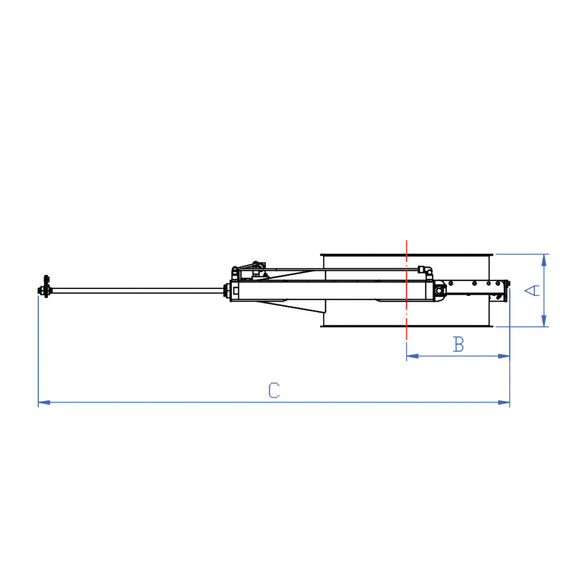

• Depth (A) 63 mm
• Diameter 100 mm
• Distance from bottom to center of opening (B) 263 mm

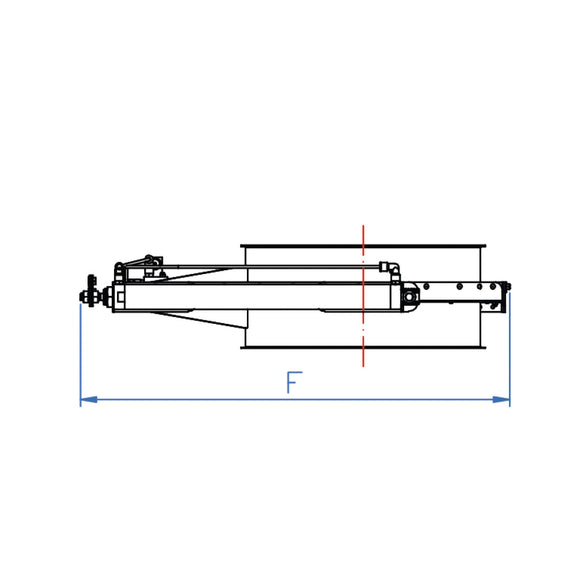

• Height with closed slider (F) 287 mm
• Height with slider open (C) 417 mm

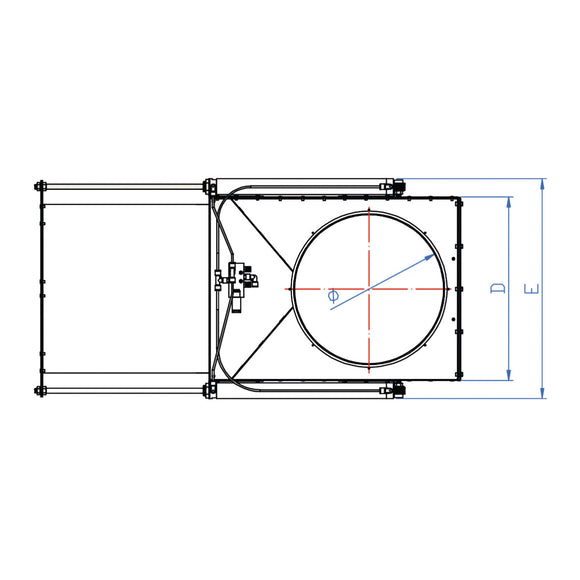

• Total width (E) 259 mm
• Weight 3.8 kg
• Width of the slider (D) 185 mm
