Woodbandsaw HBS 533 S (IE3) Special offer set

€5.277,31 EUR (€4.290,50 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5150054SET Barcode: 4036351338819

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

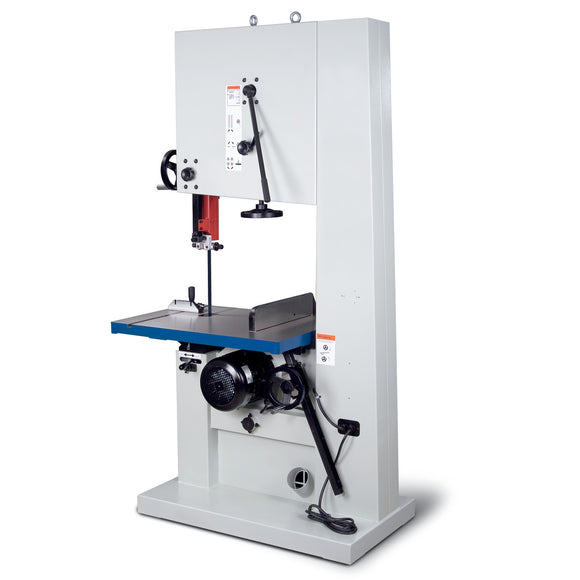

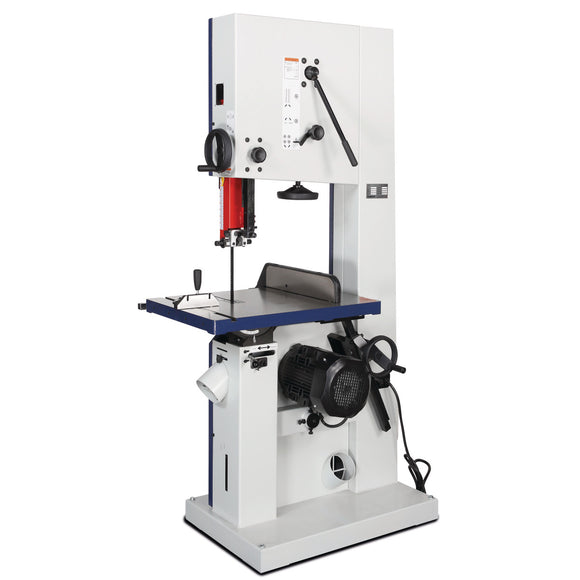

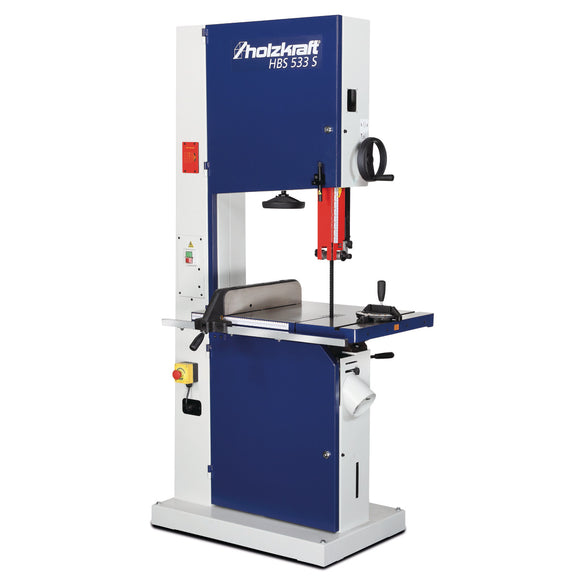

Woodbandsaw HBS 533 S (IE3) Special offer set.
  • Heavy professional design with high dead weight for maximum smoothness Especially quiet and precise running thanks to torsion-free machine housing
  • Large dimensioned cast iron saw table, one piece, swiveling from 0 ° to + 45 ° with ground and polished surface
  • Patented table tilt device with handwheel and rack
  • Sägebandschnellspannung
  • Precision Sägebandrollenführung
  • Large font rip fence
  • Fast and precise cutting height adjustment via handwheel and rack with millimeter scale
  • Safety switch for automatic shutdown when opening the door
  • Large font rip fence
  • Standard with angle stop
  • Table tilt via rack and handwheel

Room amenities:

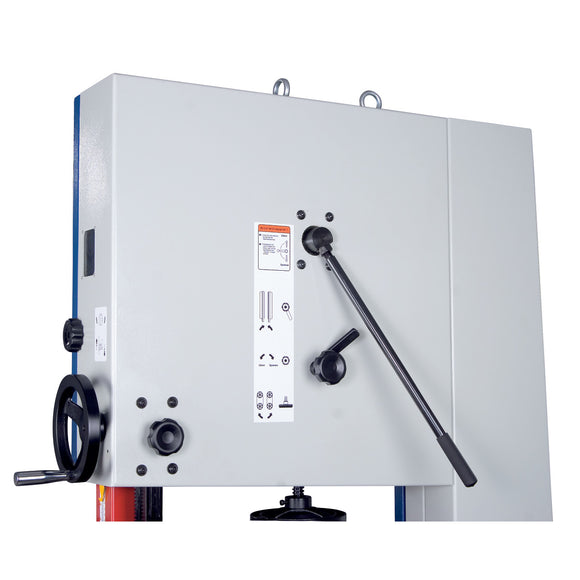

Quick release system
  • Eccentric quick release lever
  • The voltage setting is not changed
  • With integrated saw band tension indicator

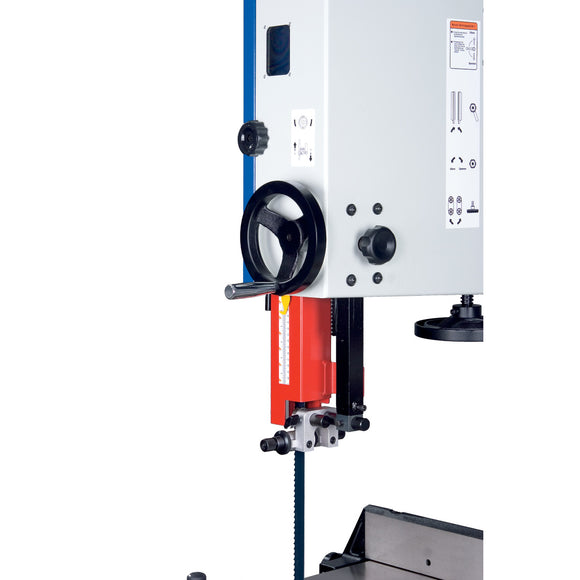

Cutting height adjustment
  • Fast and precise cutting height adjustment via handwheel and rack with millimeter scale

laser device
  • Standard with laser device for fast and precise display of the cutting line

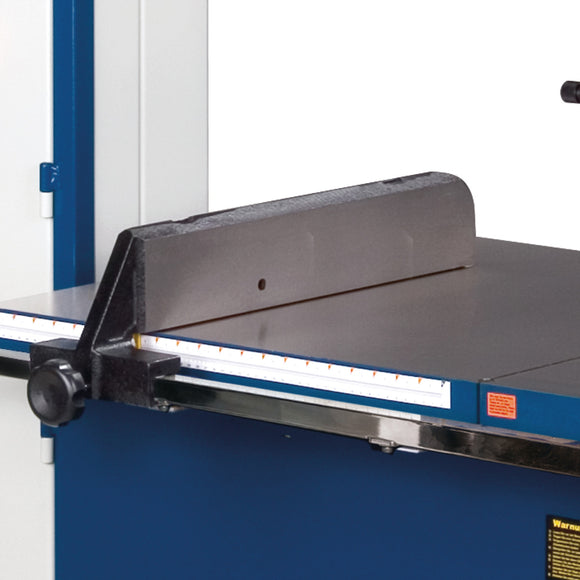

Stable rip fence
  • Rip fence made of gray cast iron
  • With quick clamping and easy-to-read millimeter scale

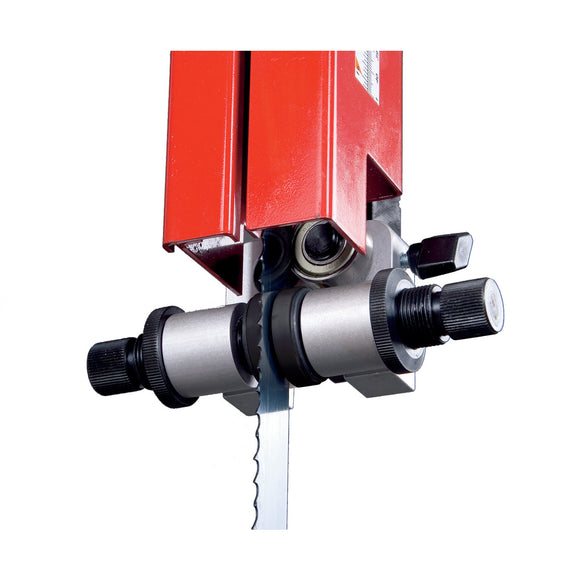

Precision guide above
  • Precision 3-reed saw band guide with guide rollers
  • With fine adjustment

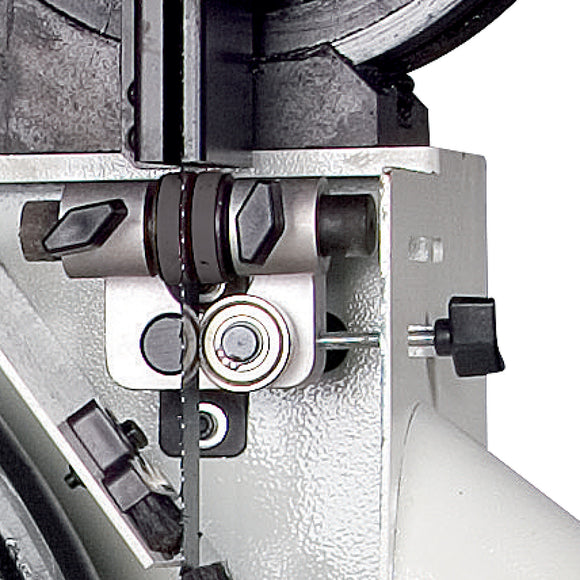

Precision guide below
  • The bottom saw band guide is also equipped with precision guide rollers and fine adjustment

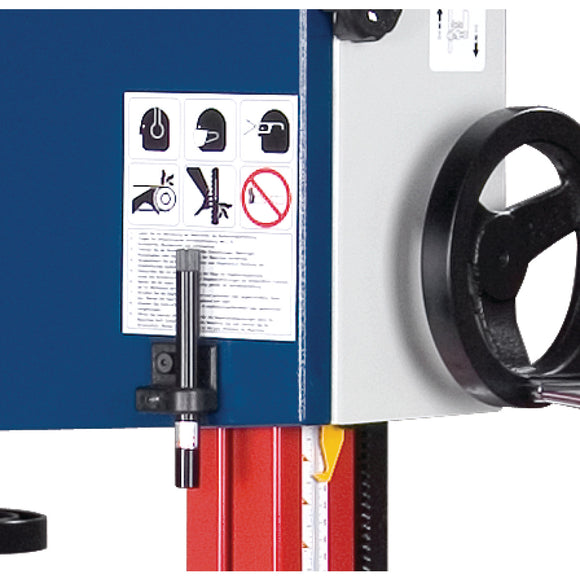

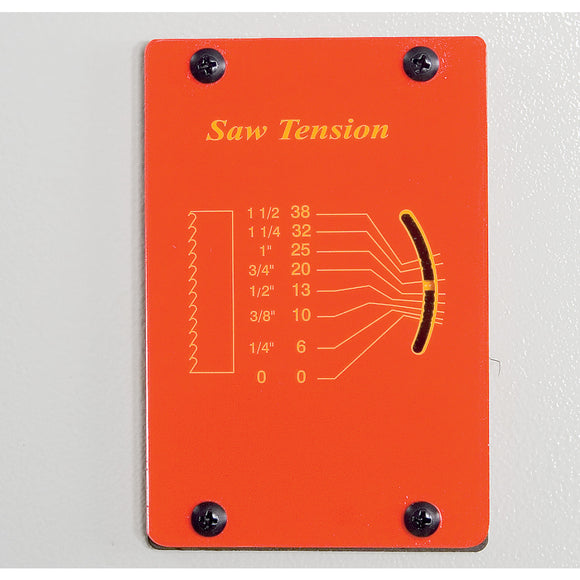

Display of saw blade tension
  • Display of saw blade tension integrated in the machine frame for different saw blade widths
  • Easy to read from the operator side

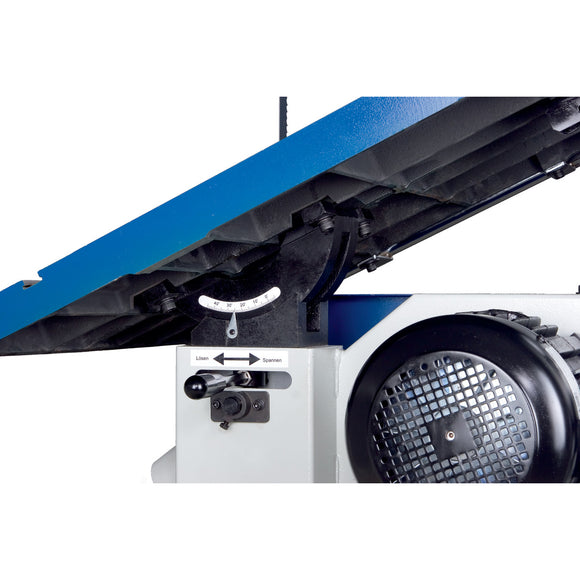

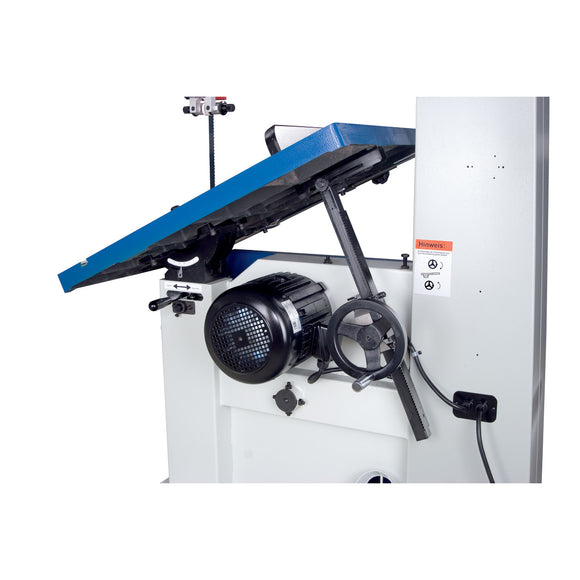

Patented professional saw table guide
  • The heavy, solid gray cast iron saw table is easily and conveniently adjusted via a hand wheel rack guide
  • .
  • Delivery power 4.1 kW
  • Extraction port diameter 2 x 120 mm
  • Flywheel diameter 530 mm
  • Frequency 50 Hz
  • Height 1987 mm
  • Length 998 mm
  • Max. cutting height 90° 350 mm
  • Max. cutting width with stop 465 mm
  • Max. cutting width without stop 510 mm
  • Net weight 284.7 kg
  • Saw band length 4190 mm
  • Saw band speed(s) 1400 m/min
  • Supply voltage 400 V
  • Width 800 mm
  • Work table height 900 mm
  • Work table length 750 mm
  • Work table pivot 0 – 45 °
  • Work table pivot explanation For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping!
  • Work table width 530 mm
  • 1x HBS 533 S
  • Saw band set 533 S
    • 1x saw blade wood 4190 x 10 x 0,5 mm; 4 tooth
    • 1x saw band wood 4190 x 20 x 0.5 mm; 4 tooth
    • 1x saw band wood 4190 x 25 x 0.5 mm; 4 tooth

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Woodbandsaw HBS 533 S (IE3) Woodbandsaw HBS 533 S (IE3) - 0

Woodbandsaw HBS 533 S (IE3)

Holzkraft

€5.189,37 EUR
Enquire
Saw band set SBASET4190MM3T Saw band set SBASET4190MM3T - 0

Saw band set SBASET4190MM3T

Holzkraft

€87,94 EUR
Enquire
Leveling plate SE 1 Leveling plate SE 1 - 0

Leveling plate SE 1

Optimum

€36,78 EUR

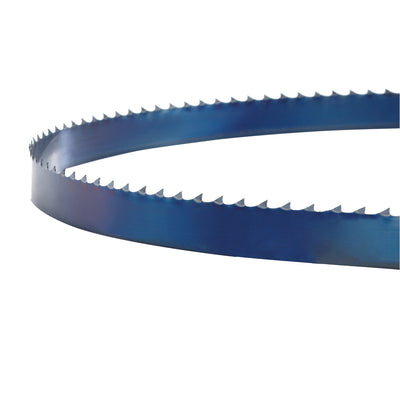

Saw band SBA4190X20X0,5MM Saw band SBA4190X20X0,5MM - 0
