Woodbandsaw HBS 813 S

€7.255,77 EUR (€5.899,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5150813 Barcode: 4036351320654

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

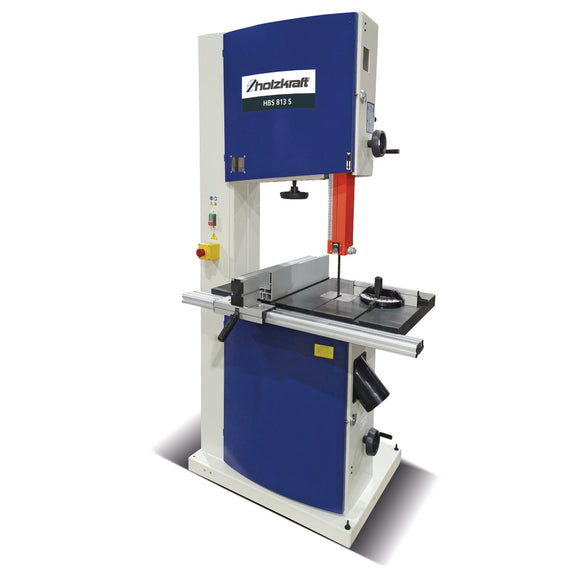

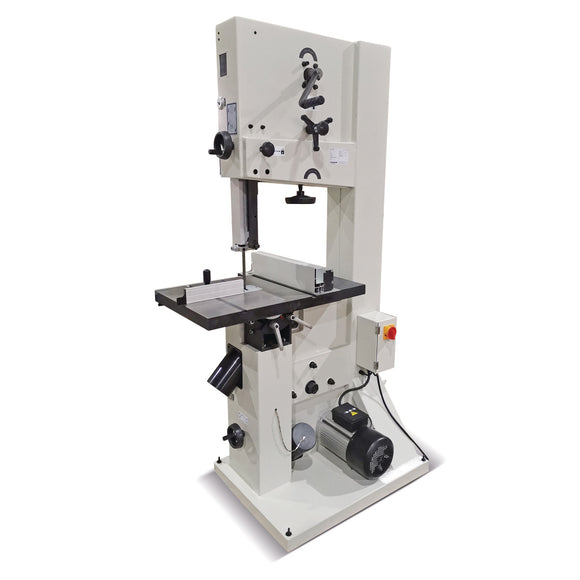

Woodbandsaw HBS 813 S.
  • Heavy design with high weight for maximum smoothness
  • Particularly quiet and precise running thanks to the torsion-resistant machine housing

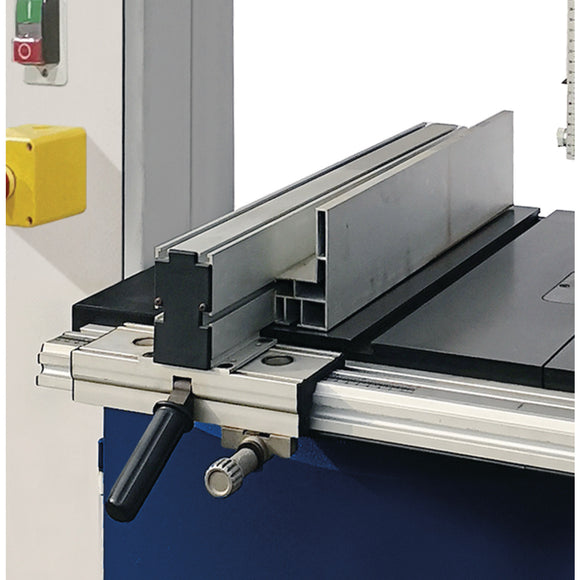

  • Precisely adjustable aluminum rip fence
  • cast Flywheels with rubber coating and chip scraper brush
  • Large cast iron saw table, swiveling from 0° to +45° with polished and polished surface

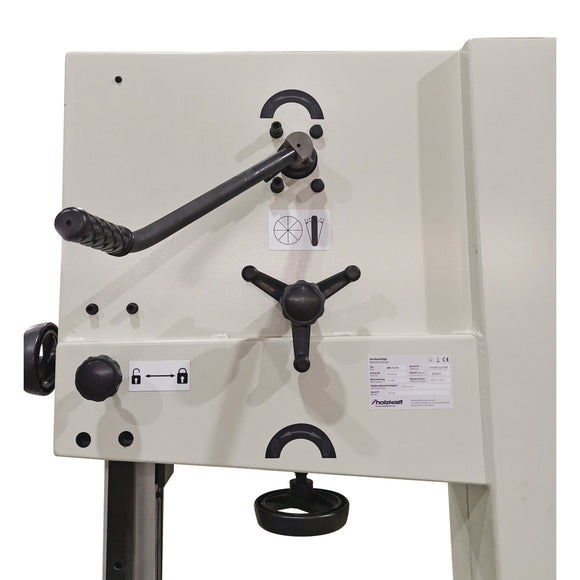

  • Precise cutting height adjustment using a rack with a millimeter scale
  • Two extraction nozzles


.
  • Extraction port diameter 2 x 120 mm
  • Flywheel diameter 810 mm
  • Frequency 50 Hz
  • Height 2500 mm
  • Input power 5.5 kW
  • Length 1600 mm
  • Max. cutting height 45° 285 mm
  • Max. cutting height 90° 470 mm
  • Max. cutting width with stop 595 mm
  • Max. cutting width without stop 800 mm
  • Net weight 480 kg
  • Saw band length 5610 mm
  • Saw band length max. 5621 mm
  • Saw band length min. 5601 mm
  • Saw band speed(s) 1080 m/min
  • Saw band thickness 0,65 mm
  • Saw band width 38 mm
  • Saw band width max. 50 mm
  • Supply voltage 400 V
  • Width 1000 mm
  • Work table extension length 200 mm
  • Work table extension width 700 mm
  • Work table height 1050 mm
  • Work table length 900 mm
  • Work table pivot 0 – 45 °
  • Work table pivot explanation For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping!
  • Work table width 700 mm

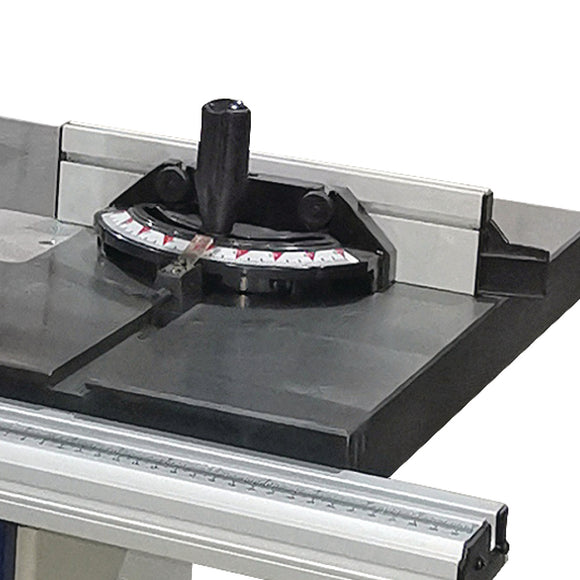

  • Mitre gauge
  • Saw band
  • Push stick
