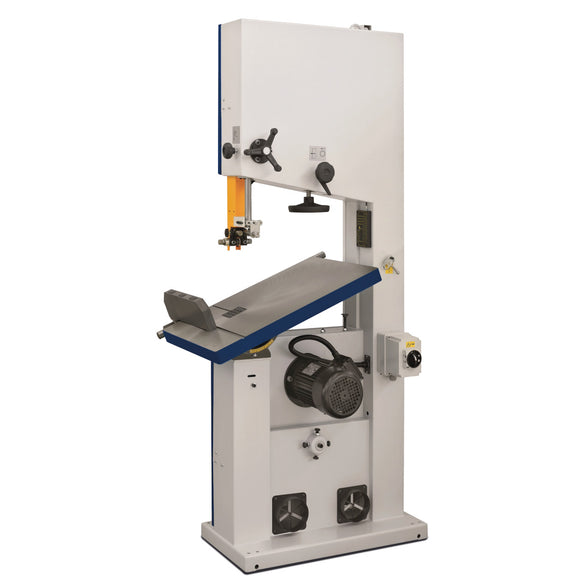

Woodbandsaw HBS 540 AS.
  • Heavy design with high dead weight for maximum running smoothness
  • Particularly quiet and pretorsionally stiff machine housing

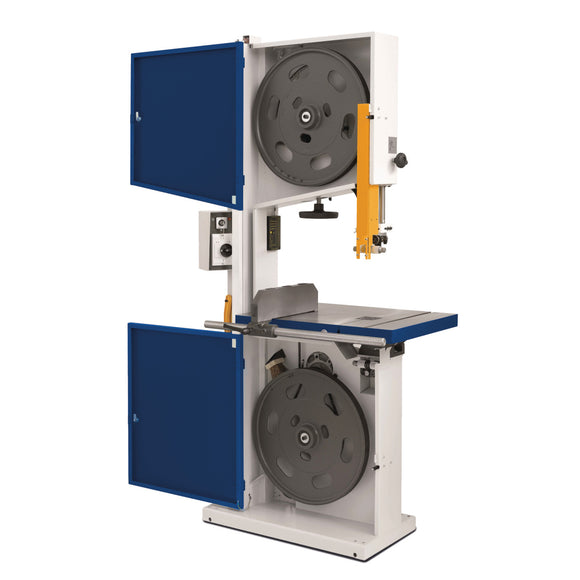

  • Cast flywheels with rubber coating and cleaning brush

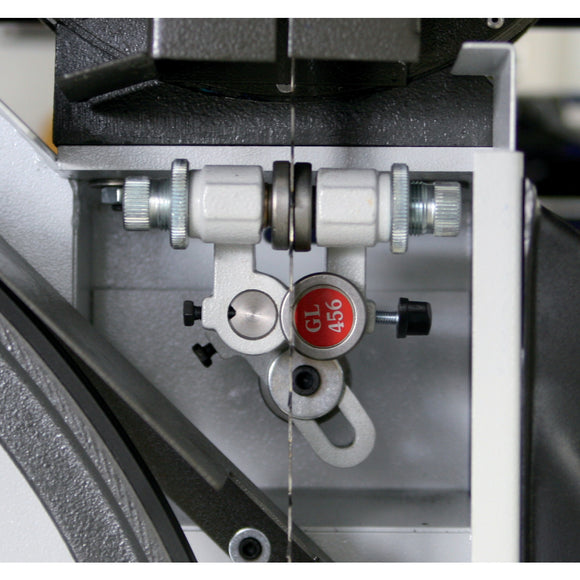

  • 3-roller precision saw band guide as standard at top and bottom
  • Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
  • Large cast-iron parallel fence with round rod guide, easilyguide, easily movable

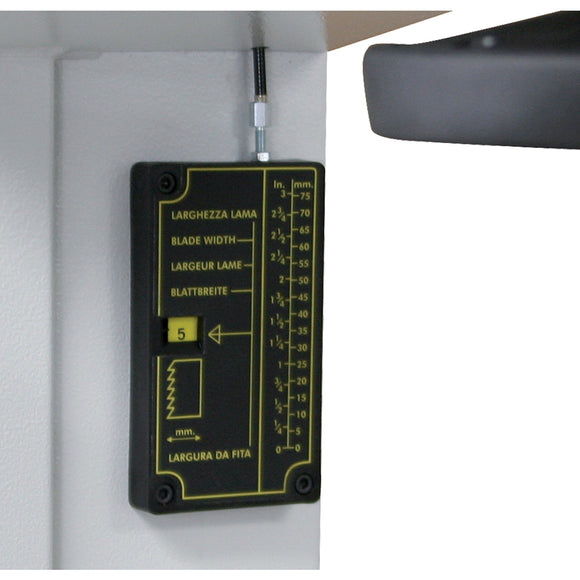

  • Saw blade tension indicator
  • Precise cutting height adjustment overover toothed rack with millimetre scale
  • Self-braking motor
Available on request
  • Version with cutting height up to mm
  • Other special versions
Table, motor and switch must be mounted on site.

.
  • Delivery power 1,5 kW
  • Extraction port diameter 2 x 120 mm
  • Flywheel diameter 540 mm
  • Frequency 50 Hz
  • Height 1970 mm
  • Length 870 mm
  • Max. cutting height 90° 350 mm
  • Max. cutting width 520 mm
  • Max. saw band strength 0.6 mm
  • Min. saw band strength 0.5 mm
  • Net weight 240 kg

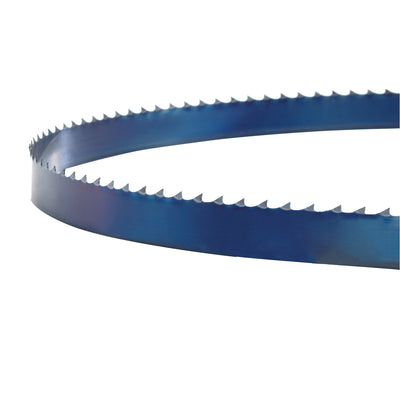

  • Saw band length 4250 mm
  • Saw band length max. 4260 mm
  • Saw band length min. 4200 mm
  • Saw band speed(s) 1650 m/min
  • Supply voltage 400 V
  • Width 620 mm
  • Work table height 860 mm
  • Work table length 720 mm
  • Work table pivot 0 – 20 °
  • Work table width 520 mm
