Woodbandsaw HBS 740 AS

€8.733,00 EUR (€7.100,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5152174 Barcode: 4036351038580

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

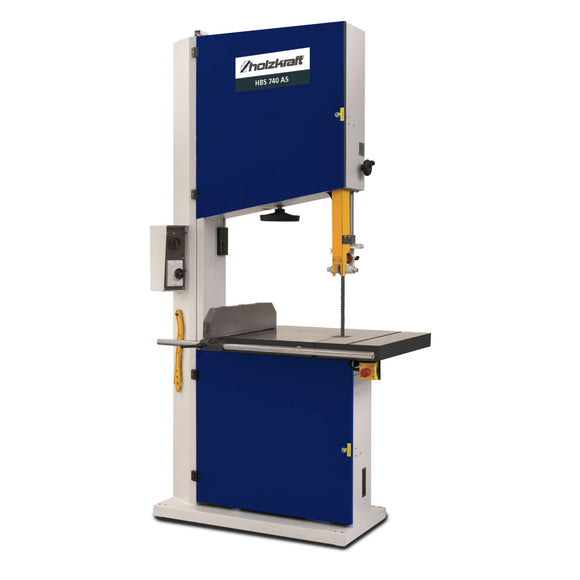

Woodbandsaw HBS 740 AS.
  • Heavy design with high dead weight for maximum running smoothness
  • Particularly quiet and pretorsionally stiff machine housing

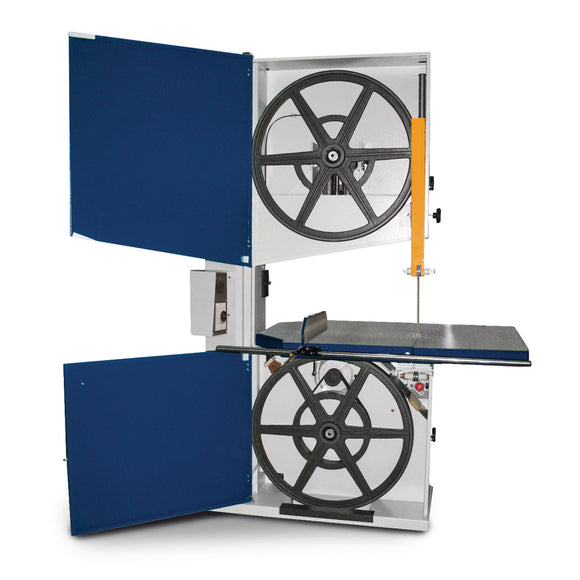

  • Cast flywheels with rubber coating and cleaning brush

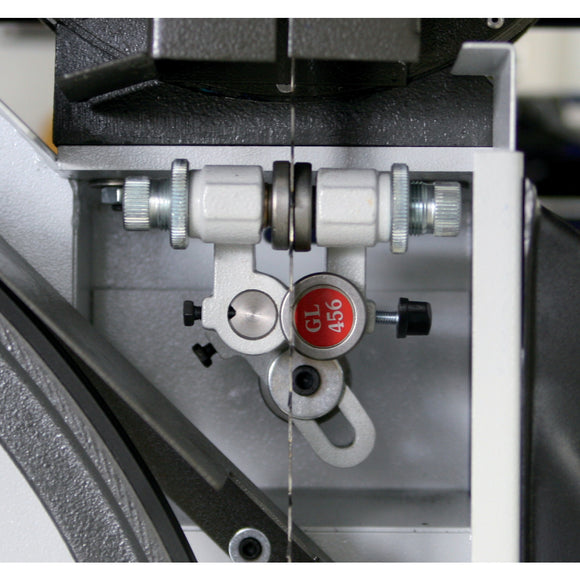

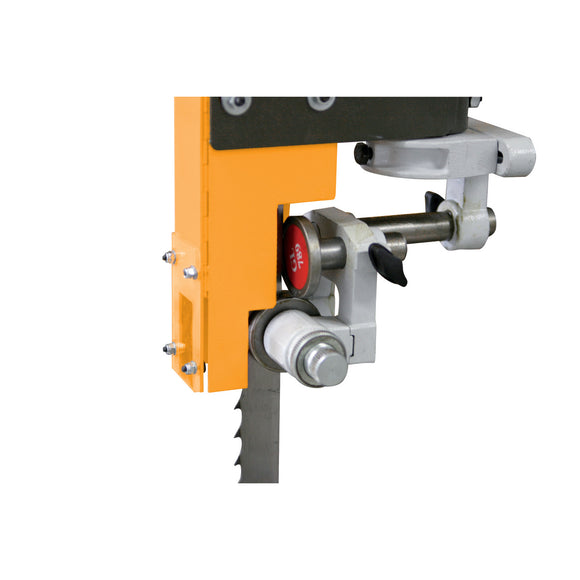

  • 3-roller precision saw band guide as standard at top and bottom
  • Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
  • Large cast-iron parallel fence with round rod guide, easilyguide, easily movable
  • Saw blade tension indicator
  • Precise cutting height adjustment overover toothed rack with millimetre scale
  • Self-braking motor
Available on request
  • Version with cutting height up to mm
  • Other special versions
Table, motor and switch must be mounted on site

.
  • Delivery power 3,0 kW
  • Extraction port diameter 2 x 120 mm
  • Flywheel diameter 740 mm
  • Frequency 50 Hz
  • Height 2430 mm
  • Length 1180 mm
  • Max. cutting height 90° 450 mm
  • Max. cutting width 720 mm
  • Max. saw band strength 0.7 mm
  • Min. saw band strength 0.6 mm
  • Net weight 414 kg

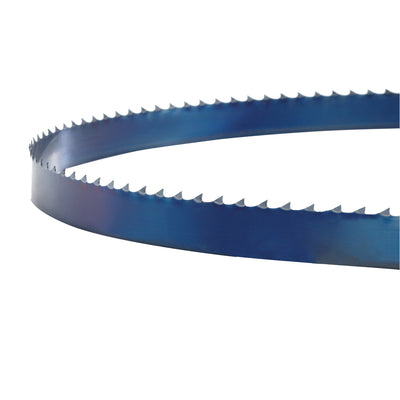

  • Saw band length 5400 mm
  • Saw band length max. 5420 mm
  • Saw band length min. 5340 mm
  • Saw band speed(s) 1540 m/min
  • Supply voltage 400 V
  • Width 820 mm
  • Work table height 980 mm
  • Work table length 1000 mm
  • Work table pivot 0 – 20 °
  • Work table width 720 mm
