Special band saw HBS 540 LL

€7.810,50 EUR (€6.350,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5152254 Barcode: 4036351174875

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

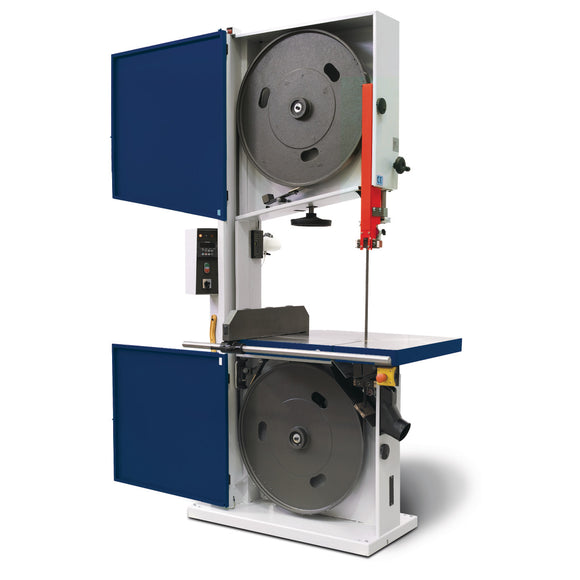

Special band saw HBS 540 LL.
  • Particularly smooth and precise running thanks to torsion-resistant machine housing

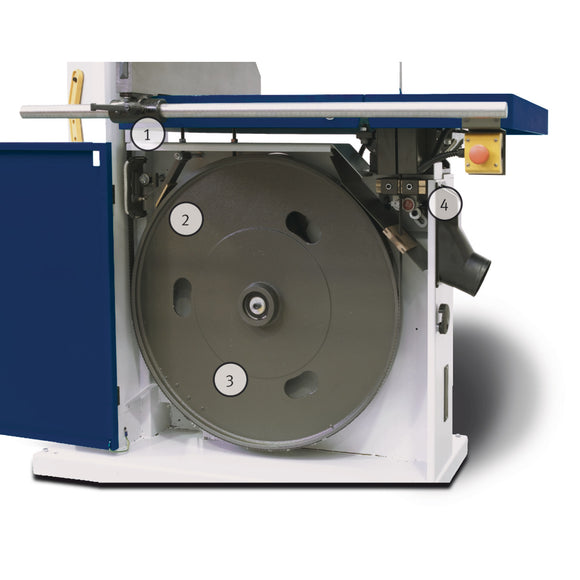

  • Solid cast iron flywheels, cambered (1/3) and bronze chip scraper
  • Cast iron saw table
  • Large cast iron parallel fence with round bar guide, easy to move

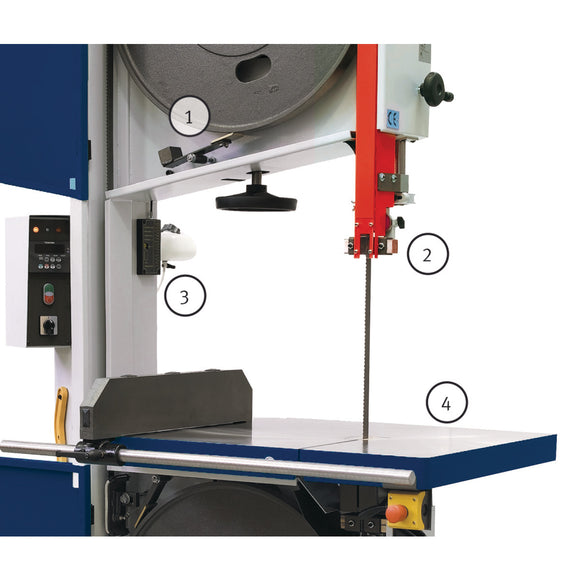

  • Top saw blade guide with ball bearing, bottom with wooden guide
  • Saw blade tension indicator
  • Drip lubrication system with felt glides

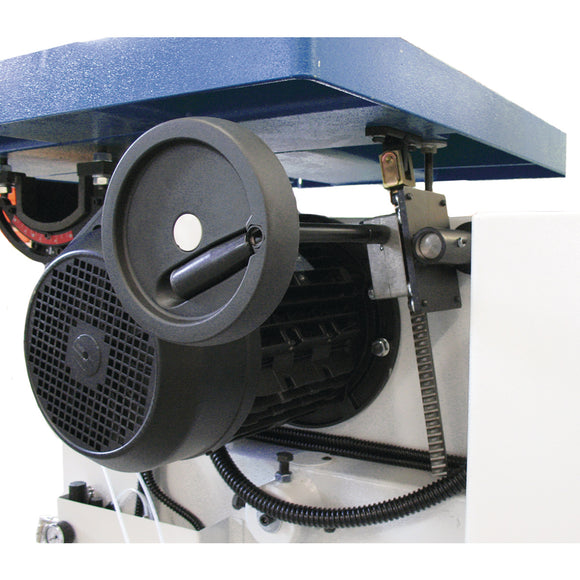

  • Self-braking motor
  • Note: Table, motor and switch must be assembled on site!


.
  • Delivery power 1.5 kW
  • Flywheel diameter 530 mm
  • Frequency 50 Hz
  • Height 1970 mm
  • Length 870 mm
  • Max. cutting height 90° 350 mm
  • Max. cutting width with stop 510 mm
  • Max. cutting width without stop 510 mm
  • Net weight 240 kg
  • Saw band length max. 4250 mm
  • Saw band length min. 4170 mm
  • Saw band speed(s) 750 m/min
  • Supply voltage 400 V
  • Width 520 mm
  • Work table length 720 mm
  • Work table width 520 mm
