Resaw HBS 740 RS3

€23.554,50 EUR (€19.150,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5152374 Barcode: 4036351175148

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out

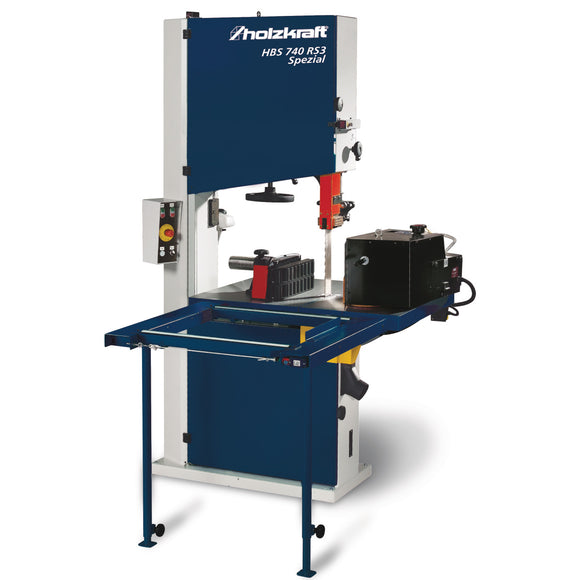

Resaw HBS 740 RS3.
  • Torsion-resistant machine housingSolid
  • cast iron flywheels, cambered (1/3) and bronze chip
  • scraperGrey

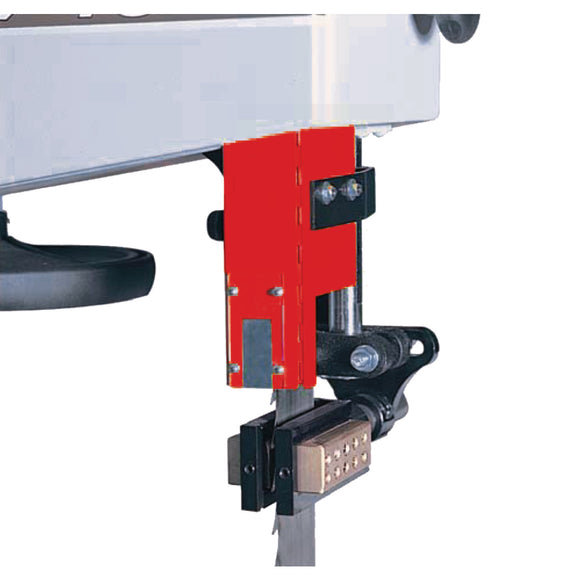

  • cast iron saw tableSaw blade guide
  • at top and bottom for saw blade up to 80 mm (940 to 90 mm)
  • Saw blade tension indicatorDrip lubrication system
  • with felt glidesSelf-braking
  • motorAutomatic
  • star-delta startSaw blades
  • with application range specification available on requestSpecial
  • manual version: With
  • reinforced base with double column and steel saw blade tensioning
  • unit with guide lubrication system
  • Special version Hydraulic: With reinforced base with double column and hydraulic steel saw blade tensioning unit with hand pump and guide lubrication system


.
  • Delivery power 9 kW
  • Extraction port diameter 2 x 140 mm
  • Flywheel diameter 730 mm
  • Frequency 50 Hz
  • Height 1250 mm
  • Length 2530 mm
  • Max. cutting height 90° 450 mm
  • Max. cutting width with stop 710 mm
  • Max. cutting width without stop 710 mm
  • Net weight 670 kg
  • Saw band length max. 5420 mm
  • Saw band length min. 5310 mm
  • Saw band width max. 80 mm
  • Supply voltage 400 V
  • Width 900 mm
  • Work table height 980 mm
  • Work table length 1103 mm
  • Work table width 860 mm
