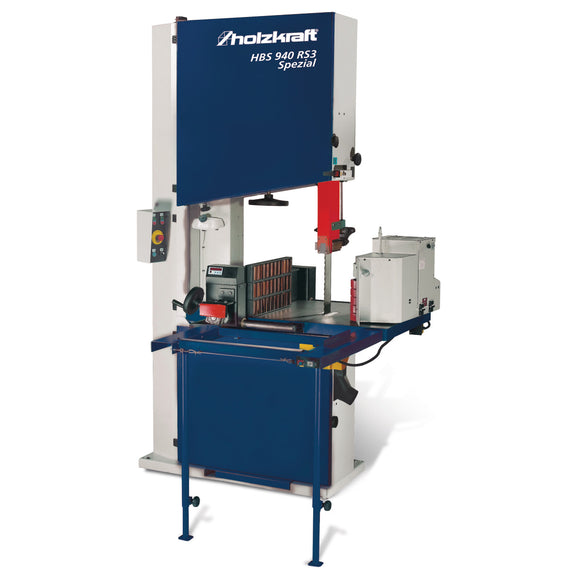

Resaw HBS 940 RS3 special manual.
  • Torsion-resistant machine housingSolid
  • cast iron flywheels, cambered (1/3) and bronze chip
  • scraperGrey

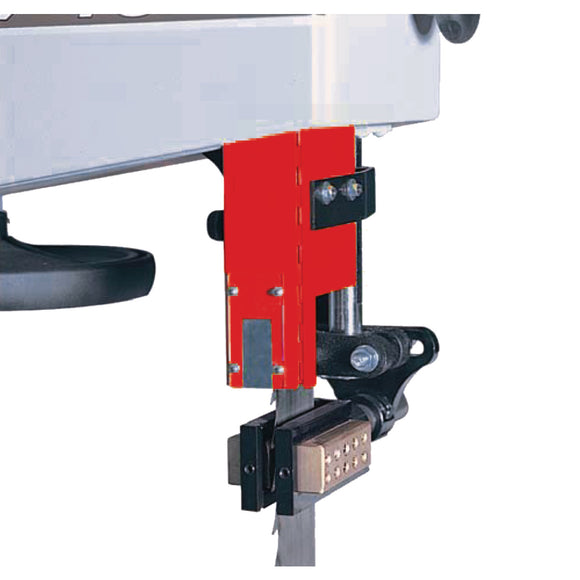

  • cast iron saw tableSaw blade guide
  • at top and bottom for saw blade up to 80 mm (940 to 90 mm)
  • Saw blade tension indicatorDrip lubrication system
  • with felt glidesSelf-braking
  • motorAutomatic
  • star-delta startSaw blades
  • with application range specification available on requestSpecial
  • manual version: With
  • reinforced base with double column and steel saw blade tensioning
  • unit with guide lubrication system
  • Special version Hydraulic: With reinforced base with double column and hydraulic steel saw blade tensioning unit with hand pump and guide lubrication system


.
  • Delivery power 11 kW
  • Extraction port diameter 2 x 140 mm
  • Flywheel diameter 930 mm
  • Frequency 50 Hz
  • Height 1550 mm
  • Length 3000 mm
  • Max. cutting height 90° 600 mm
  • Max. cutting width with stop 720 mm
  • Max. cutting width without stop 720 mm
  • Net weight 1030 kg
  • Saw band length max. 6670 mm
  • Saw band length min. 6580 mm
  • Saw band width max. 90 mm
  • Supply voltage 400 V
  • Width 870 mm
  • Work table height 1060 mm
  • Work table length 1101 mm
  • Work table width 860 mm
