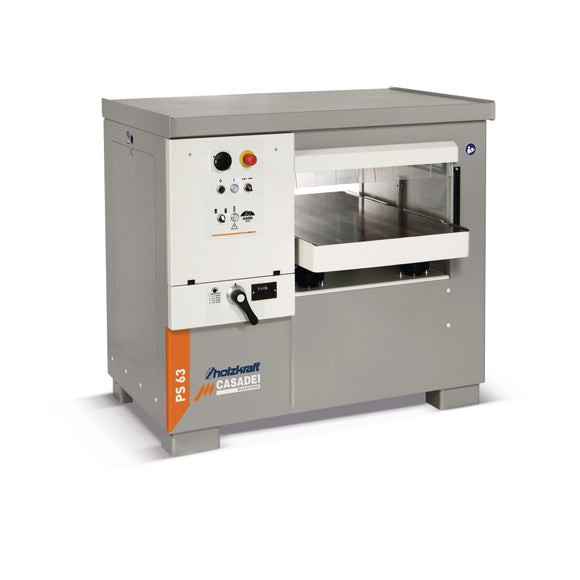

Thicknessing plane CASADEI PS 63

• Extraction port diameter thickness 150 mm
• Feed speed 5/8/12/18 m/min
• Frequency 50 Hz
• Length 1305 mm
• Machine body length 1305 mm
• Machine body width/length 725 mm
• Max. cutting depth thickness 8 mm
• Max. planing width 630 mm
• Motor power 9 kW
• Net weight 750 kg
• Number of planing blades 4 St
• Planing shaft diameter 120 mm
• Planing shaft speed 4500 min¯¹
• Space requirement height 1197 mm
• Space requirement length 1305 mm
• Space requirement width/depth 1080 mm
• Supply voltage 400 V
• Thicknessing table length 630 mm
• Thicknessing table width 1000 mm
• Width 1080 mm
• Work area length 1000 mm
• Work area width/depth 2000 mm
• Working height max. thickness 300 mm
• Working height min. thickness 3.5 mm
• Working length min. thickness 210 mm
