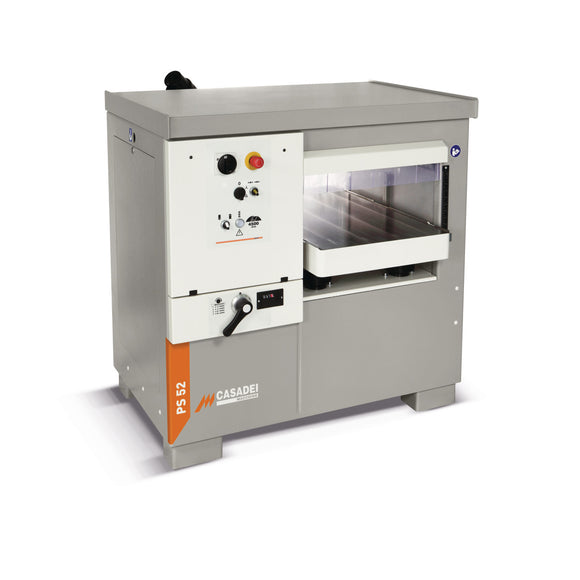

Thicknessing plane CASADEI PS 52 SPIRAL

• Extraction port diameter thickness 150 mm
• Feed speed 5/8/12/18 m/min
• Frequency 50 Hz
• Length 1170 mm
• Machine body length 1170 mm
• Machine body width/length 705 mm
• Max. cutting depth thickness 8 mm
• Max. planing width 520 mm
• Motor power 7,5 kW
• Net weight 660 kg
• Number of planing blades 66 St
• Planing shaft speed 4500 min¯¹
• Space requirement height 1197 mm
• Space requirement length 1170 mm
• Space requirement width/depth 1003 mm
• Supply voltage 400 V
• Thicknessing table length 520 mm
• Thicknessing table width 1000 mm
• Width 1003 mm
• Work area length 1000 mm
• Work area width/depth 2000 mm
• Working height max. thickness 250 mm
• Working height min. thickness 3.5 mm
• Working length min. thickness 210 mm
