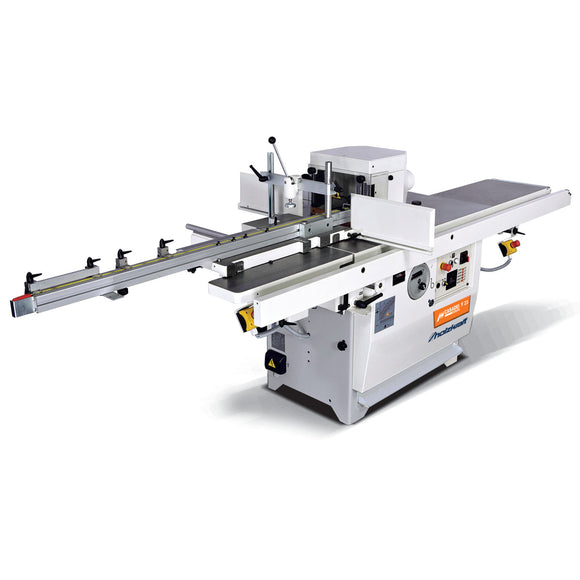

Table router CASADEI F 23 TL

• Curved cutting guard ✔
• Frequency 50 Hz
• Machine body length 992 mm
• Machine body width/length 577 mm
• Max. tool diamter form milling 160 mm
• Max. tool diamter lowerable 320 mm
• Max. tool diamter profile milling 250 mm
• Max. tool diamter tenoning milling 350 mm
• Milling spindle stroke 90 mm

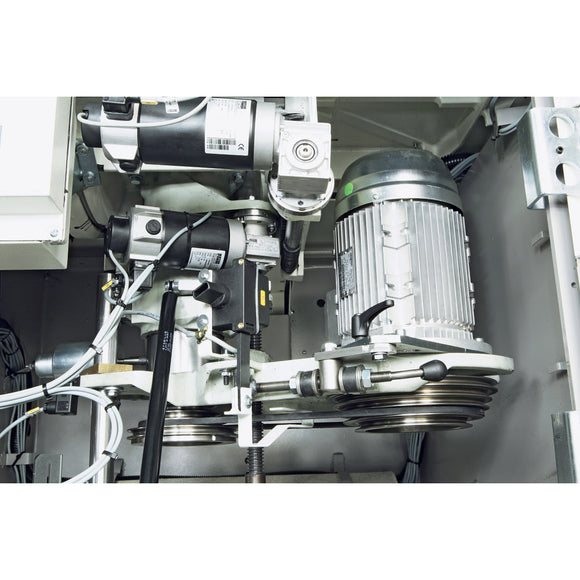

• Motor power 5.0 kW
• Net weight 400 kg
• Space requirement length 3150 mm
• Space requirement width/depth 2170 mm
• Spindle speed(s) 3000/4500/6000 / 8000/10000 min¯¹
• Stop extraction port diameter 1 x 120 mm
• Supply voltage 400 V
• Usable spindle length 140 / 170 mm
• Work area length 5000 mm
• Work area width/depth 5000 mm
• Work table length 1200 mm
• Work table width 730 mm

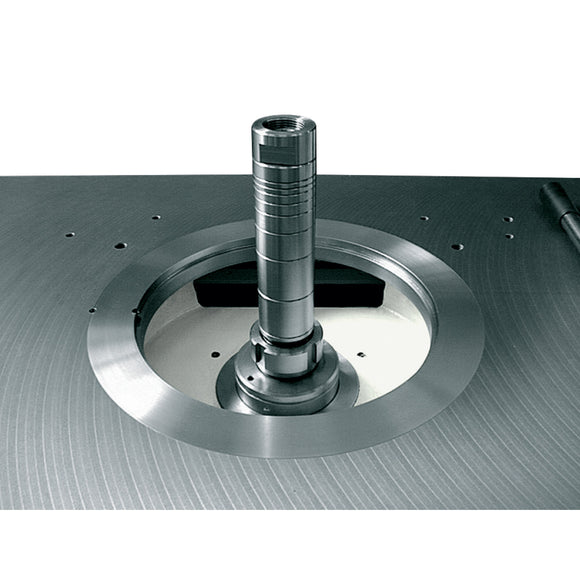

• Rigid milling spindle
• Speed ​​indicator via LED on the front
• Aluminum stop jaws
• Bogenfrässchutzhaube
• Right-left rotation of the milling spindle
• MK 4 change milling spindle
• Milling stop with crank / hand wheel adjustment from the front with numeric display
• Side tenoning slide table with tiltable telescopic ruler with four stops and reference device
• Splinter wood at the stop
• Emergency switch
• Protection arm for operator
• Micro-protection switch with speed limitation 3000/4500 min-1
• Tenoning hood
• Table extension right
• Extractable workpiece support on the front
