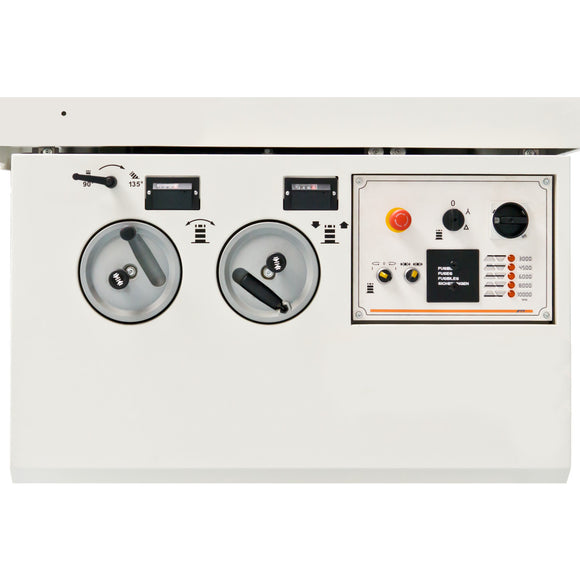

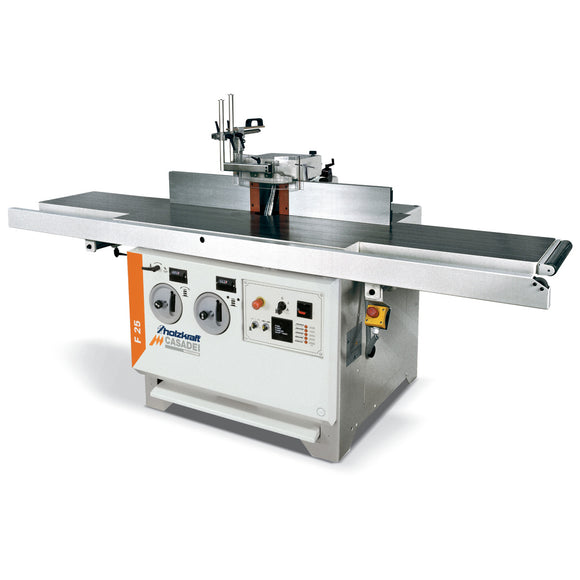

Table router CASADEI F 25 TL

• Curved cutting guard ✔
• Extraction port diameter 80 mm
• Frequency 50 Hz

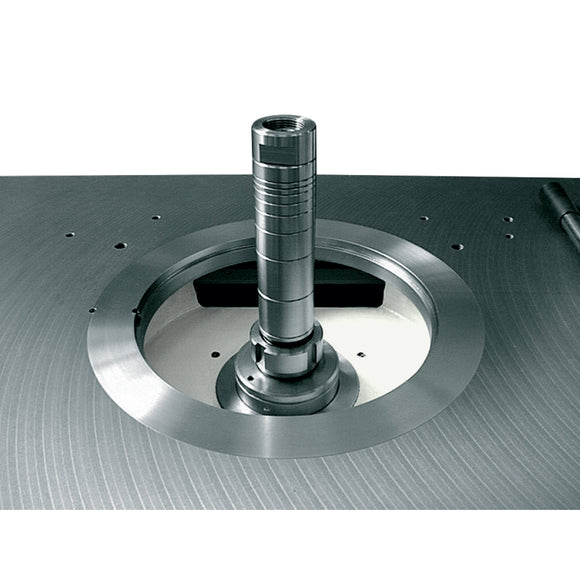

• Interchangeable spindle MT 4
• Machine body length 1194 mm
• Machine body width/length 1280 mm
• Max. tool diamter form milling 160 mm
• Max. tool diamter lowerable 320 x 60 mm
• Max. tool diamter profile milling 250 mm
• Max. tool diamter tenoning milling 350 mm
• Milling spindle stroke 90 mm
• Motor power 7.0 kW
• Net weight 480 kg
• Number of extraction ports 2
• Number of stop extraction ports 1
• Space requirement length 3197 mm
• Space requirement width/depth 1895 mm
• Spindle angle -45 – +45 °
• Spindle speed(s) 3000/4500/6000 / 8000/10000 min¯¹
• Stop extraction port diameter 120 mm
• Supply voltage 400 V
• Table height 923 mm
• Usable spindle length 140/180 mm
• Work area length 3700 mm
• Work area width/depth 5000 mm
• Work table length 1200 mm
• Work table width 810 mm

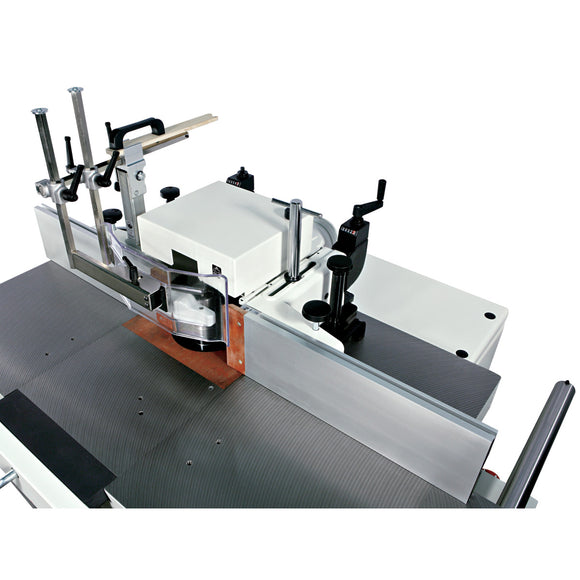

• Sliding carriage for small tenoning operations with telescopic stop and eccentric clamp (max. tool Ø 250 mm)
