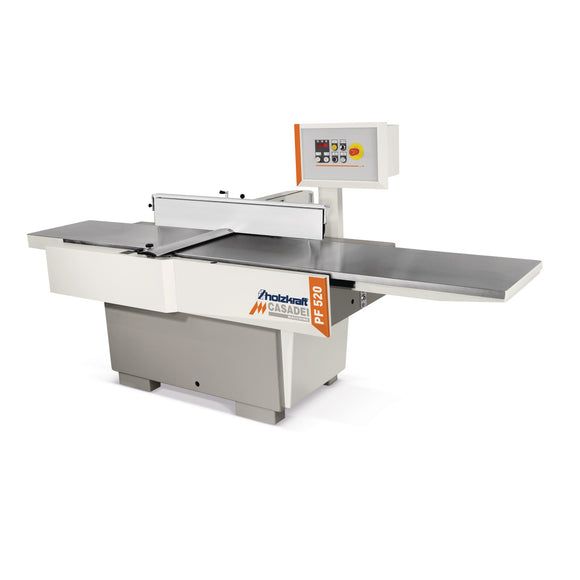

Surface planer CASADEI PF 520 M TERSA

• Extraction port diameter thickness 120 mm
• Frequency 50 Hz
• Length 3005 mm
• Machine body length 1230 mm
• Machine body width/length 668 mm
• Max. cutting depth of joints 8 mm
• Max. cutting depth thickness 8 mm
• Max. planing width 520 mm
• Motor power 5 kW
• Net weight 870 kg
• Number of planing blades 4 St
• Planing shaft diameter 120 mm
• Planing shaft speed 5000 min¯¹
• Planing stop height 160 mm
• Planing stop length 1100 mm
• Planing stop pivoting range 90 – 45 °
• Space requirement length 3005 mm
• Space requirement width/depth 1457 mm
• Supply voltage 400 V
• Task table length 1775 mm
• Total length of table 3000 mm
• Width 1457 mm
• Work area length 1000 mm
• Work area width/depth 3500 mm
• Working height 844 mm
