Surface and thickness planer CASADEI PFS 520

€24.341,70 EUR (€19.790,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5221631 Barcode: 4036351215134

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

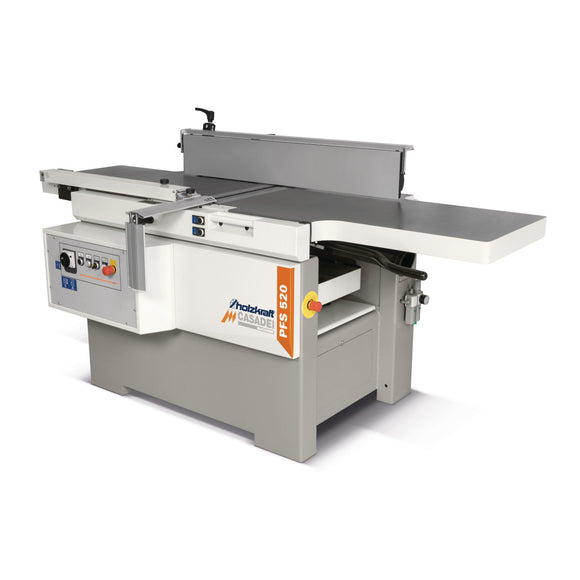

Surface and thickness planer CASADEI PFS 520.
  • Sturdy cast iron steel construction
  • Large, ribbed cast iron dressing tables
  • Smooth running due to high dead weight
  • Four feed speeds
  • Motorized thicknessing table stroke with two speeds and digital display
  • Link pressure beam in the infeed
  • Precision bearing mounted four-knife shaft,

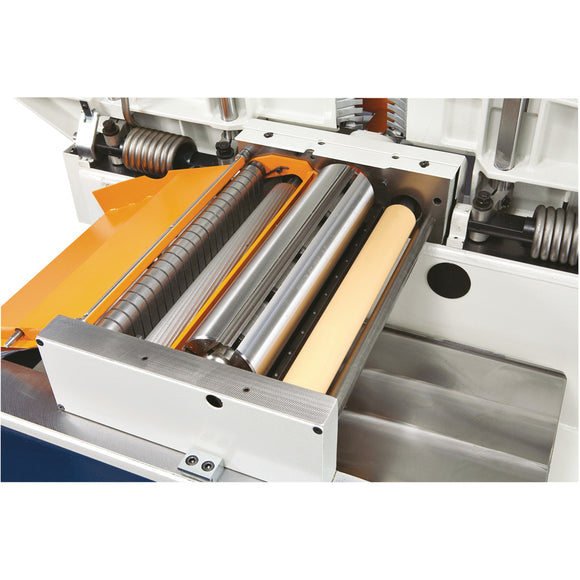

  • Helical toothed steel infeed roller for particularly even and gentle wood feed
  • Pull-out roller with rubber coating

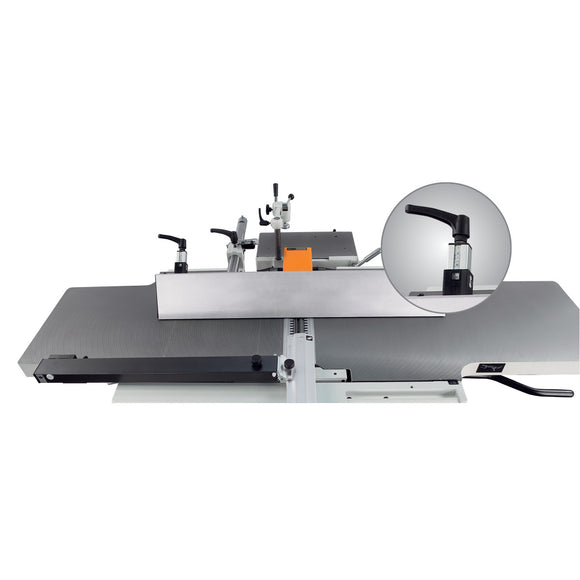

  • Large dressing fence, tiltable 90 to +45
  • Auxiliary fence as standard
  • Powerful industrial motor

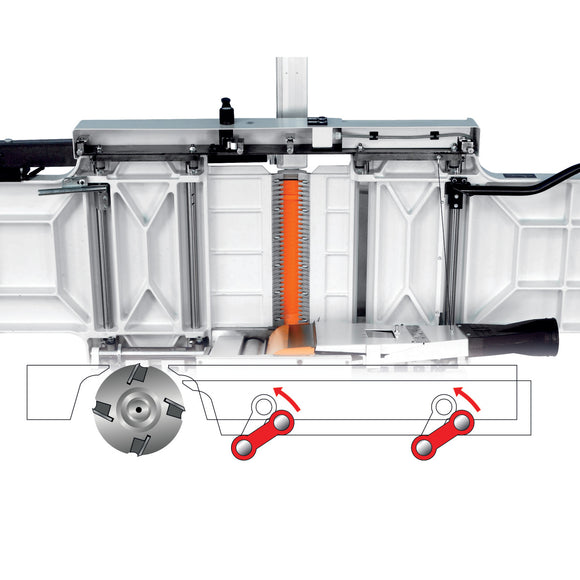

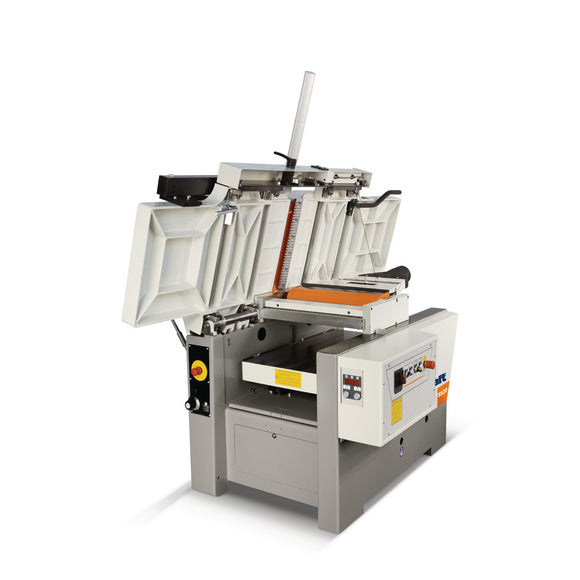

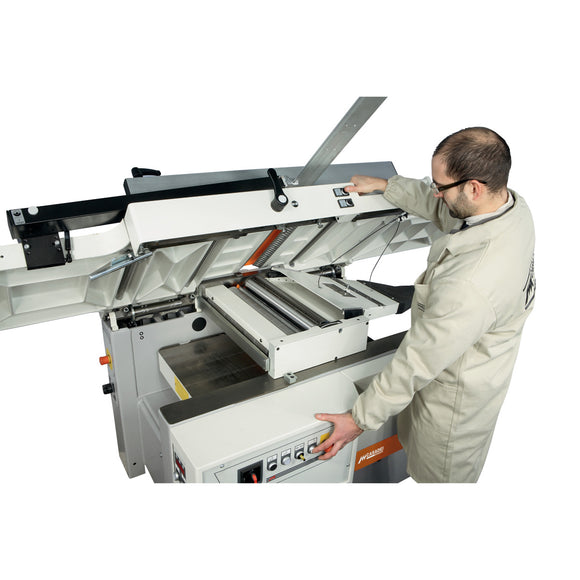

  • Pneumatic quick changeover system with pneumatic lifting and lowering of the dressing table
  • The connection position of the suction is always in the same place for both planing and thicknessing, so there is no need for an additional suction hose or awkward plugging and routing around the machine


SCM Group S.
Via del Lavoro 1/3-, Thiene-Vicenza, Italy
/>
.
  • Extraction port diameter thickness 120 mm
  • Feed speed 5/8/12/18 m/min
  • Frequency 50 Hz
  • Infeed table width 520 mm
  • Length 2300 mm
  • Machine body length 1235 mm
  • Machine body width/length 850 mm
  • Max. cutting depth of joints 6 mm
  • Max. cutting depth thickness 8 mm
  • Max. planing width 520 mm
  • Motor power 7 kW
  • Net weight 980 kg
  • Number of planing blades 4 St
  • Planing shaft diameter 120 mm
  • Planing shaft speed 5000 min¯¹
  • Planing stop height 190 mm
  • Planing stop length 1200 mm
  • Planing stop pivoting range 90 – 45 °
  • Space requirement length 2300 mm
  • Space requirement width/depth 1610 mm
  • Supply voltage 400 V
  • Task table length 1200 mm
  • Thicknessing table width 520 mm
  • Total length of table 2300 mm
  • Width 1100 mm
  • Work area length 1000 mm
  • Work area width/depth 3500 mm
  • Working height 930 mm
  • Working height max. thickness 250 mm
  • Working height min. thickness 3.5 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

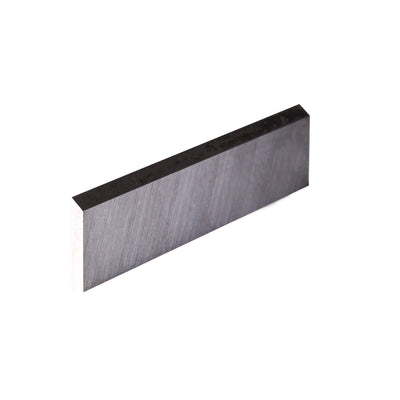

Strip planer knife 520 x 35 x 3 mm HSS (4 pieces) Strip planer knife 520 x 35 x 3 mm HSS (4 pieces) - 0

Strip planer knife 520 x 35 x 3 mm HSS (4 pieces)

Holzstar

€141,45 EUR
Enquire
First feed roller steel, segmented

First feed roller steel, segmented

Holzkraft

Enquire
Two rollers in the thicknessing table without drive

Two rollers in the thicknessing table without drive

Holzkraft

Enquire

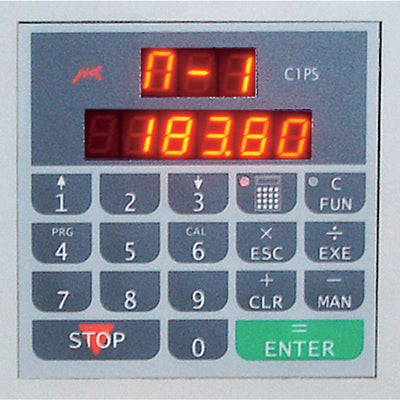

Electronic thickness table positioning Electronic thickness table positioning - 0
