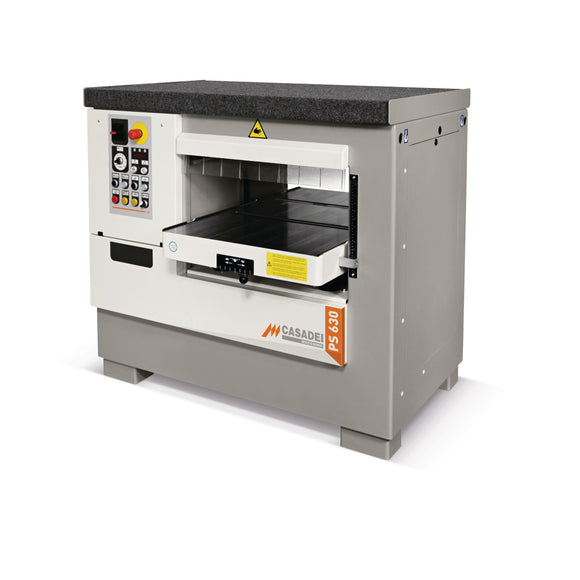

Thicknessing plane CASADEI PS 630 TERSA.
  • Motorized thickness table lift with two speeds and digital display
  • The tables are made of rippled gray cast iron
  • 4 feed rates
  • Infinitely variable feed rate adjustment of 4-20 m / min. Processing height when planing 300 mm

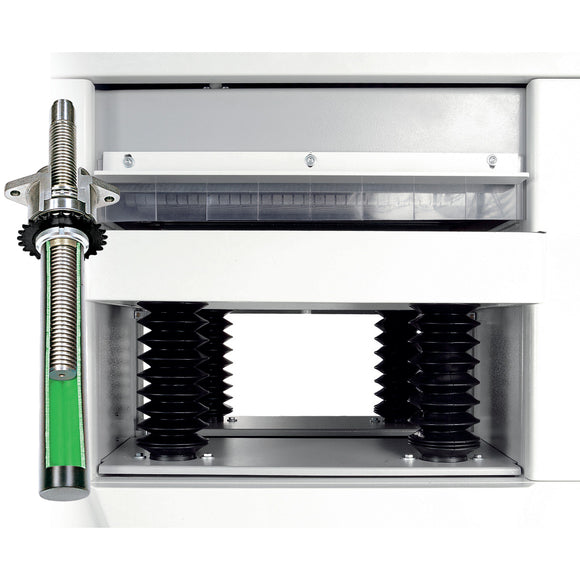

  • The worktable is mounted on four large trapezoidal threaded spindles, which ensure maximum stability under all working conditions
  • Standard with electric table adjustment
  • Due to the special lifting device, the table position is perfectly maintained even without locking

  • Massive kickbacks made of steel

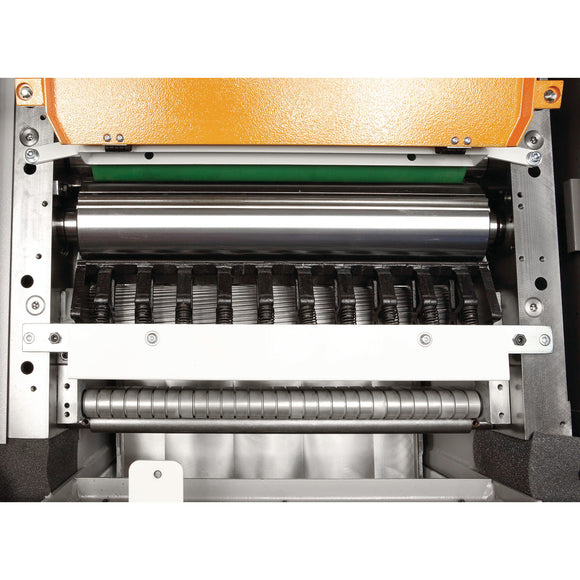

  • Helical steel pickup roller and segmental pressure beam
  • Rubber coated extraction roller
  • The rollers are easily replaceable


SCM Group S.
Via del Lavoro 1/3-, Thiene-Vicenza, Italy
/>
.
  • Extraction port diameter thickness 150 mm
  • Feed speed stepless, 4 - 20 m/min
  • Frequency 50 Hz
  • Length 1305 mm
  • Machine body length 1305 mm
  • Machine body width/length 731 mm
  • Max. cutting depth thickness 8 mm
  • Max. planing width 630 mm
  • Motor power 9 kW
  • Net weight 810 kg

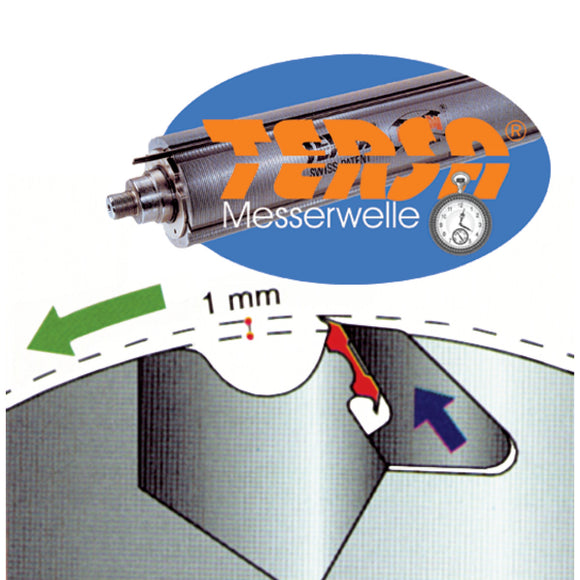

  • Number of planing blades 4 St
  • Planing shaft diameter 120 mm
  • Planing shaft speed 4500 min¯¹
  • Space requirement height 1165 mm
  • Space requirement length 1305 mm
  • Space requirement width/depth 1080 mm
  • Supply voltage 400 V
  • Thicknessing table length 640 mm
  • Thicknessing table width 1000 mm
  • Width 1080 mm
  • Work area length 1000 mm
  • Work area width/depth 2000 mm
  • Working height max. thickness 300 mm
  • Working height min. thickness 3.5 mm
  • Working length min. thickness 260 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Reversible planer knife Tersa 630 x 10 x 2.3 mm Chrome (4 pieces) Reversible planer knife Tersa 630 x 10 x 2.3 mm Chrome (4 pieces) - 0

Reversible planer knife Tersa 630 x 10 x 2.3 mm Chrome (4 pieces)

Holzkraft

€116,23 EUR
Enquire
Reversible planer knife Tersa 630 x 10 x 2.3 mm M+ HSS (4 pieces) Reversible planer knife Tersa 630 x 10 x 2.3 mm M+ HSS (4 pieces) - 0

Reversible planer knife Tersa 630 x 10 x 2.3 mm M+ HSS (4 pieces)

Holzkraft

€151,17 EUR
Enquire
First feed roller rubber-coated

First feed roller rubber-coated

Holzkraft

Enquire

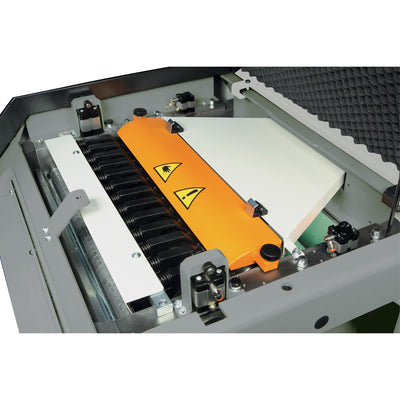

Pneumatic pressure adjustment Pneumatic pressure adjustment - 0
