Surface and thickness planer CASADEI PFS 520 TERSA

€25.325,70 EUR (€20.590,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5221633 Barcode: 4036351041405

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

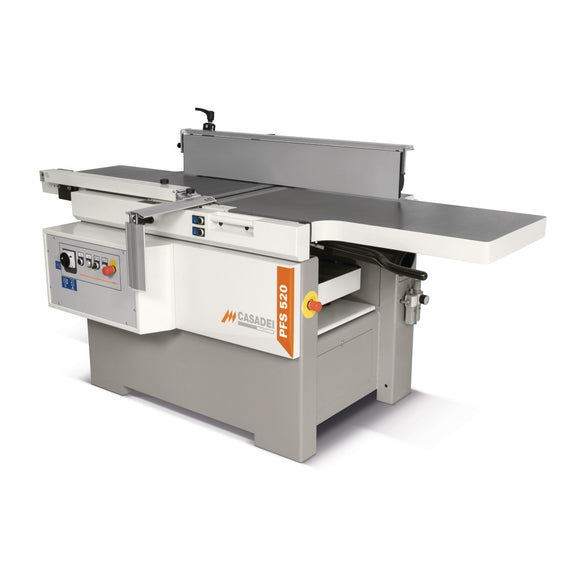

Surface and thickness planer CASADEI PFS 520 TERSA.
  • Sturdy cast iron steel construction
  • Large, ribbed cast iron dressing tables
  • Smooth running due to high dead weight
  • Four feed speeds
  • Motorized thicknessing table stroke with two speeds and digital display
  • Link pressure beam in the infeed

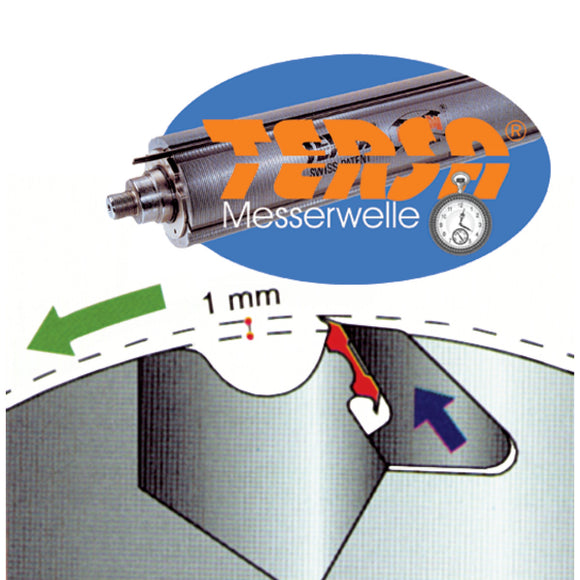

  • Precision bearing mounted four-knife shaft,

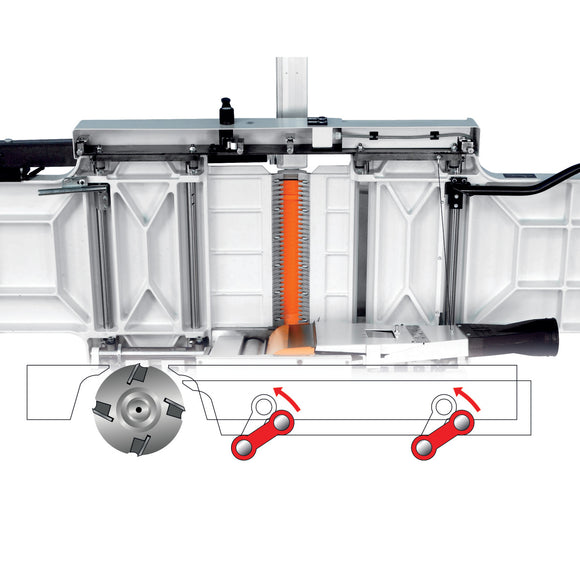

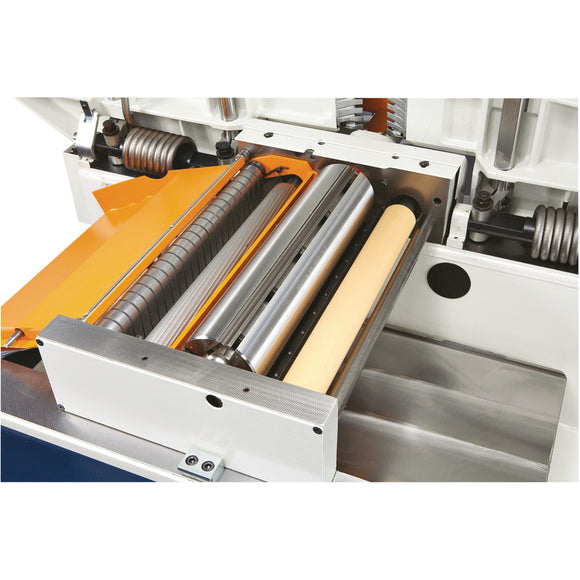

  • Helical toothed steel infeed roller for particularly even and gentle wood feed
  • Pull-out roller with rubber coating

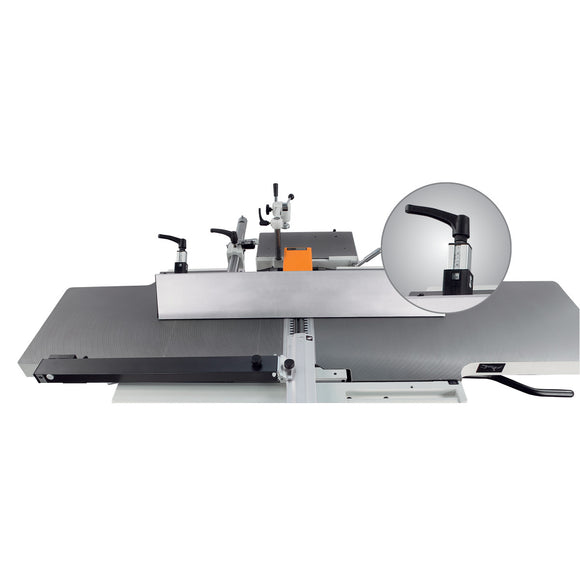

  • Large dressing fence, tiltable 90 to +45
  • Auxiliary fence as standard
  • Powerful industrial motor

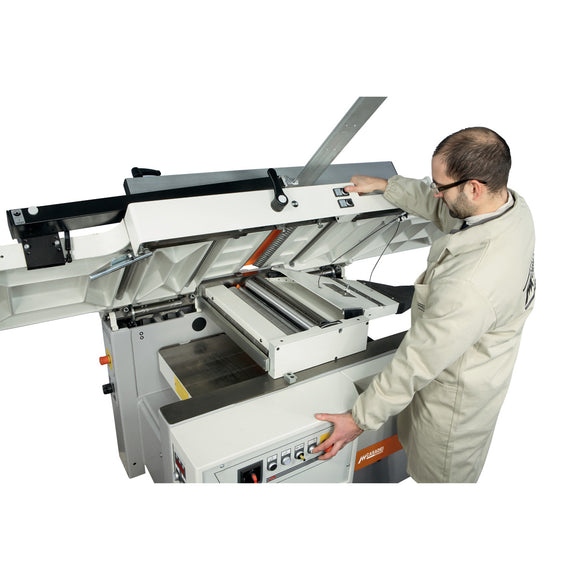

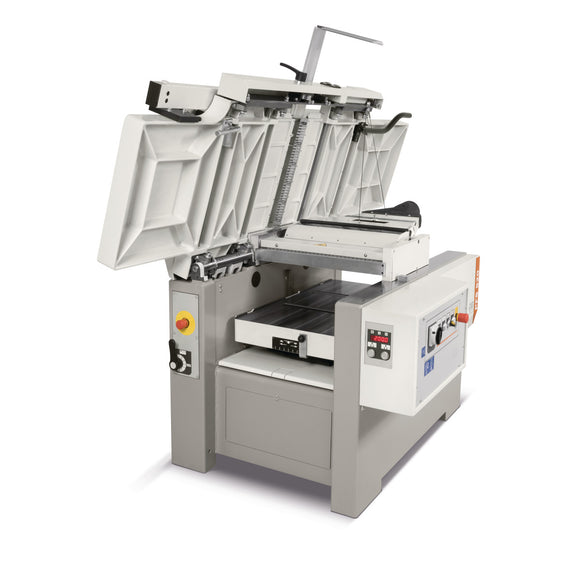

  • Pneumatic quick changeover system with pneumatic lifting and lowering of the dressing table
  • The connection position of the suction is always in the same place for both planing and thicknessing, so there is no need for an additional suction hose or awkward plugging and routing around the machine


SCM Group S.
Via del Lavoro 1/3-, Thiene-Vicenza, Italy
/>
.
  • Extraction port diameter thickness 120 mm
  • Feed speed 5/8/12/18 m/min
  • Frequency 50 Hz
  • Infeed table width 520 mm
  • Length 2300 mm
  • Machine body length 1235 mm
  • Machine body width/length 850 mm
  • Max. cutting depth of joints 6 mm
  • Max. cutting depth thickness 8 mm
  • Max. planing width 520 mm
  • Motor power 7 kW
  • Net weight 980 kg
  • Number of planing blades 4 St
  • Planing shaft diameter 120 mm
  • Planing shaft speed 5000 min¯¹
  • Planing stop height 190 mm
  • Planing stop length 1200 mm
  • Planing stop pivoting range 90 – 45 °
  • Space requirement length 2300 mm
  • Space requirement width/depth 1610 mm
  • Supply voltage 400 V
  • Task table length 1200 mm
  • Thicknessing table width 520 mm
  • Total length of table 2300 mm
  • Width 1100 mm
  • Work area length 1000 mm
  • Work area width/depth 3500 mm
  • Working height 930 mm
  • Working height max. thickness 250 mm
  • Working height min. thickness 3.5 mm
