CNC drilling machine startech cn v

€38.117,70 EUR (€30.990,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5509010 Barcode: 4036351276975

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

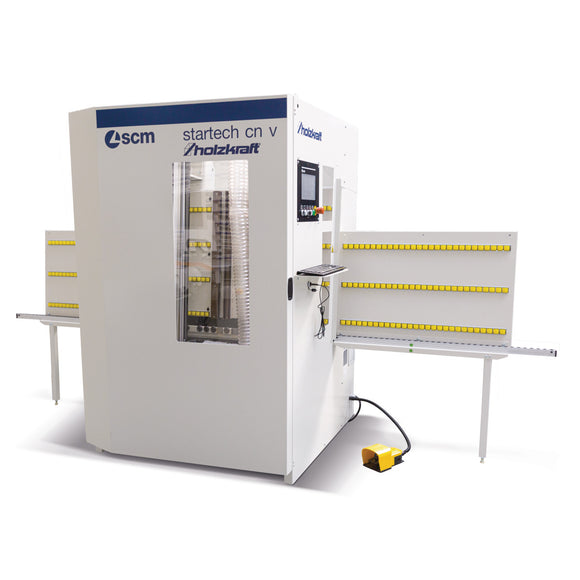

CNC drilling machine startech cn v.

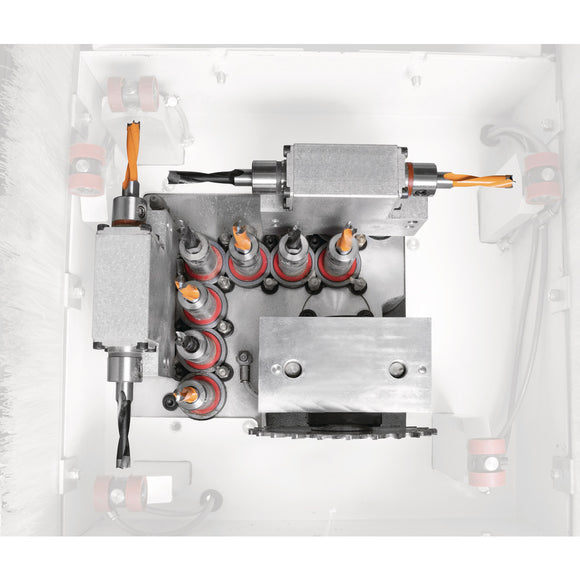

  • One boring head with seven vertical, four horizontal spindles and a grooving unit li>

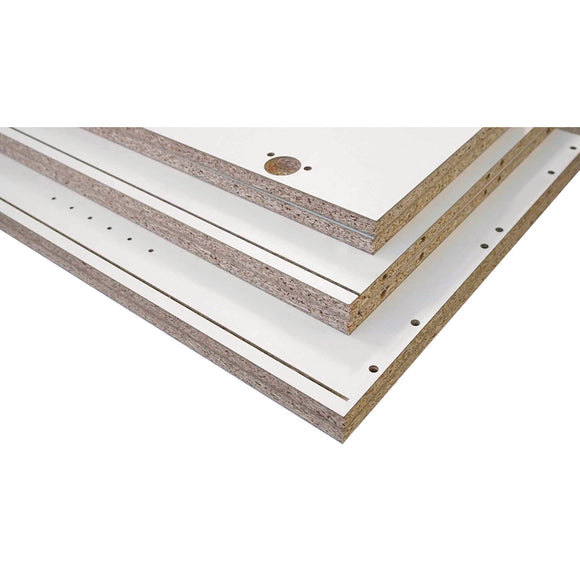

  • For holes on the top of the board and on all four sides of the workpiece, as well as grooving in the X-direction li>
  • grooves Through holes in the phenol resin worktable li>

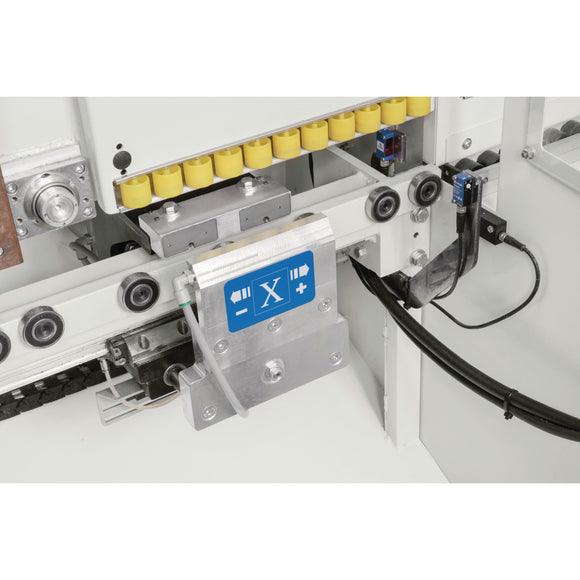

  • The workpiece movements in the X- / Y- and Z direction take place on linear prism guides li>
  • Compact external dimensions li>
  • Including roller conveyor and edge applicator li > ul> CNC control b>

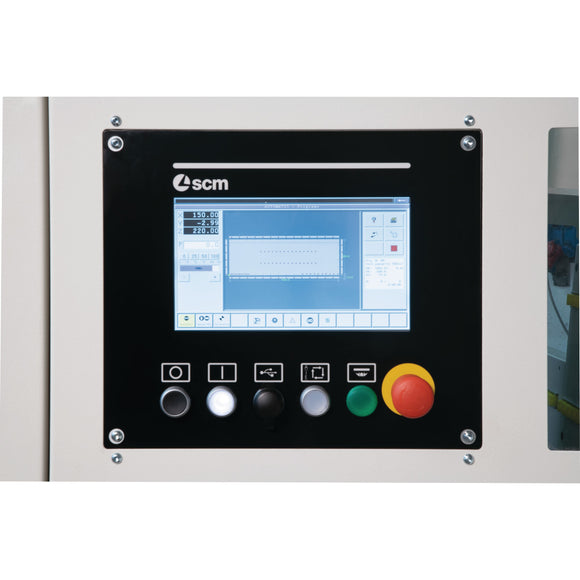

    • Large 10 "touch screen li>
    • Programming via PC possible li>
    • Import of CNC programs via USB -Dongle li>
    • Automatic optimization of drilling operations li>
    • Plate zero shift possible li> ul>

      SCM Group S. MINIMAX
      Via Casale 450, Villa Verucchio (RN), Italy


      .
  • Air requirement extraction unit 820 m³/h
  • Compressed air requirement 90 l/min
  • Extraction duct nominal width outside 120 mm
  • Frequency 50 Hz
  • Grooving saw speed 5700 min¯¹

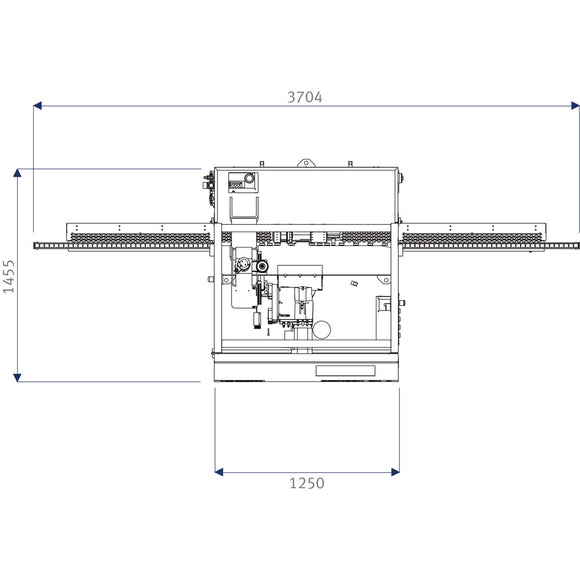

  • Height 2209 mm
  • Length 3704 mm
  • Max. tool diameter 35 mm
  • Max. workpiece dimensions X 3000 mm
  • Max. workpiece dimensions Y 900 mm
  • Max. workpiece dimensions Z 50 mm
  • Min. workpiece dimensions X 300 mm
  • Min. workpiece dimensions Y 90 mm
  • Min. workpiece dimensions Z 10 mm
  • Motor power 2,2 kW
  • Net weight 1200 kg
  • Pneumatics operating pressure 6.5 bar
  • Spindle speed 4460 min¯¹
  • Supply voltage 400 V
  • Width 1455 mm
  • Roller conveyor for workpiece feed and discharge
  • Edge scraper
  • Print force Y axis for hard material processing

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Drill Starter Set Startech Drill Starter Set Startech - 0

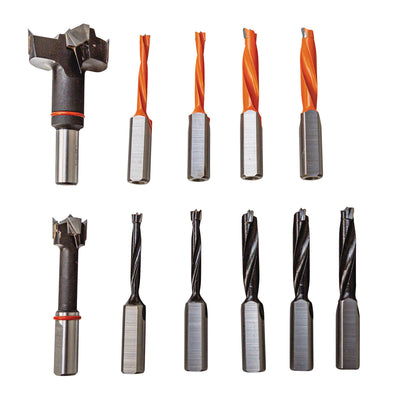

Drill Starter Set Startech

Holzkraft

€276,75 EUR
Enquire
Lubricating grease MU EP 0 300 ml

Lubricating grease MU EP 0 300 ml

Holzkraft

€24,60 EUR
Enquire
Keyboard Qwerty

Keyboard Qwerty

Holzkraft

€392,37 EUR
Enquire
Barcode reader Wireless Barcode reader Wireless - 0

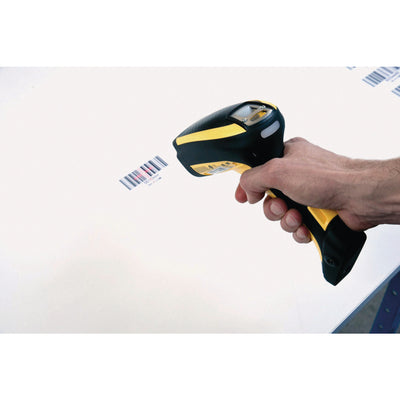

Barcode reader Wireless
