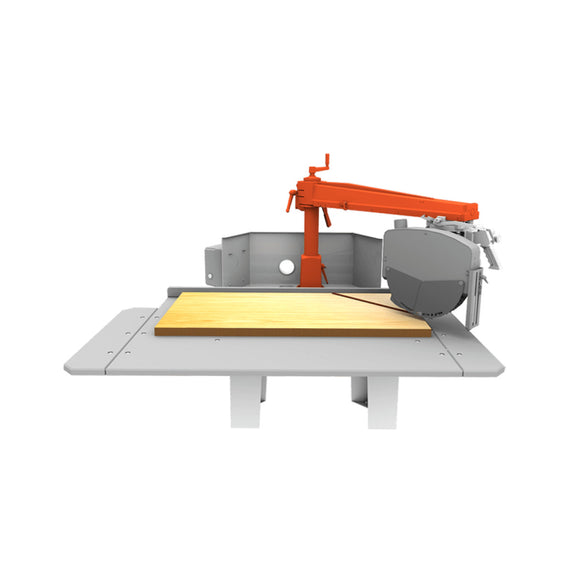

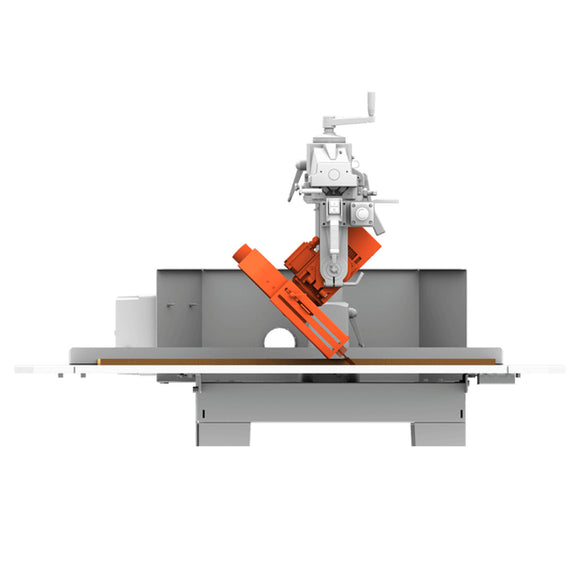

Radial arm saw RAS 55.
  • Ideal for long cutting lengths, for example in carpentry, kitchen construction or for pallet manufacturers
  • Small space requirement and versatile use for wood, plastic or aluminum
  • Quick changeover between double mitre cuts or cutting to length
  • Robust cast iron swivel arm with interchangeable square guides
  • Movable saw unit with return spring
  • Saw unit can be swiveled by 45 degrees on one side
  • Motor with mechanical brake
  • Roller conveyor for both sides and cutting line laser available as accessories


.
  • (Main) saw blade diameter 400 mm
  • (Main) saw blade speed 2800 min¯¹
  • Cutting capacity 45° 125 x 125 mm
  • Diameter saw blade bore 30 mm
  • Frequency 50 Hz
  • Height 1580 mm
  • Length 1690 mm
  • Max. cross section 545 x 20 mm
  • Max. cutting height 0°/45° 125 / 80 mm
  • Net weight 220 kg
  • Output power (motor power) 3 kW
  • Saw blade angle -45 – 0 °
  • Saw blade protection extraction port diameter 60 mm
  • Sound power level 88 dB(A)
  • Sound pressure level 92 dB(A)
  • Supply voltage 400 V
  • Swivel angle saw arm -45 - 45 °
  • Table length 1690 mm
  • Table width 1155 mm
  • Width 1560 mm
  • Work height 800 mm
  • Widia saw blade Ø 400 x 3.8 x 30 mm Z60

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

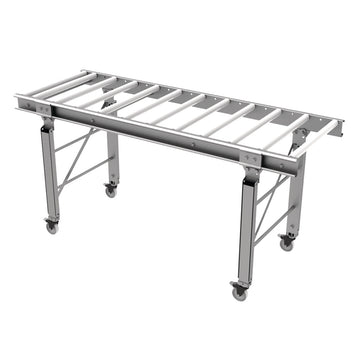

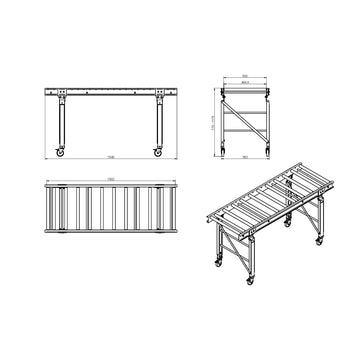

Roller conveyor 1500 x 500 mm Roller conveyor 1500 x 500 mm - 0

Roller conveyor 1500 x 500 mm

Holzkraft

€1.966,77 EUR
Enquire

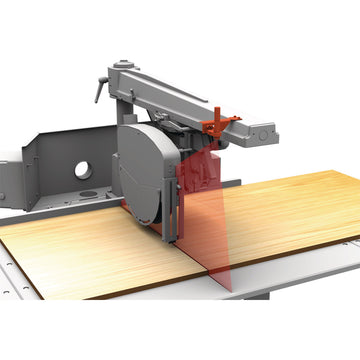

Cutting line laser with attachment kit Cutting line laser with attachment kit - 0
