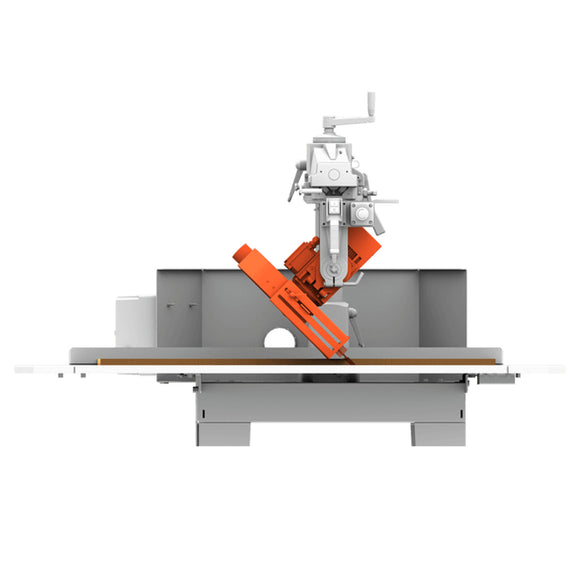

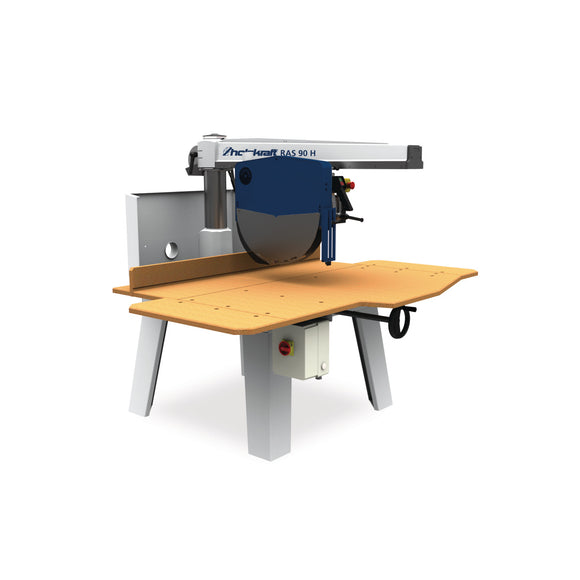

Radial arm saw RAS 90 H.
  • Ideal for long cutting lengths, for example in carpentry, kitchen construction or for pallet manufacturers
  • Small space requirement and versatile use for wood, plastic or aluminum
  • Saw blade with a large diameter of 565 mm and chip limiter
  • Quick changeover between double mitre cuts or cutting to length
  • Robust cast iron swivel arm with interchangeable square guides
  • Movable saw unit with return spring
  • Saw unit can be swiveled by 45 degrees on one side
  • Height adjustment of the saw arm conveniently via handwheel on the underside of the table
  • Motor with mechanical brake
  • Roller conveyor for both sides and cutting line laser available as accessories


.
  • (Main) saw blade diameter 565 mm
  • (Main) saw blade speed 2800 min¯¹
  • Cutting capacity 45° 280 x 200 mm
  • Diameter saw blade bore 30 mm
  • Frequency 50 Hz
  • Height 1720 mm
  • Length 1970 mm
  • Max. cross section 850 x 20 mm
  • Max. cutting height 0°/45° 200 / 135 mm
  • Net weight 362 kg
  • Output power (motor power) 5.5 kW
  • Saw blade angle -45 - 0 °
  • Saw blade protection extraction port diameter 60 mm
  • Sound power level 88 dB(A)
  • Sound pressure level 92 dB(A)
  • Supply voltage 400 V
  • Swivel angle saw arm -45 - 45 °
  • Table length 1970 mm
  • Table width 1285 mm
  • Width 1740 mm
  • Work height 800 mm
  • Widia saw blade Ø 565 x 4.5 x 30 mm Z96 with chip limiter
