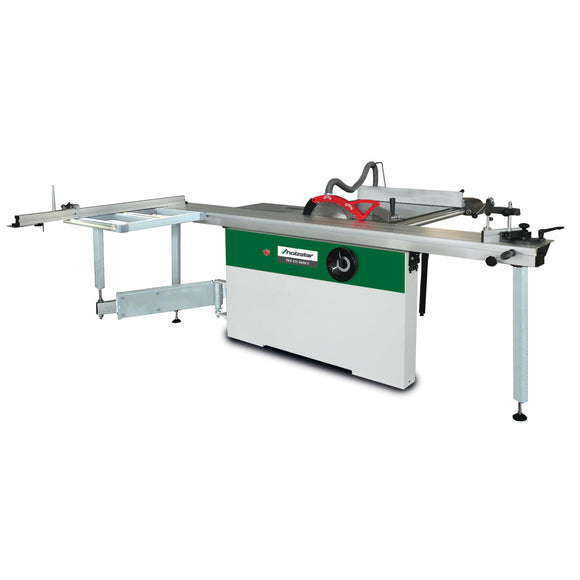

Sliding table saw FKS 315-2600 E media thumbnails
Sliding table saw FKS 315-2600 E-1
Sliding table saw FKS 315-2600 E-2

Sliding table saw FKS 315-2600 E

€4.623,57 EUR (€3.759,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5900318 Barcode: 4036351351344

14 Day
Return Policy

Guarantee

12 months

Fast
Delivery

Sold Out

Sliding table saw FKS E.
  • With scoring unit as standard
  • Telescopic fence that can be swiveled from -45° to +45° with finely adjustable fence flap
  • Robust and precise design with format sliding carriage
  • The cast iron work table enables low-vibration work
  • Saw blade height adjustment via a handwheel
  • Saw blade tilt adjustable from 90 to 45° via handwheel with scale
  • Stable saw unit guarantees vibration-free and precise work
  • Solid outrigger table with roller and telescopic arm for maximum stability
  • Mitre fence and hold-down device can be moved over the entire length of the carriage
  • Large aluminum parallel fence on round bar guide with fine adjustment
  • Powerful drive motor for constant cutting speed, even at a cutting height of 100 mm
  • Large work table and standard table extension for cutting widths up to mm


.
  • (Main) saw blade diameter 315 mm
  • (Main) saw blade speed 4500 min¯¹
  • Absorbed motor power 3,7 kW
  • Clamp sleigh ✔
  • Diameter scoring saw blade 90 mm
  • Eccentric clamp ✔
  • Extraction port diameter bottom 98 mm
  • Frequency 50 Hz
  • Height 1300 mm
  • Length 5700 mm
  • Machine body Weight 266 kg
  • Material roll on claming frame ✔
  • Max. cross cut width left from saw blade 2430 mm
  • Max. cutting height 45° 80 mm
  • Max. cutting height 90° 100 mm
  • Max. cutting width with rip fence 1220 mm
  • Motor speed 2800 min¯¹
  • Net weight 320 kg
  • Output power (motor power) 3,0 kW
  • Saw blade angle 90 - 45 °
  • Saw blade cover ✔
  • Saw blade protection extraction port diameter 40 mm
  • Scoring saw blade speed 8500 min¯¹
  • Scoring saw unit ✔
  • Sliding carriage Weight 54 kg
  • Sliding carriage length 2600 mm
  • Sliding carriage width 270 mm
  • Sound pressure level 85 dB(A)
  • Supply voltage 400 V
  • Table broadening ✔
  • Table length 1260 mm
  • Table lengthening ✔
  • Table width 800 mm
  • Trimming length 2600 mm
  • Width 3850 mm
  • Work height 870 mm
  • Saw blade 315 x 30 x 3 mm 24 teeth

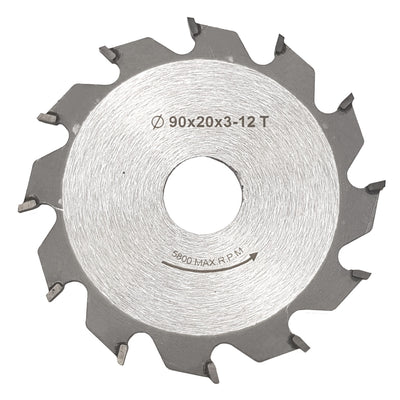

  • Scoring saw blade 90 x 20 x 3 mm 12 teeth
