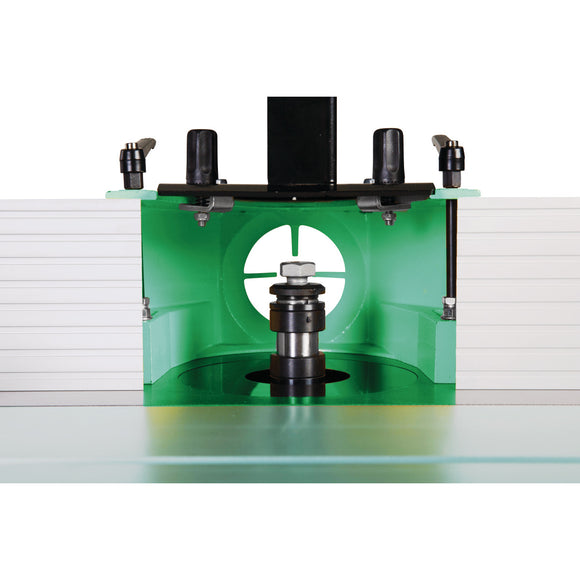

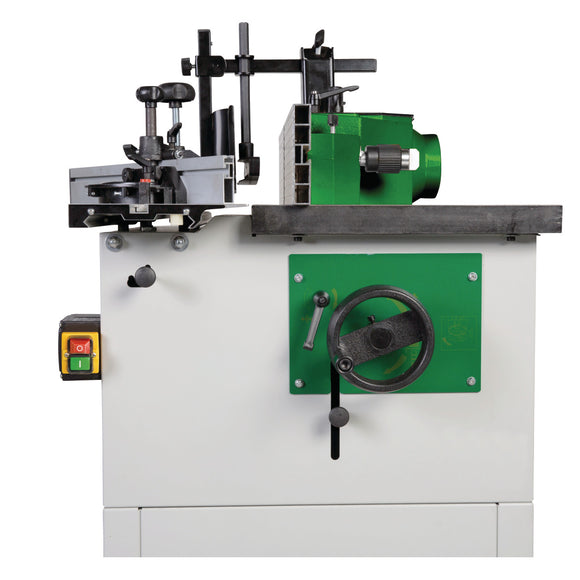

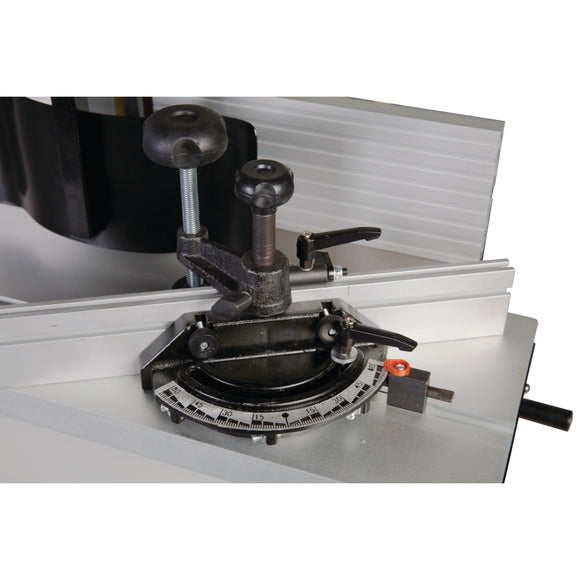

Table router TF 170 E (400 V)

• Absorbed motor power 1,5 kW
• Duty type drive motor S6
• Frequency 50 Hz
• Height 1140 mm
• Length 1000 mm
• Max. height ca. 1170 mm
• Max. length ca. 1000 mm
• Max. spindle protrusion over the table 105 mm
• Max. tool diamter 160 mm
• Max. width/depth ca. 950 mm
• Milling spindle stroke 105 mm
• Motor power 1,1 kW
• Net weight 96 kg
• Protection class drive motor IP54
• Sliding carriage height 850 mm
• Sliding carriage length 1000 mm
• Sliding carriage width 218 mm
• Spindle arbor diamter 30 mm
• Spindle speed(s) 1400/4000/6000/9000 min¯¹
• Supply voltage 400 V
• Table height 850 mm
• Total current draw 2.6 A
• Total rated value 1,5 kVA
• Width 900 mm
• Work table length 600 mm
• Work table width 400 mm

• substructure
• spindle protection
• Spindle fence
• Milling spindle with collet
