Surface and thickness planer ADH 260

€1.597,77 EUR (€1.299,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5903260 Barcode: 4036351000587

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

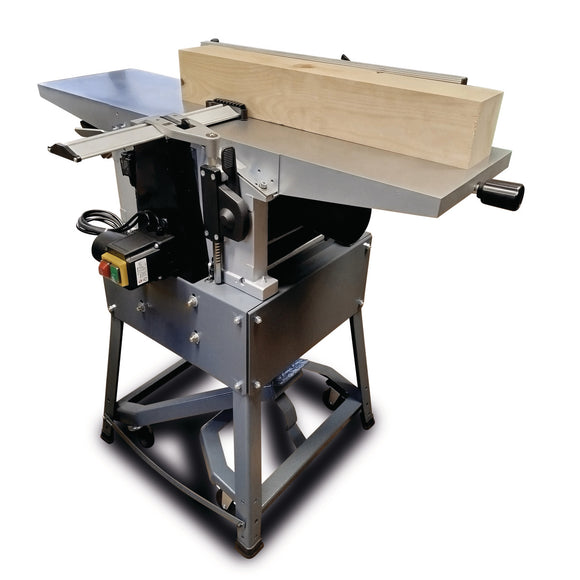

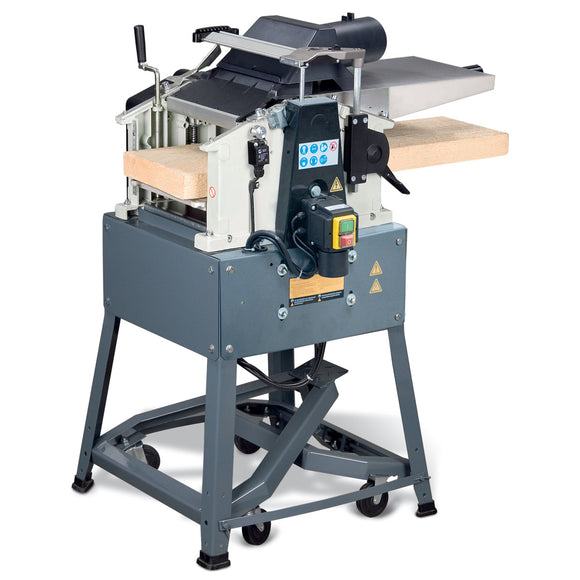

Surface and thickness planer ADH 260.
  • For angular jointing (90°) and precise planing of solid wood boards and strips
  • Simple and precise adjustment of the chip removal of up to 3 mm for dimensionally accurate thickness planing
  • Simple and convenient table height adjustment via a hand crank
  • Automatic workpiece feed (5 m/min)
  • A rubberized pull-out roller protects the surface during thickness planing

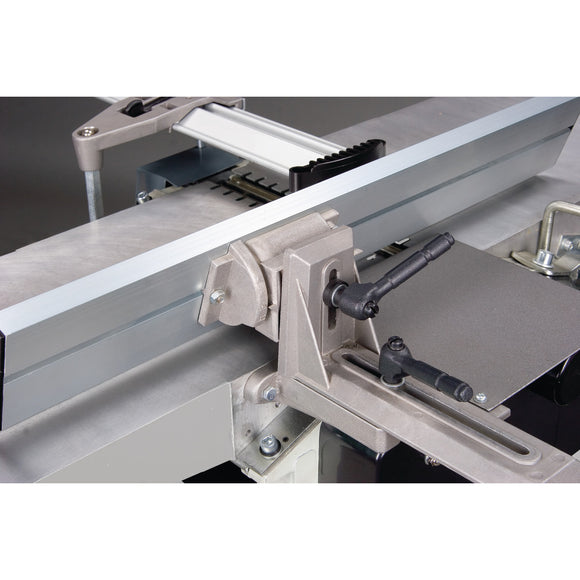

  • Easily adjustable aluminum planing fence, tiltable from 90 to +45°
  • Large dressing table made of ribbed die-cast aluminum
  • Cutterblock with 2 HSS planer knives

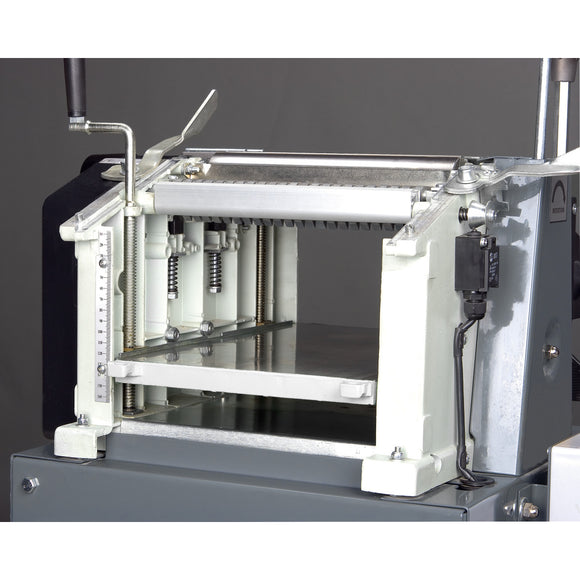

  • Large thicknessing table made of gray cast iron with ground surface, 4 bearings
  • Integrated, reversible chip extraction hood
  • Extraction hood is used for both planing and thicknessing

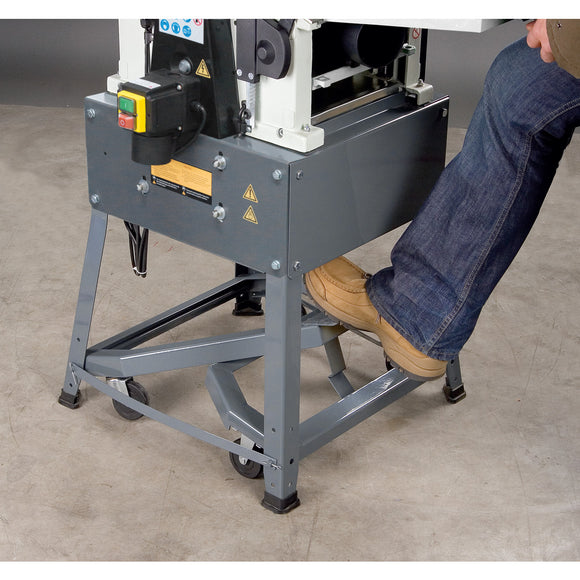

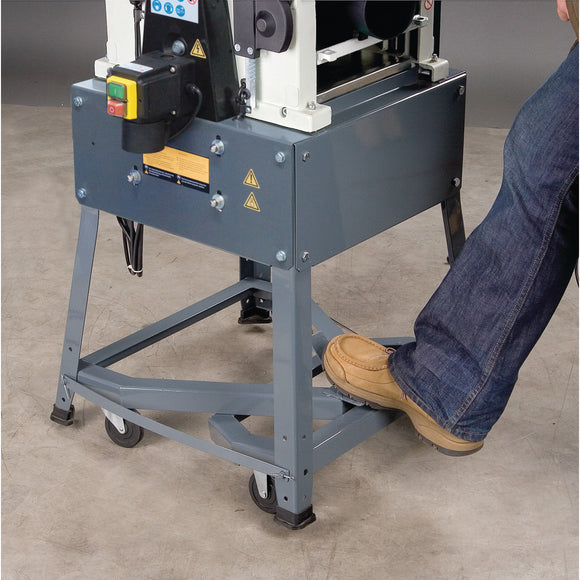

  • Substructure with integrated chassis enables easy transportation
  • Integrated cutterhead guard for safe operation


.
  • Absorbed motor power 2.0 kW
  • Duty type drive motor S1
  • Extraction port diameter thickness 120 mm
  • Feed speed 5 m/min
  • Frequency 50 Hz
  • Height 940 mm
  • Infeed table length 1030 mm
  • Infeed table width 280 mm
  • Length 1130 mm
  • Max. cutting depth of joints 3 mm
  • Max. planing width 260 mm
  • Motor power 1,5 kW
  • Net weight 66 kg
  • Number of planing blades 2 St
  • Planing shaft diameter 63 mm
  • Planing shaft speed 6500 min¯¹
  • Planing stop pivoting range 90 – 45 °
  • Supply voltage 230 V
  • Thicknessing table length 260 mm
  • Thicknessing table width 400 mm
  • Width 595 mm
  • Working height max. thickness 160 mm
  • Working height min. thickness 4 mm
  • Knife shaft with 2 HSS planing knives
  • Planer knife adjustment gauge
  • Machine base with chassis

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

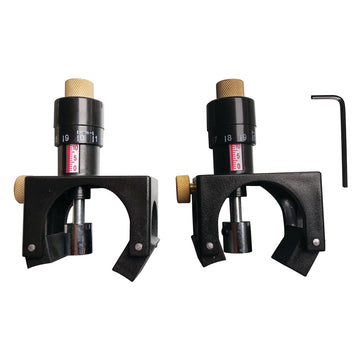

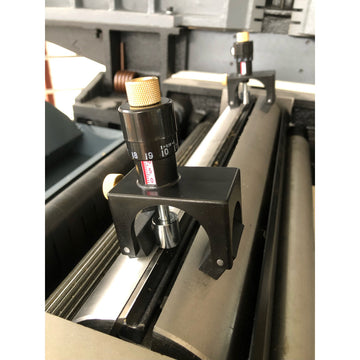

Magnetic planer blade setting gauge Magnetic planer blade setting gauge - 0

Magnetic planer blade setting gauge

Holzstar

€23,98 EUR
Enquire

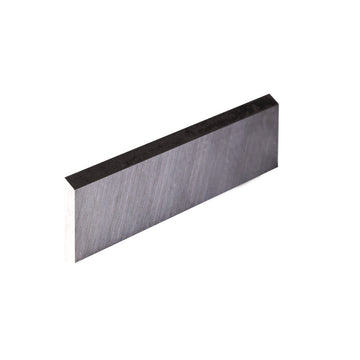

Strip planer knife 260 x 19.5 x 1 mm HSS (2 pieces) Strip planer knife 260 x 19.5 x 1 mm HSS (2 pieces) - 0
