Surface and thickness planer ADH 31-4 C-1
Surface and thickness planer ADH 31-4 C-2
Surface and thickness planer ADH 31-4 C-3
Surface and thickness planer ADH 31-4 C-4
Surface and thickness planer ADH 31-4 C-5
Surface and thickness planer ADH 31-4 C-6
Surface and thickness planer ADH 31-4 C-7
Surface and thickness planer ADH 31-4 C-8

Surface and thickness planer ADH 31-4 C

€3.811,77 EUR (€3.099,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5904013 Barcode: 4036351286462

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

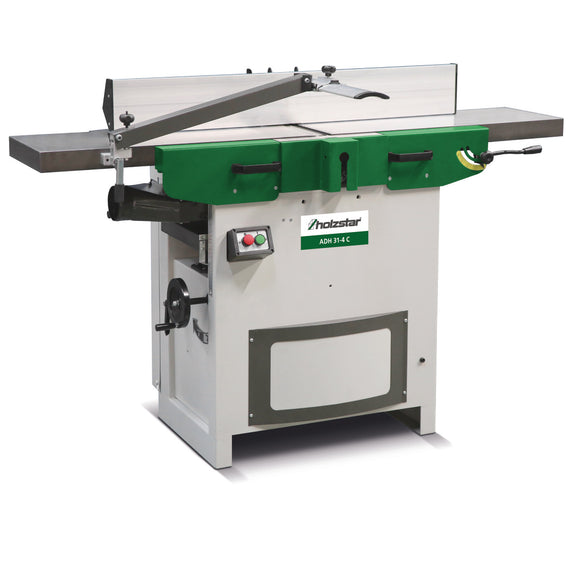

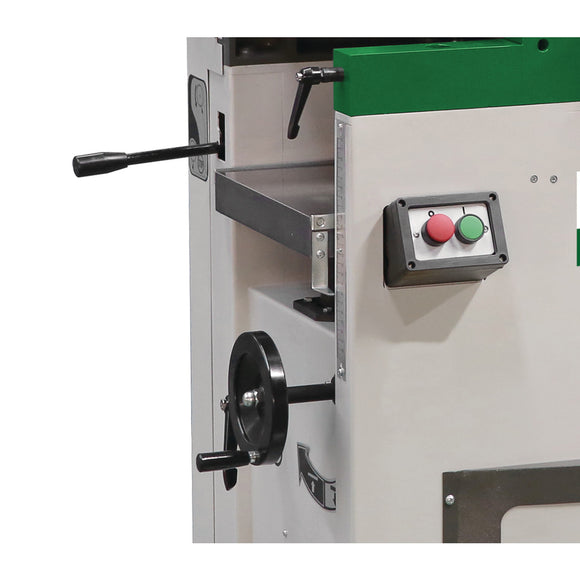

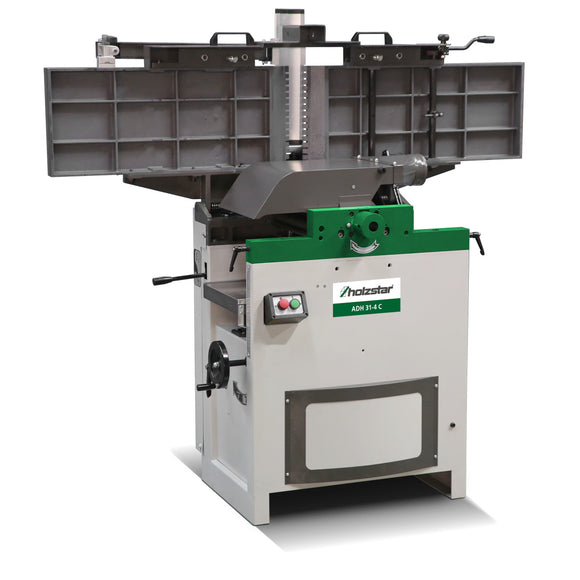

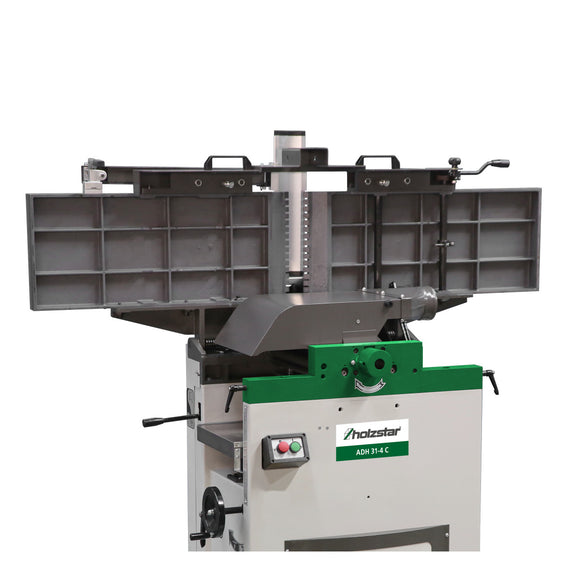

Surface and thickness planer ADH 31-4 C.
  • For angular joining (90°) and precise planing of solid wood boards, planks and strips
  • Automatic workpiece feed
    • < li>Integrated, foldable swarf extraction hood
  • Aluminum dressing stop that can be tilted comfortably by + 45°
  • Simple and precise adjustment of the chip removal
  • Large dimensioned dressing table made of ribbed aluminum die-cast
  • Large thickness table made of gray cast iron with a polished surface


.
  • Absorbed motor power 3,0 kW
  • Extraction port diameter joints 100 mm
  • Extraction port diameter thickness 100 mm
  • Feed speed 6 m/min
  • Frequency 50 Hz
  • Height 860 mm
  • Infeed table length 1560 mm
  • Infeed table width 320 mm
  • Length 1605 mm
  • Max. cutting depth of joints 3 mm
  • Max. cutting depth thickness 5 mm
  • Max. planing width 310 mm
  • Motor power 2,2 kW
  • Net weight 292 kg
  • Number of planing blades 4 St
  • Planing shaft diameter 95 mm
  • Planing shaft speed 4300 min¯¹
  • Planing stop pivoting range 90 – 45 °
  • Sound power level 89 dB(A)
  • Sound pressure level 85 dB(A)
  • Supply voltage 400 V
  • Thicknessing table length 750 mm
  • Thicknessing table width 307 mm
  • Width 630 mm
  • Working height 855 mm
  • Working height max. thickness 220 mm
  • Working height min. thickness 5 mm
Strip planer knife set

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

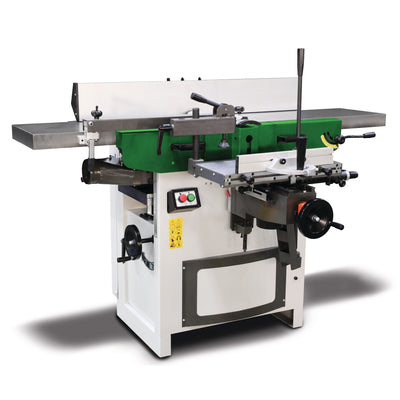

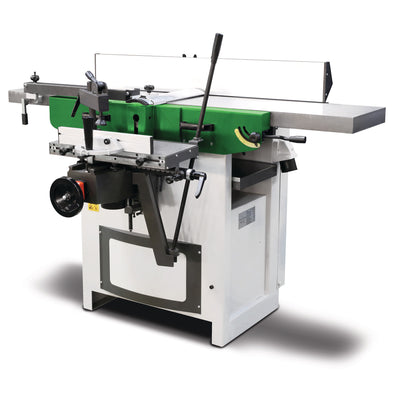

Slot mortising equipment LLBE-ADH-31/41-4C Slot mortising equipment LLBE-ADH-31/41-4C - 0

Slot mortising equipment LLBE-ADH-31/41-4C

Holzstar

€785,97 EUR
Enquire
Magnetic planer blade setting gauge Magnetic planer blade setting gauge - 0

Magnetic planer blade setting gauge

Holzstar

€23,98 EUR
Enquire
Reversible planer knife 310 x 18.6 x 1 mm standard (4 pieces)

Reversible planer knife 310 x 18.6 x 1 mm standard (4 pieces)

Holzkraft

€98,15 EUR
Enquire
Strip planer knife 310 x 30 x 3 mm HSS (4 pieces) Strip planer knife 310 x 30 x 3 mm HSS (4 pieces) - 0

Strip planer knife 310 x 30 x 3 mm HSS (4 pieces)

Holzstar

€92,13 EUR
Enquire

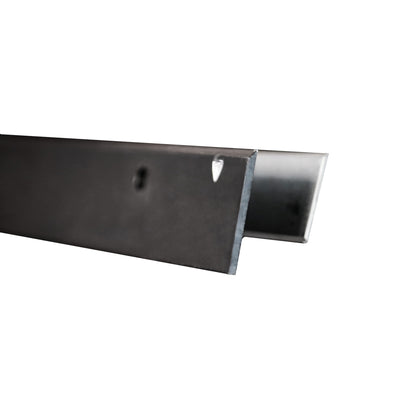

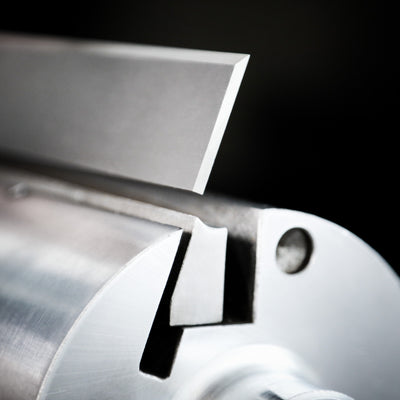

Reversible planing knife conversion kit 310 x 18.6 x 1 mm Standard Reversible planing knife conversion kit 310 x 18.6 x 1 mm Standard - 0
