Surface and thickness planer ADH 26C Spiral (400 V)

€2.557,17 EUR (€2.079,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5904029 Barcode: 4036351362852

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

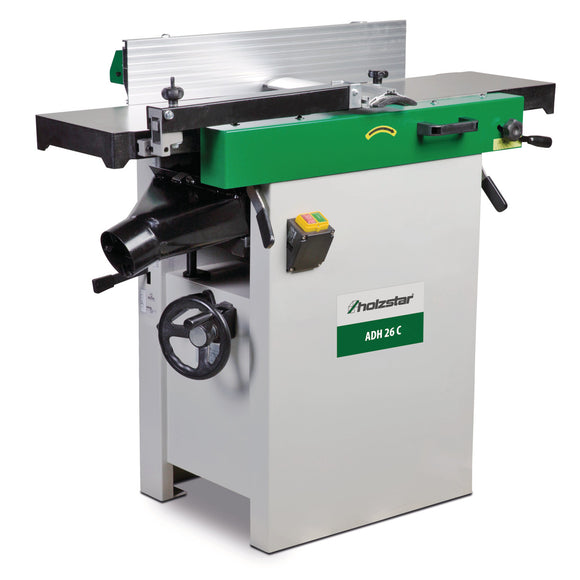

Surface and thickness planer ADH 26C Spiral (400 V).
  • Simple and precise adjustment of the chip removal for dimensionally accurate thickness planing
  • Automatic workpiece feed
  • Straight-toothed infeed roller and rubber-coated outfeed roller for an even feed without damaging the workpiece

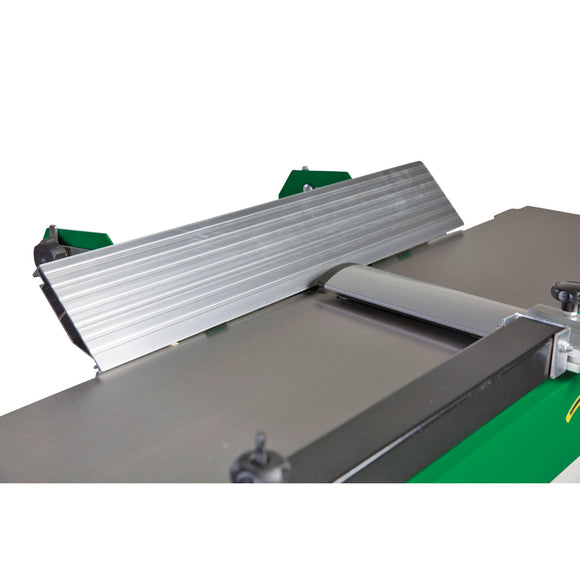

  • Easily adjustable aluminum dressing fence, tiltable from 90° to +45°
  • Large dressing table made from ribbed die-cast aluminum
  • Large thicknessing table made of gray cast iron with polished surface

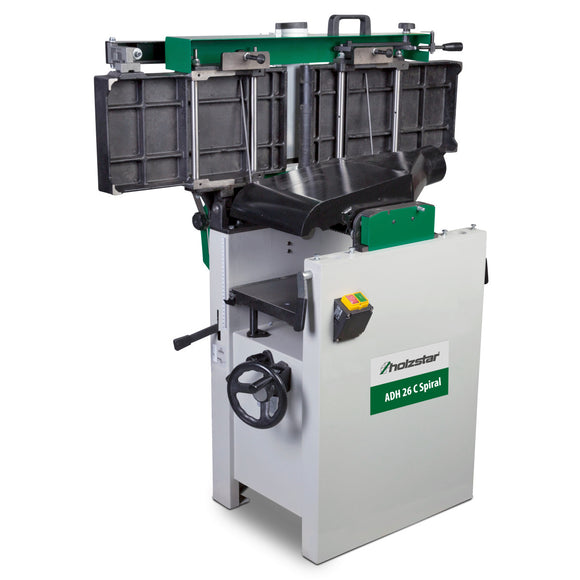

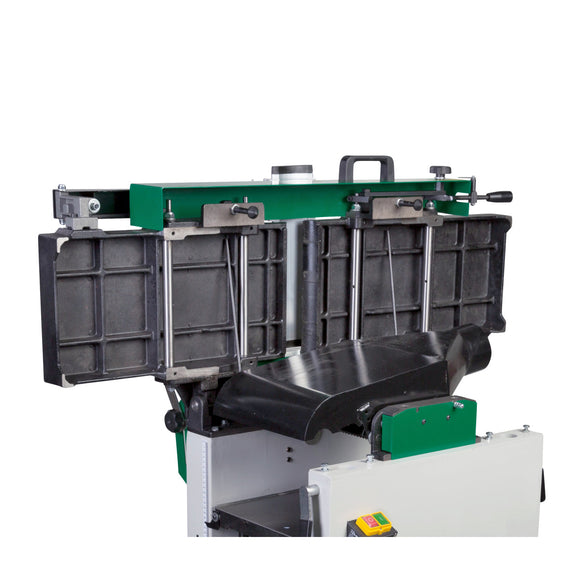

  • Integrated, fold-down chip extraction hood


.
  • Absorbed motor power 2.2 kW
  • Extraction port diameter joints 100 mm
  • Extraction port diameter thickness 100 mm
  • Feed speed 5.5 m/min
  • Frequency 50 Hz
  • Height 960 mm
  • Infeed table length 1120 mm
  • Infeed table width 275 mm
  • Length 1120 mm
  • Max. cutting depth of joints 3 mm
  • Max. cutting depth thickness 3 mm
  • Max. planing width 258 mm
  • Net weight 170 mm
  • Number of planing blades 44
  • Output power 1.7 kW
  • Planing shaft diameter 70 mm
  • Planing shaft speed 5200 min¯¹
  • Planing stop pivoting range 90 - 45 °
  • Supply voltage 400 V
  • Thicknessing table length 545 mm
  • Thicknessing table width 258 mm
  • Width 630 mm
  • Working height 830 mm
  • Working height max. thickness 225 mm
  • Working height min. thickness 5 mm
