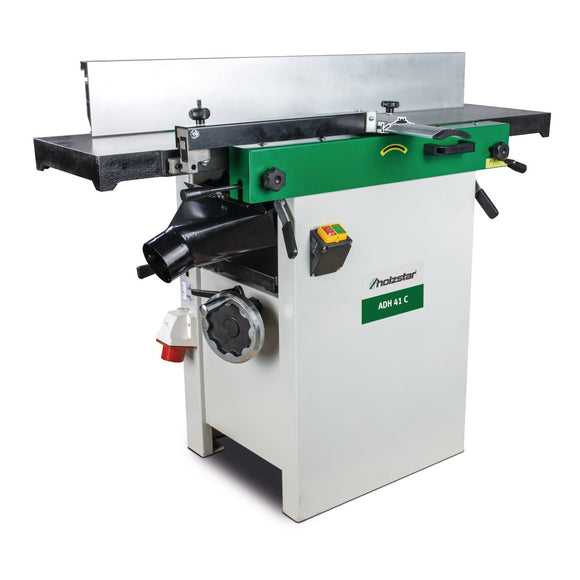

Surface and thickness planer ADH 41C

€3.602,67 EUR (€2.929,00 excl.Vat)

Tax includedShipping calculated at checkout

SKU: 5904041 Barcode: 4036351248941

14 Day
Return Policy

Warranty

12 months

Fast
Delivery

Sold Out
Description Features Delivery contents Shipping

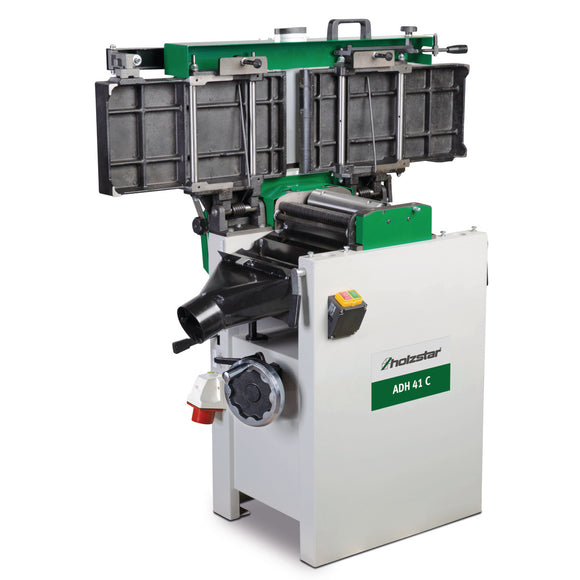

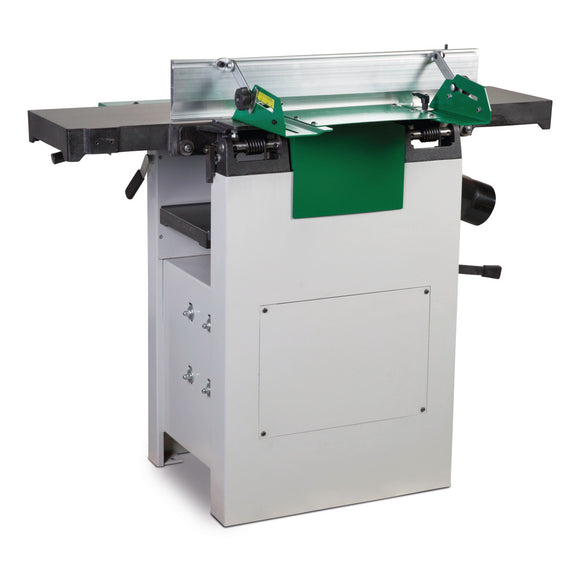

Surface and thickness planer ADH 41C.
  • For angular jointing (90°) and precise planing of solid wood boards, planks and strips
  • Simple and precise adjustment of the chip removal for accurate thickness planing
  • Table height adjustment is simple and convenient via a handwheel

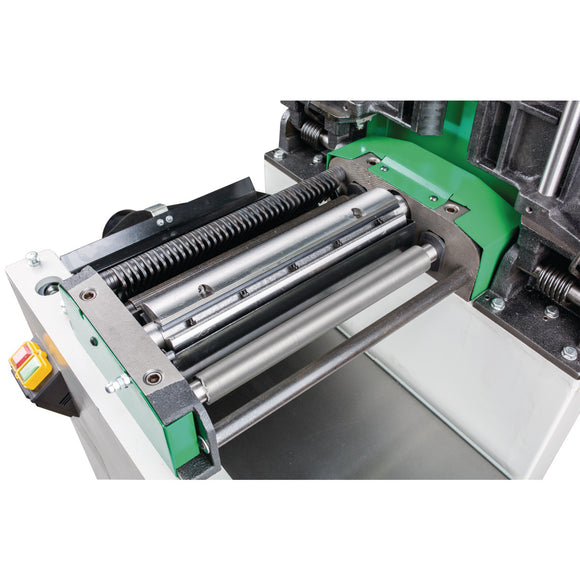

  • Automatic workpiece feed

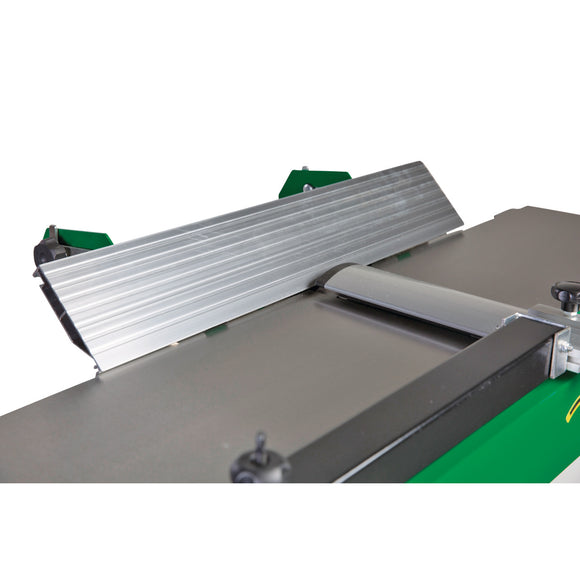

  • Easily adjustable aluminum planing fence, tiltable from 90° to +45
  • Large dressing table made from ribbed die-cast aluminum

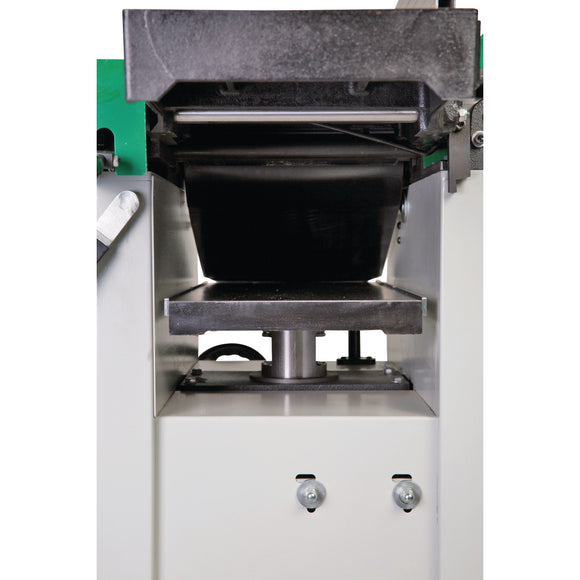

  • Large thicknessing table made of gray cast iron with polished surface

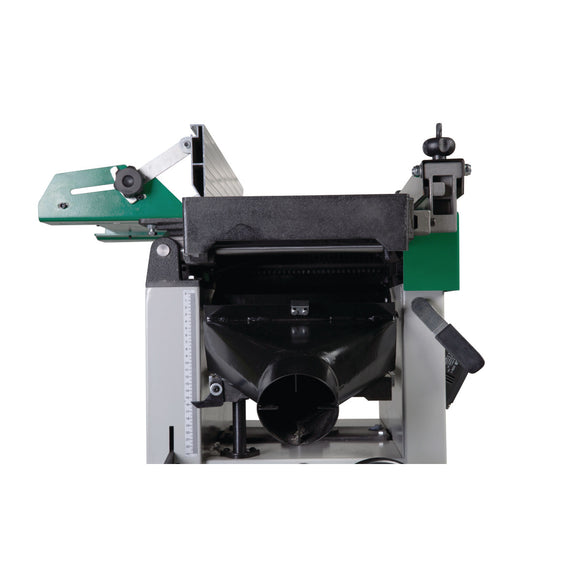

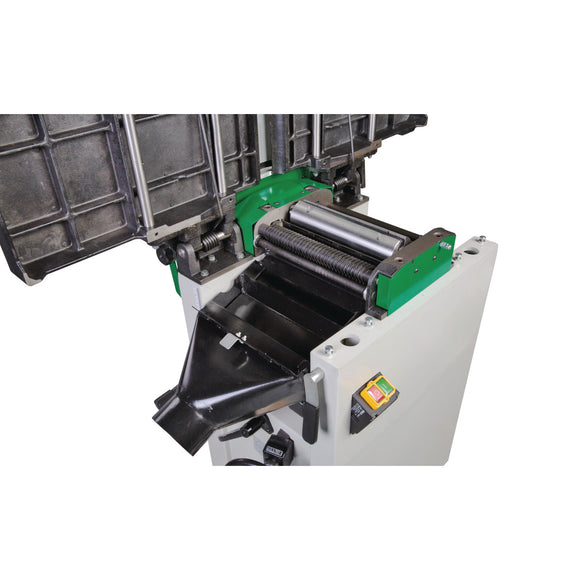

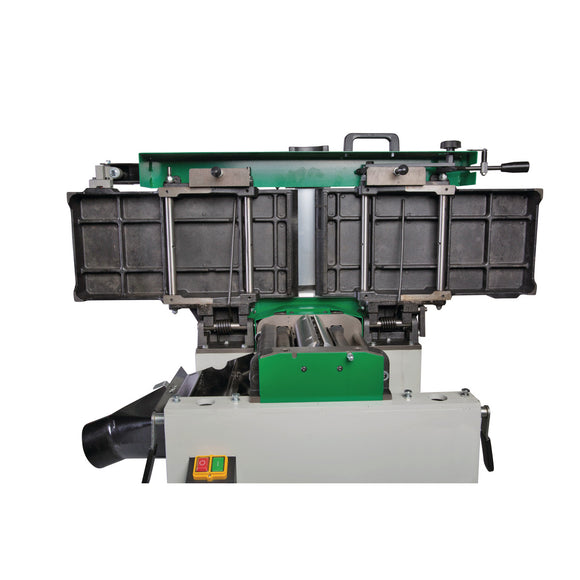

  • Integrated, fold-down chip extraction hood


.
  • Absorbed motor power 3.73 kW
  • Extraction port diameter joints 120 mm
  • Extraction port diameter thickness 120 mm
  • Feed speed 7 m/min
  • Frequency 50 Hz
  • Height 1010 mm
  • Infeed table length 1640 mm
  • Infeed table width 425 mm
  • Length 1620 mm
  • Max. cutting depth of joints 3 mm
  • Max. cutting depth thickness 3 mm
  • Max. planing width 408 mm
  • Motor power 3,0 kW
  • Net weight 260 kg

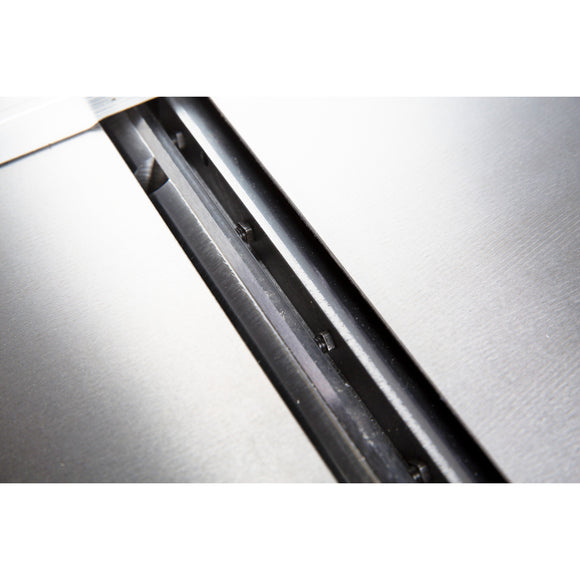

  • Number of planing blades 3 St
  • Planing shaft diameter 70 mm
  • Planing shaft speed 5200 min¯¹
  • Planing stop pivoting range 90 – 45 °
  • Supply voltage 400 V
  • Thicknessing table length 600 mm
  • Thicknessing table width 408 mm
  • Width 920 mm
  • Working height 850 mm
  • Working height max. thickness 225 mm
  • Working height min. thickness 5 mm

Add content using the options to the left

Shipping to Ireland & UK.

To see the exact shipping price for this product Add the product to cart. Then add your location and other details for the shop to calculate shipping costs to you.

Our two rates are €10.00 for shipments up to 30kg and the €60 for all shipments over 30kg weight.

€10 is via DPD and the €60 is via pallet express.

Free shipping on all online orders over €100.00

You can also pick up an item for free from our Longford store.

All orders (stock items) for Standard delivery are normally despatched within one to two working days from clearance of payment.

We expect delivery to be within 2 to 5 working days thereafter.

Standard Delivery will be by Courier service for orders up to 30kg in weight.

Knife setting gauge Knife setting gauge - 0

Knife setting gauge

Holzstar

€6,03 EUR
Enquire
Reversible planing knife conversion kit 410 x 18.6 x 1 mm Standard Reversible planing knife conversion kit 410 x 18.6 x 1 mm Standard - 0

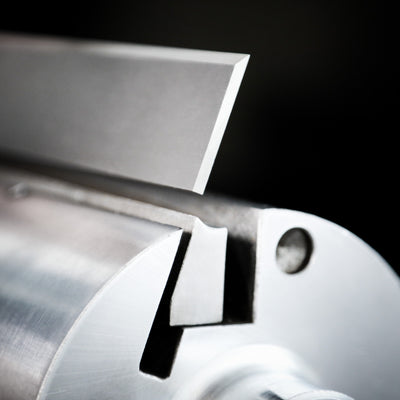

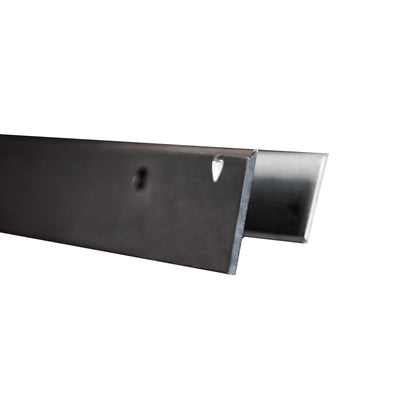

Reversible planing knife conversion kit 410 x 18.6 x 1 mm Standard

Holzkraft

€414,39 EUR
Enquire
Replacement set planer knife 410 x 25 x 3.15 mm Tri HSS M42 (3 pieces) Replacement set planer knife 410 x 25 x 3.15 mm Tri HSS M42 (3 pieces) - 0

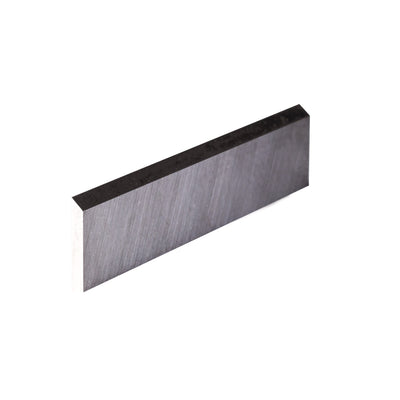

Replacement set planer knife 410 x 25 x 3.15 mm Tri HSS M42 (3 pieces)
